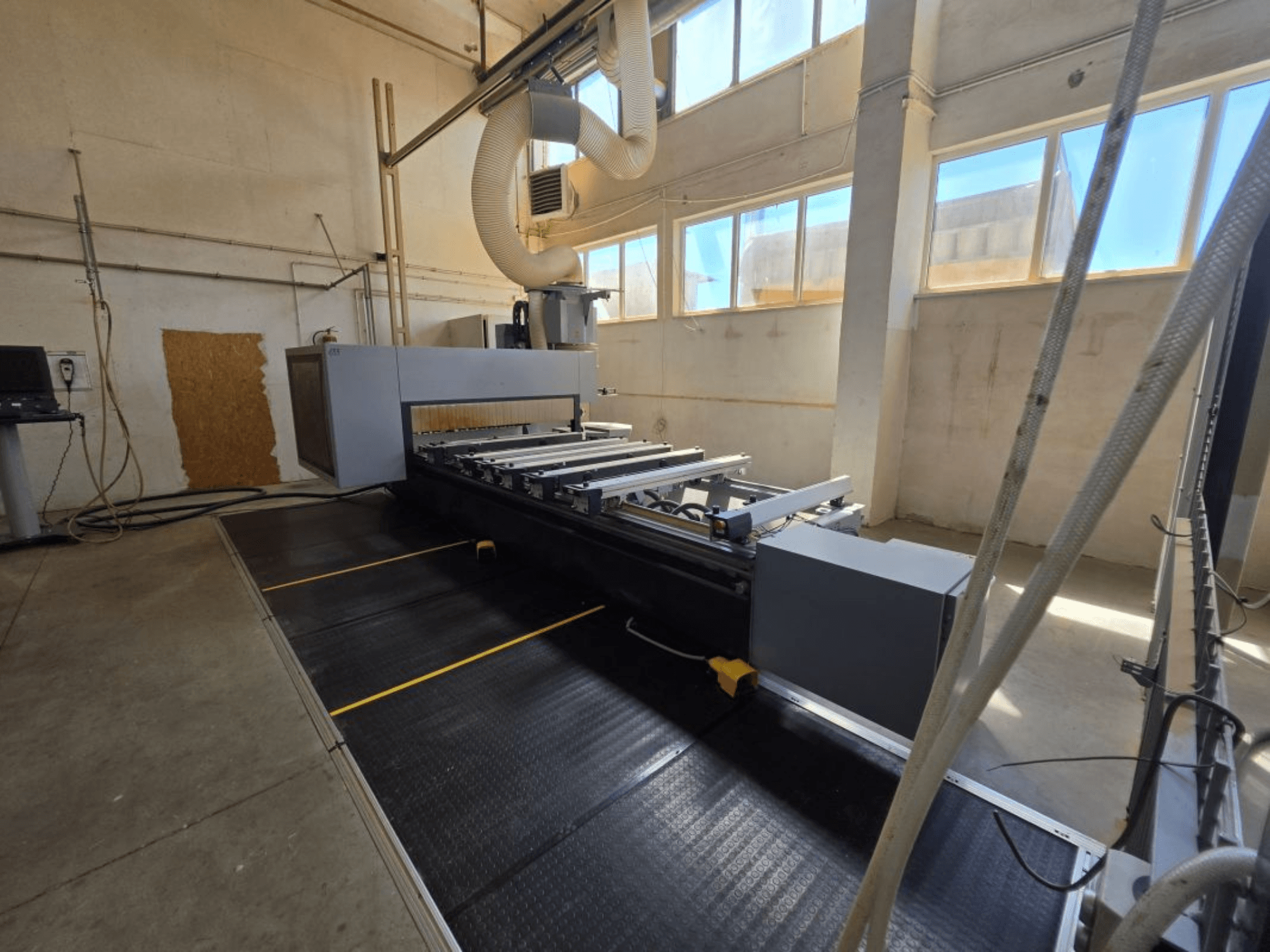

FORMAT4 - PROFIT H350 16.30PL-CNC-FOR-2017-00002

• Working hours: 9,370 h

• Construction: Heavy-duty welded steel frame; dual-driven moving gantry

• Power/Electrics: 3x400 V, 50–60 Hz

• CNC software: WoodFlash suite (control panel, tool database, program editor, 2D simulator, 3D preview, DXF import, CAD functions, parametric/absolute/incremental programming, pocket milling, engraving, sequence optimization, virtual planes, subprograms)

• Controls and operator interface:

  • CNC panel for full machine control

  • Mobile operator terminal with 24" LED monitor, keyboard/mouse, USB

  • Handheld feed control (feed override, E-stop, manual feed)

• Working area and travels:

  • Working area: X 3000 mm, Y 1550 mm

  • Z clearance height: 150 mm

• Main spindle (5-axis):

  • 5-axis electrospindle with Cardan joint, liquid cooled, ceramic bearings, R/L rotation

  • Power 12 kW (S6), 1,000–24,000 rpm

  • Tool holder HSK F63

  • Max tool weight 6 kg; max saw blade Ø 350 mm

  • Integrated aggregate holder; electrically controlled extraction hood

• Axis and motion system:

  • Dual-driven gantry

  • X: helical rack & pinion, hardened linear guides

  • Y: ball screw, hardened linear guides

  • Z: ball screw, hardened linear guides

  • Automatic central lubrication

• Tool magazines:

  • Linear: 12 positions, aggregate pickup; max tool Ø 250 mm, length 240 mm

  • Rotary (on gantry): 18 positions; max tool Ø 250 mm, length 280 mm

  • Saw blade pickup station: max blade Ø 350 mm

• Drilling and grooving:

  • DH18 6H 2S drilling head:

    • 12 vertical spindles (7X / 5Y), 6 horizontal spindles (4X / 2Y)

    • Drill stroke/length max 70 mm; tool holder Ø 10 mm; individually driven

  • Grooving saws: 2 blades (1X / 1Y), max Ø 120 mm, body thickness max 5 mm, up to 6,000 rpm

• Vacuum and clamping:

  • Console table with 6 consoles; front/rear programmable stops

  • Wireless dual-circuit vacuum system; cup height 100 mm

  • Pneumatic console locking; 4 movable side stops; additional support arms

  • Vacuum pump capacity: 90 m³/h @50 Hz, 108 m³/h @60 Hz

  • Additional vacuum equipment: left/right template connections; controlled compressed air for frame clamps; independent vacuum/air control per console

• Safety:

  • CE safety system, light curtain, emergency stop system

  • Safety fence on left side, door safety monitoring

  • Vacuum and compressed air sensors

  • Additional safety mat system

Additional equipment

• Additional A-axis and C-axis mechanical locking system

• Remote service package via internet

• Cabinet body generator software (3D cabinet design package)

• Service tool kit

• Documentation: Polish manuals; WoodFlash installation manual

• Additional support arms for consoles

• Included accessories:

  • 11 vacuum cups FA 140 × 115 × 100 mm

  • 4 vacuum cups FA 125 × 75 × 100 mm

Note: Technical data provided for information only and not binding.
