WEINIG / DIMTER - Unicontrol 10PL-CNC-WEI-1997-00001

Rs. 2,201,138
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

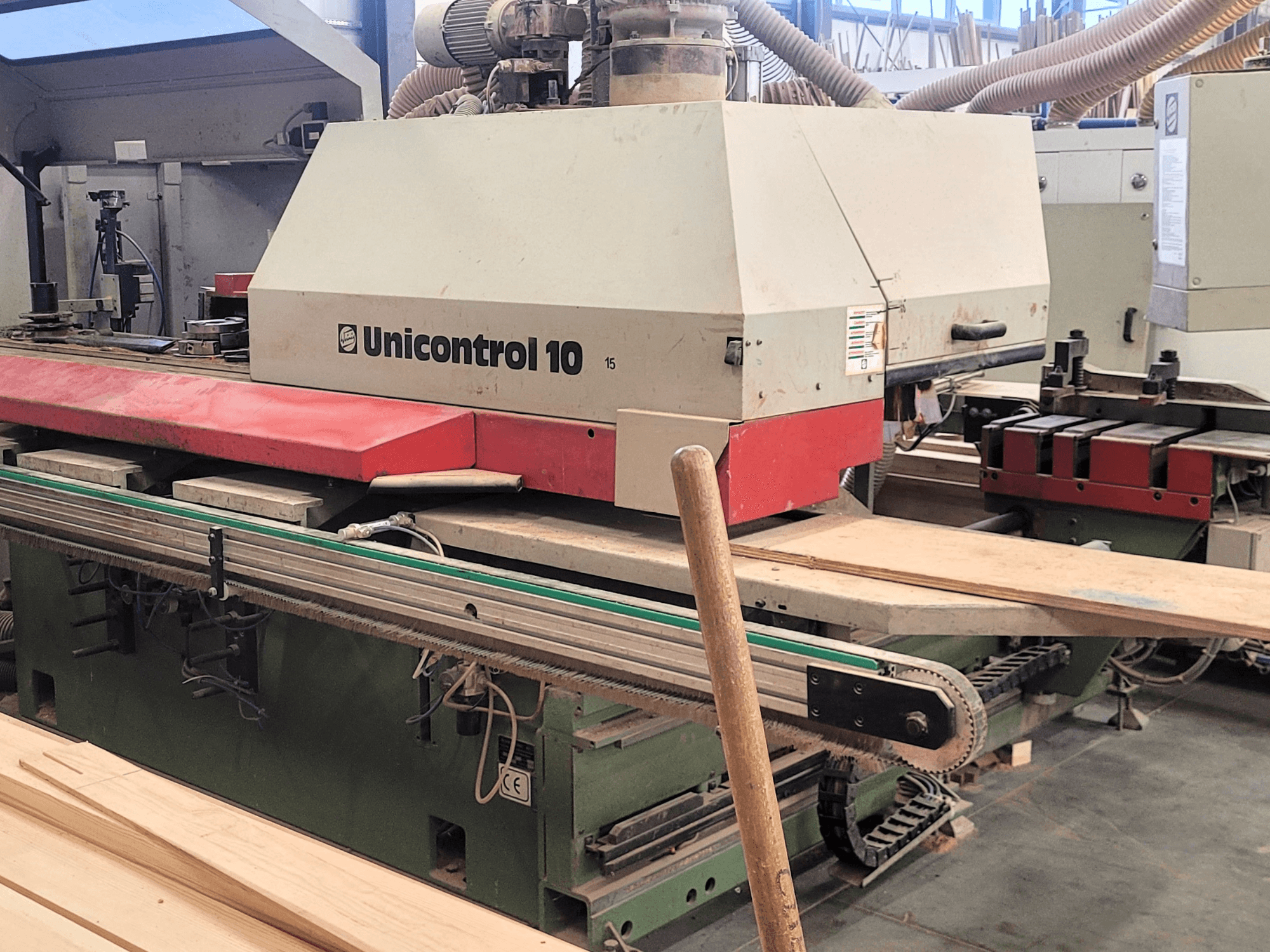

CNC processing center manufactured in 1997. This WEINIG / DIMTER Unicontrol 10 features a maximum workpiece length of 3,600 mm and a maximum workpiece height of 100 mm. It includes a powerful cross-cut saw with a spindle speed of up to 3,000 rpm and a tenoning spindle motor power of 15 kW. If you are looking to get high-quality CNC processing capabilities, consider the WEINIG / DIMTER Unicontrol 10 machine we have for sale. Contact us for further details.

Overview

  • brand: WEINIG / DIMTER
  • year: 1997
  • MODEL: Unicontrol 10
  • application type: CNC Wood Machining
  • Location: Poland
  • machine type: CNC Processing Center
  • control unit brand: SIEMENS

Technical Information - WEINIG / DIMTER Unicontrol 10

Control Unit

  • Control Brand: SIEMENS
  • Control Model: WS 400-20

Movement

  • X-axis Travel: 3000 mm
  • Y-axis Travel: 100 mm
  • Z-axis Travel: 142 mm

Additional Information

  • Max. workpiece height: 100 mm

  • Min. workpiece height: 40 mm

  • Min. workpiece width: 40 mm

  • Max. workpiece width: 140 mm

  • Max. workpiece length with CNC stop: 3,500–3,600 mm

  • X-axis stroke: 3,000–3,500 mm (version dependent)

  • Cross-cut saw motor power: 3.7 kW

  • Cross-cut saw spindle speed: 2,800–3,000 rpm

  • Cross-cut saw max. tool diameter: 400 mm

  • Cross-cut saw spindle diameter: 40 mm

  • Tenoning/slotting spindle quantity: 2 pcs

  • Tenoning spindle diameter: 50 mm

  • Tenoning spindle clamping length: 400–640 mm

  • Tenoning spindle max. tool diameter: 400 mm

  • Tenoning spindle motor power 1: 11 kW

  • Tenoning spindle motor power 2: 15 kW

  • Tenoning spindle speed: 2,900–3,250 rpm

  • Profiling spindle quantity (vertical): 2–3 pcs

  • Profiling spindle diameter: 50 mm

  • Profiling spindle clamping length: 320–400 mm

  • Profiling spindle max. tool diameter (flight circle): 232 mm

  • Profiling spindle motor power: 11 kW (each)

  • Profiling spindle speed: 6,000 rpm

  • Horizontal profiling unit (top) motor power: 3 kW

  • Horizontal profiling unit spindle diameter: 40 mm

  • Horizontal profiling unit max. tool diameter: 130 mm

  • Horizontal profiling unit speed: 5,850 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
