- ➤ Used HELLER MCi 25 For Sale | gindumac.com

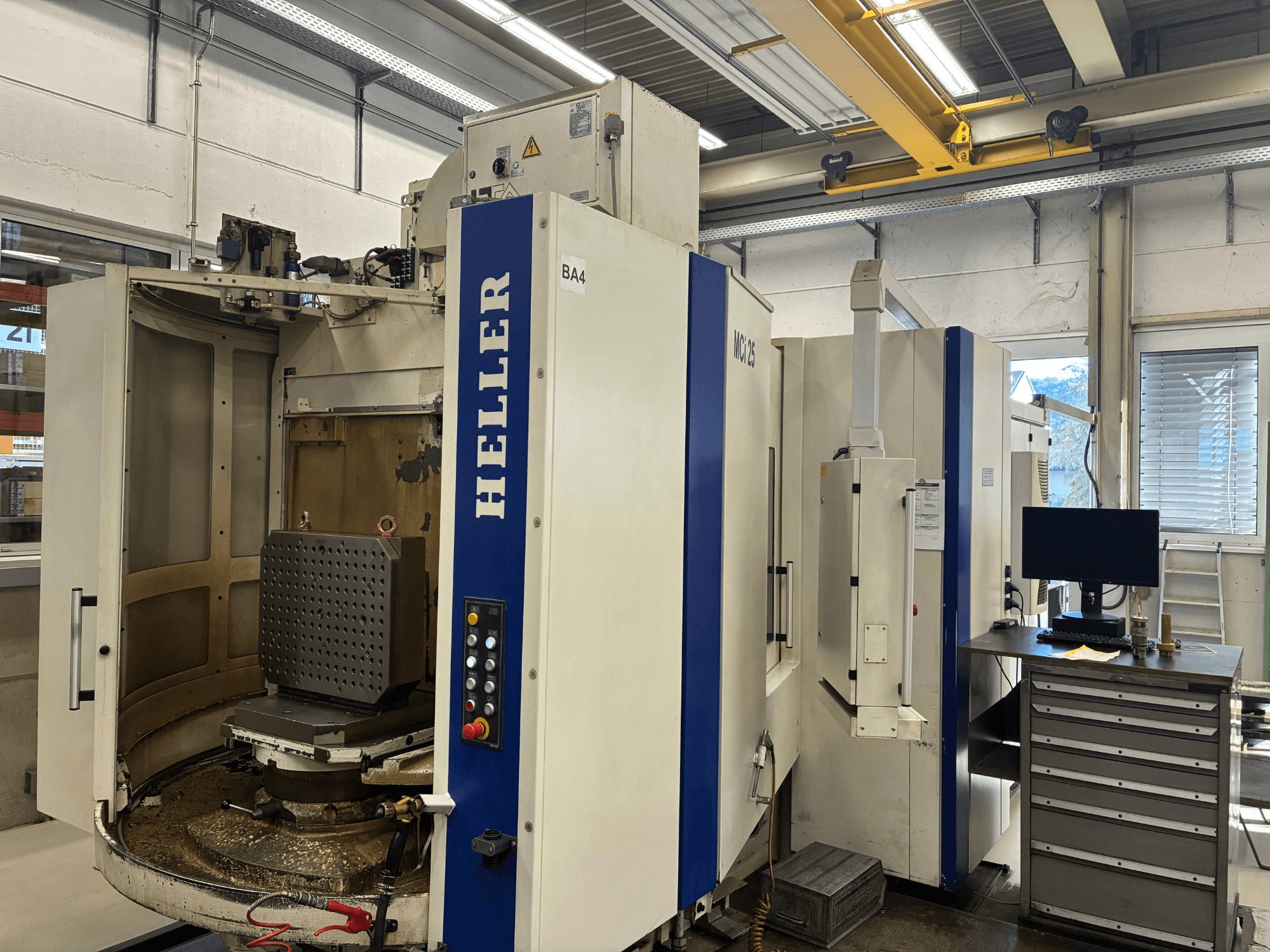

This 4-axis HELLER MCi 25 was manufactured in 2003. It features a generous X, Y, and Z-axis travel of 800 mm each, along with a B-axis capable of 360° indexing. The machine is equipped with a tool magazine holding 80 slots and supports a total of 6 pallets. If you are looking to get high-quality machining capabilities, consider the HELLER MCi 25 horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: HELLER
- year: 2003
- MODEL: MCi 25
- production hours: 54000
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - HELLER MCi 25
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Movement
- Number of Axes: 4
- X-axis Travel: 800 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Number of Tools: 80
- Taper Size: HSK 63
Additional Information
B-axis: 360° (indexing/rundtisch)
Tool magazine: 80 slots
Pallet quantity: 6 total (2 in use, 4 standby)
Operating hours: approx. 2,700–3,000 hours per year (counter reported defective)
Total estimated hours: approx. 54,000–60,000 (based on 2-shift operation since 2006)
Coolant volume: 1,500 liters
Voltage: 400 V
Frequency: 50 Hz
Full load current: 100 A
Connection load: 65 kVA
Status: Fully functional, under power, currently in production
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
