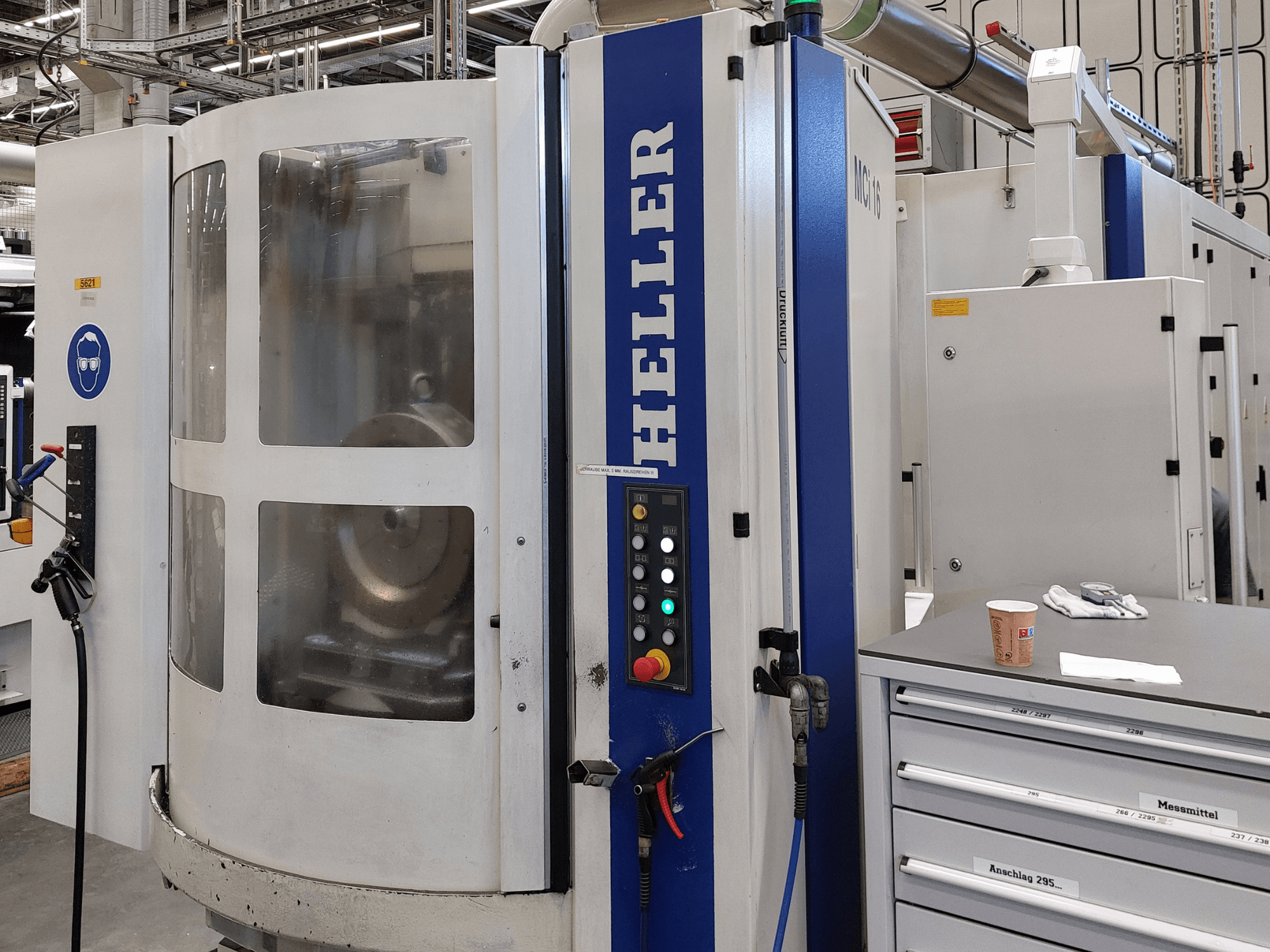

HELLER - MCI 16DE-MIL-HEL-2004-00003

- Voltage: 400 V

- Frequency: 50 Hz

- Nominal Current: 99 A

- Total Connected Load: approx. 69 kVA

- Feed Rates (X, Y, Z): 1 - 60,000 mm/min

- Rapid Traverse (X, Y, Z): 60,000 mm/min

- Acceleration (X, Y, Z): 10.0 m/s²

- Rotary Table Indexing Precision: 360 x 1°, precision 6"

- Maximum clamping force of the rotary table: 500 daN

- Rotary Table Max Tangential Torque: 10,000 Nm

- Rotary Table Max Tilting Moment: 8,000 Nm

- B-Axis Speed: 40 rpm

- Pallet Changer Size: 400 x 500 mm, 61 x M12 mounting thread

- Tool Chain Magazine Capacity: 40 tool pockets

- Max Tool Diameter: 72 mm (all pockets occupied) / 150 mm (with free adjacent pockets)

- Max Tool Length: 320 mm

- Max Tool Weight: 12 daN

- Spindle Max Power (S6-40%): 38 kW (from 1500 rpm)

- Spindle Max Torque (S6-40%): 240 Nm (up to 1500 rpm)

- Measuring System: Direct with linear scales

- Positioning Tolerance: 0.007 mm

- Coolant Capacity: approx. 1,500 L

- Optional Equipment / Features: Central cooling unit for spindle and cabinet, run-out inspection device RLE1, mechanical drill breakage control, coolant lubricant system with chip conveyor, Renishaw probe, manual rotatable workpiece setup station (4x90°)

- Included Components: Without clamping device, including 2x machine pallets
