HAITIAN JU5500III

Photo Gallery

HAITIAN - JU5500IIIRO-INJ-HAI-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used HAITIAN JU5500III For Sale | gindumac.com

Show in original language

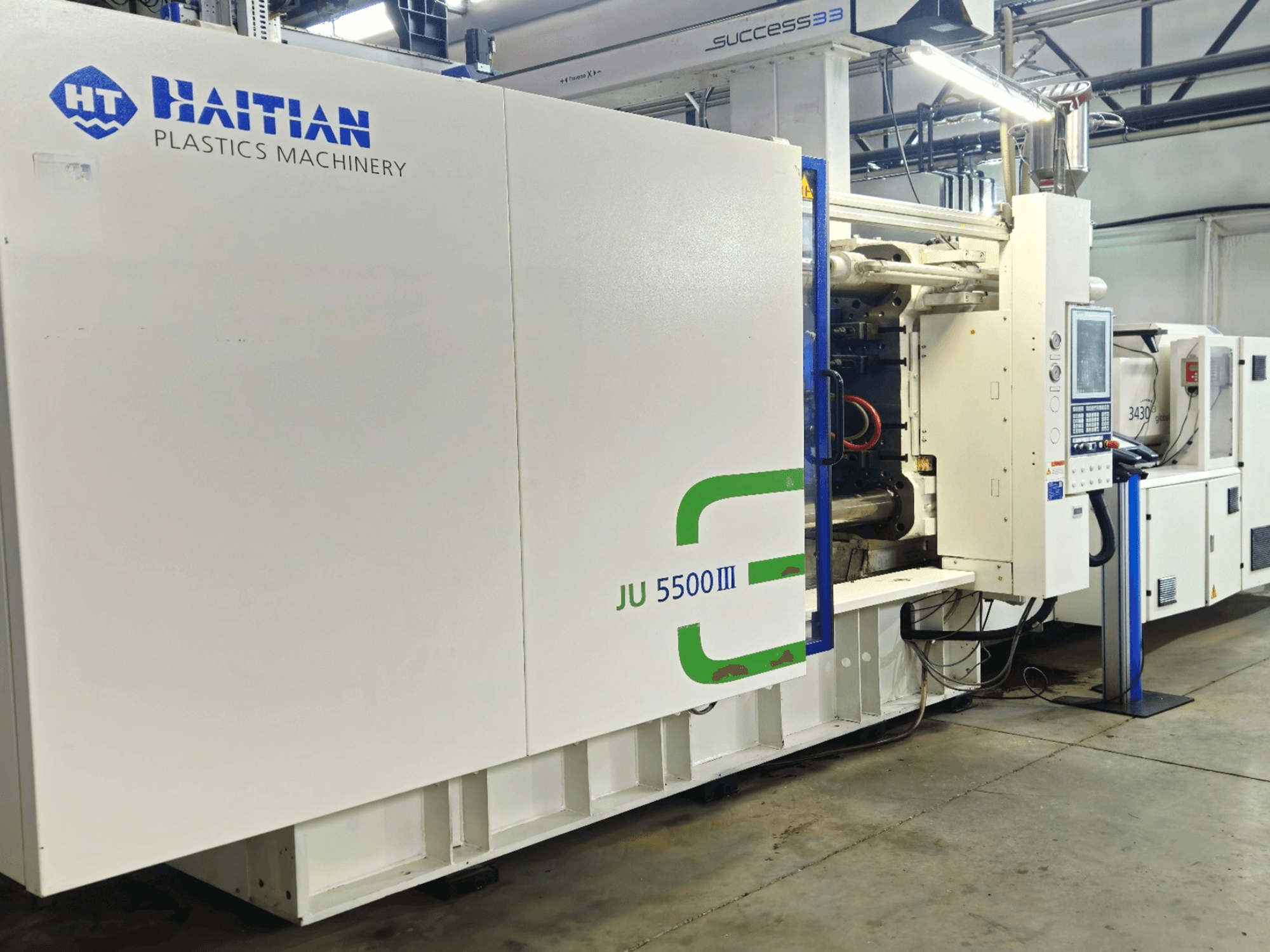

This HAITIAN JU5500III was manufactured in 2021. A hydraulic injection moulding machine with a clamping force of 4,500 kN and a maximum injection volume of 1,239 cm³. Features a screw diameter of 80 mm and an opening stroke of 1,250 mm. Equipped with a robot interface, Euromap 67, and still in production. Consider the opportunity to buy this HAITIAN JU5500III hydraulic injection moulding machine. Contact us for more information about this machine.

Overview

brand: HAITIAN
year: 2021
MODEL: JU5500III
production hours: 23125
application type: Injection Moulding
Location: Romania
machine type: Hydraulic Injection Moulding Machine

Technical Information - HAITIAN JU5500III

Dimensions

Machine Height: 2160 mm
Machine Length: 5871 mm
Machine Weight: 22000 kg

Technical Specification

Clamping Force: 4500 kN
Screw Diameter: 80 mm

Additional Information

Maximum injection volume: 1,239 cm³
Mold height: min. 350 mm / max. 1,050 mm
Opening stroke: 1,250 mm
Platen dimensions (W x L): 1,090 × 1,180 mm
Tie-bar distance (W x L): 1,090 × 1,180 mm
Motor power: 59 kW
Heater power: 36.4 kW
Injection nozzle radius (tip): R10
Centering ring diameter: 200 mm
Electrical connection pins: 32
Robot interface: Euromap 67
Operating hours: 23,125 h
Condition: Excellent
Status: In production

Additional equipment

Robot: Included (model not specified)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
