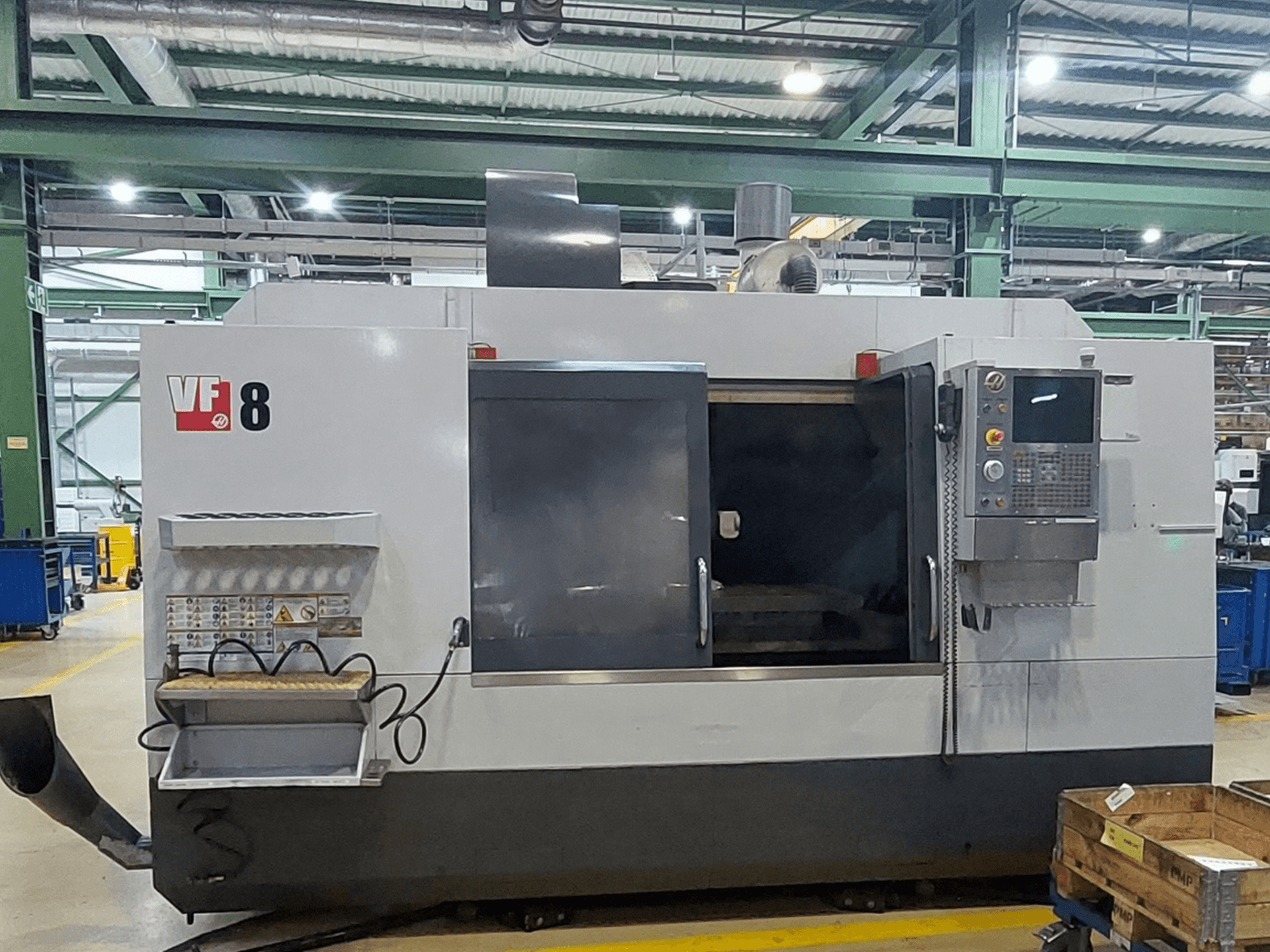

HAAS - VF-8PL-MIL-HAA-2015-00004

• CE marking: Yes (per nameplate)

• CNC control

  • Haas CNC control, Classic generation

  • 15-inch colour LCD

  • USB port

  • Program memory: 1 MB

  • Memory lock keyswitch

  • Remote jog handle with colour display

• Axis travels and feed rates

  • Spindle nose to table distance: 102–864 mm

  • Rapid traverse (X/Y/Z): 15.2 m/min

  • Maximum cutting feed rate: 12.7 m/min

• Worktable

  • Table dimensions: 1626 × 914 mm

  • Max evenly distributed table load: 1814 kg

• Spindle

  • Max torque: 122 Nm at 2000 rpm

  • Drive: Inline direct drive with vector control

  • Bearing lubrication: Air/oil injection

  • Cooling: Liquid-cooled

  • Rigid tapping

• Tool changer

  • Side-mounted, double arm

  • Max tool diameter (all pockets filled): 76 mm

  • Max tool diameter (adjacent pockets empty): 152 mm

  • Max tool length from gauge line: 406 mm

  • Tool-to-tool: 2.8 s

  • Chip-to-chip: 3.6 s

• Coolant

  • Flood coolant system

  • Coolant tank capacity: 360 litres

  • Programmable coolant nozzle

• Electrical and pneumatic

  • Continuous power consumption: 28 kVA

  • Peak power consumption: 40 kVA

  • Compressed-air consumption: 113 l/min at 6.9 bar

  • Air supply line: 3/8 inch (≈10 mm)

• Dimensions and weight

  • Width including chip auger discharge: 4801 mm

  • Overall depth: ≈3480 mm

  • Height with 24 + 1 tool changer: 2972 mm

  • Door opening width: 1549 mm

  • Approx. shipping dimensions on pallet: 4900 × 3070 × 3300 mm

Additional equipment

• Automatic chip auger

• Included two-step operator platform: 1842 × 570 × 318 mm
