HAAS VF-4

Photo Gallery

HAAS - VF-4GB-MIL-HAA-2014-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ HAAS VF-4 Vertical Machining Center - Used

Show in original language

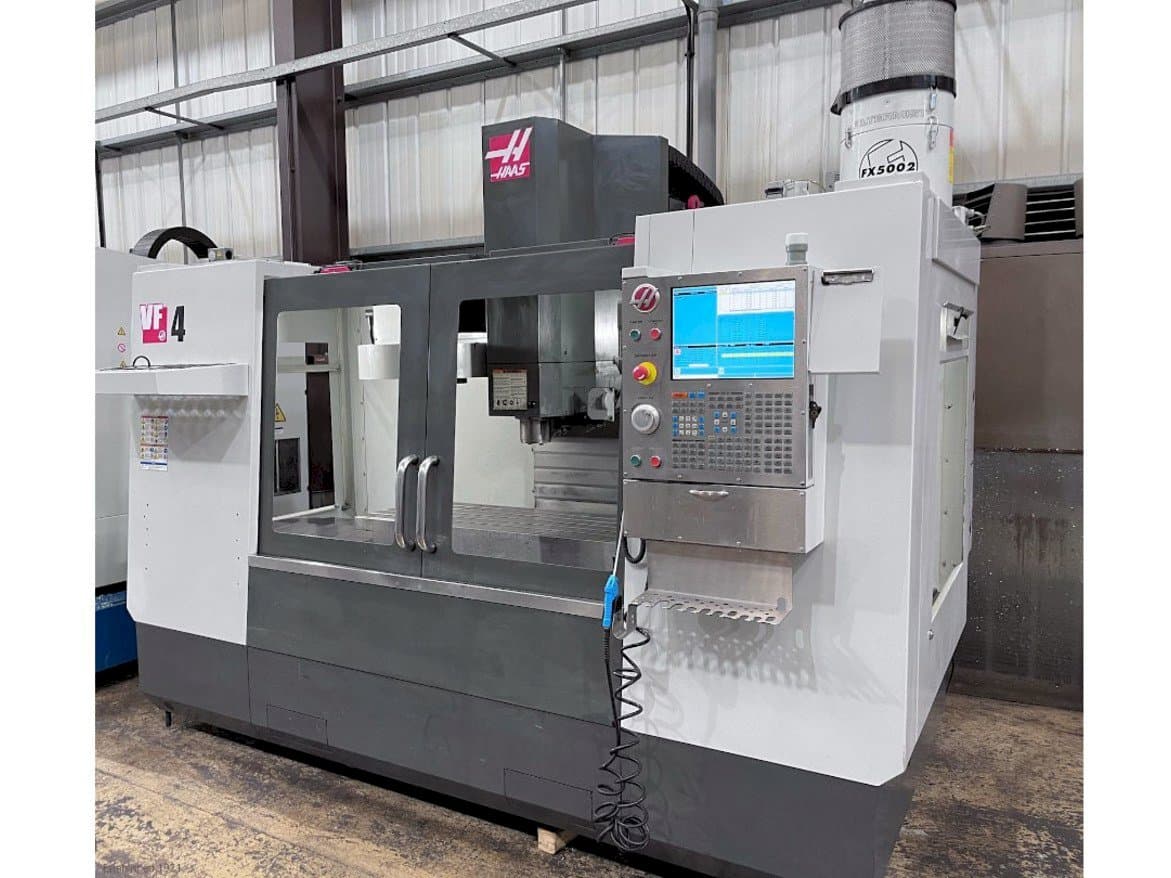

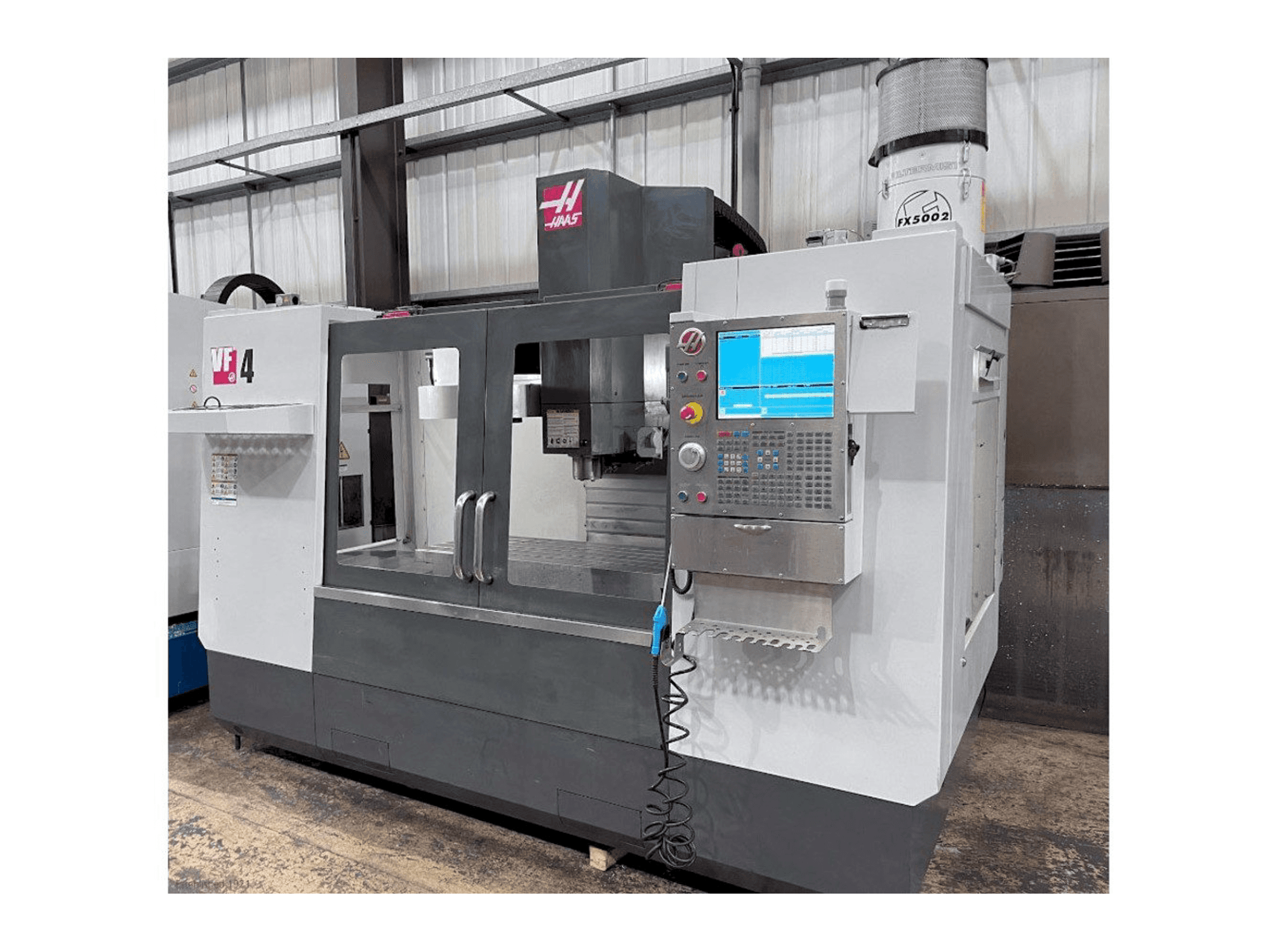

This HAAS VF-4 Vertical Machining center was manufactured in the year 2014 in the United States. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 8100 rpm, is in good condition and well maintained.

Overview

brand: HAAS
year: 2014
MODEL: VF-4
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-4

Control Unit

Control Brand: HAAS

Dimensions

Machine Depth: 2794 mm
Machine Height: 2985 mm
Machine Weight: 6033 kg
Table Length: 1324 mm
Table Width: 457 mm

Movement

Number of Axes: 3
X-axis Travel: 1270 mm
Y-axis Travel: 508 mm
Z-axis Travel: 635 mm

Technical Specification

Number of Tools: 20
Spindle Speed: 8100 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Good condition

Technical Machine Benefits

Min-max height under spindle 102-737 mm
Through spindle coolant
Spindle motor power 22. 4 kw
Swarf auger
Programmable coolant nozzle
Coolant, fume extractor
Usb port

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
