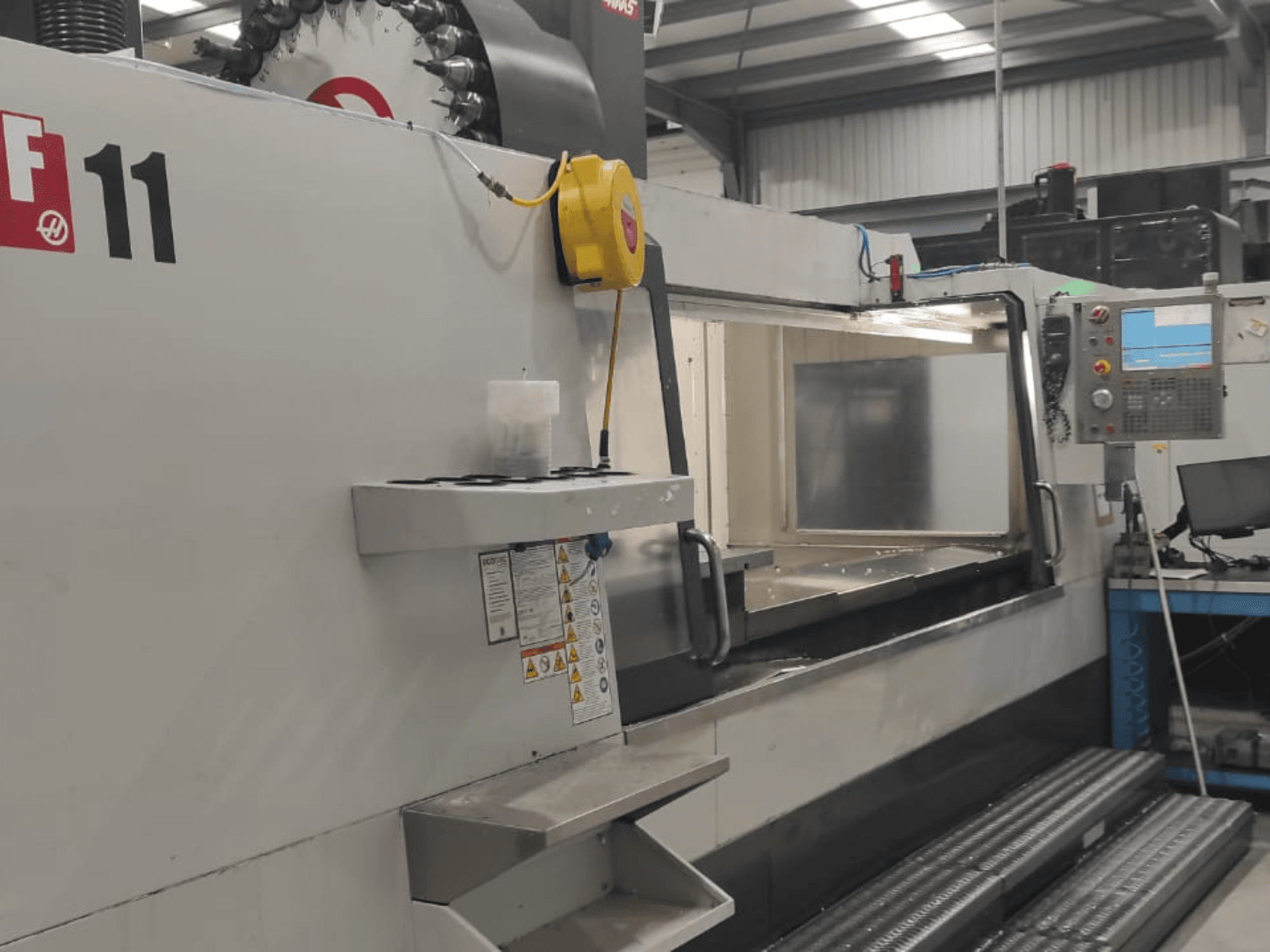

Machinery from Haas, model VF-11, shown from a front view with control panel, large work area, and safety labels visible.
Machinery from Haas, model VF-11, shown from a front view with control panel, large work area, and safety labels visible.

HAAS - VF 11/50 (2011)ES-MIL-HAA-2011-00002

Rs. 13,363,042
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HAAS VF 11/50 was manufactured in 2011. It features a robust CNC control, a large table surface of 3048 × 711 mm, and can handle a maximum load of 1814 kg. With X, Y, Z travels of 3048 mm, 1016 mm, and 762 mm respectively, it offers extensive working range. The spindle can reach up to 7500 rpm, and it includes a 30+1 random tool changer. Consider the opportunity to buy this HAAS VF 11/50 vertical machining centre. Contact us for more information.

Overview

  • brand: HAAS
  • year: 2011
  • MODEL: VF 11/50 (2011)
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • control unit brand: HAAS

Technical Information - HAAS VF 11/50 (2011)

Control Unit

  • Control Brand: HAAS

Dimensions

  • Machine Height: 3590 mm
  • Machine Length: 7320 mm
  • Machine Weight: 16914 kg
  • Table Load: 1814 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 3048 mm
  • Y-axis Travel: 1016 mm
  • Z-axis Travel: 762 mm

Technical Specification

  • Max. Tool Weight: 13.6 kg
  • Spindle Power: 22.4 kW
  • Spindle Speed: 7500 RPM

Additional Information

  • Table Surface: 3048 × 711 mm

  • Table Height from Floor: 850 mm

  • Working Acceleration: 9.1 m/min – 15.2 m/min

  • Tool Change Type: Random 30+1

  • Magazine Positions: 254 mm

  • Maximum Diameter with Adjacent/Alternate Tools: 102 mm – 254 mm

  • Maximum Tool Length: 406 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
