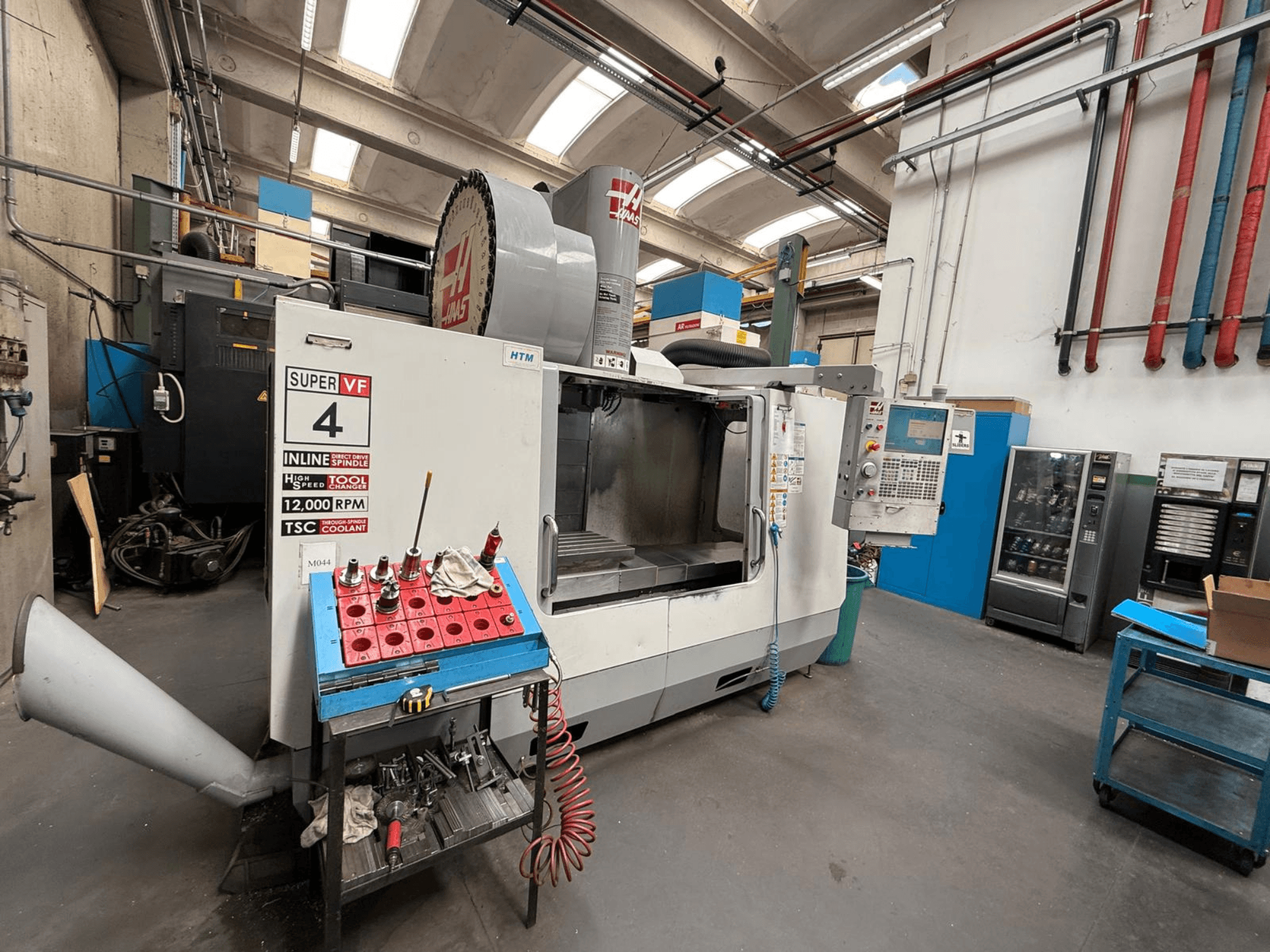

HAAS Super VF 4 CNC milling machine with a control panel, 12,000 RPM spindle, and tools on a blue storage rack, side view.
HAAS Super VF 4 CNC milling machine with a control panel, 12,000 RPM spindle, and tools on a blue storage rack, side view.

HAAS - VF-4SSIT-MIL-HAA-2008-00003

Rs. 6,156,654
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HAAS VF-4SS vertical machining center was manufactured in 2008. It features a 1270 × 508 × 635 mm travel range, 22.4 kW spindle power, and a maximum spindle speed of 12,000 rpm. The machine includes a 40 + 1 position tool changer and a high-speed machining package. If you are looking to get high-quality milling capabilities, consider the HAAS VF-4SS machine we have for sale. Contact us for more information.

Overview

  • brand: HAAS
  • year: 2008
  • MODEL: VF-4SS
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - HAAS VF-4SS

Movement

  • Number of Axes: 3
  • X-axis Travel: 1270 mm
  • Y-axis Travel: 508 mm
  • Z-axis Travel: 635 mm

Technical Specification

  • Spindle Power: 22.4 kW
  • Spindle Speed: 12000 RPM

Additional Information

  • Distance spindle–table: 102 mm

  • Tool holder taper: CT40 (DIN 69871)

  • Max cutting feed: 20.5 m/min

  • Rapid feed (X/Y/Z): 35.6 m/min

  • Tool changer type: Random vertical

  • Tool magazine capacity: 40 + 1 positions

  • Data interface: USB

  • Options/Features:

    • Through-spindle coolant system (21 bar)

    • 4th axis drive and wiring (prepared for 4th axis)

    • Intuitive programming system

    • Dual spindle orientation

    • Coordinate rotation system

    • Macro variables and scaling functions

    • High-speed machining package

Additional equipment

  • Screw-type chip conveyor

  • Auxiliary high-pressure filtration system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
