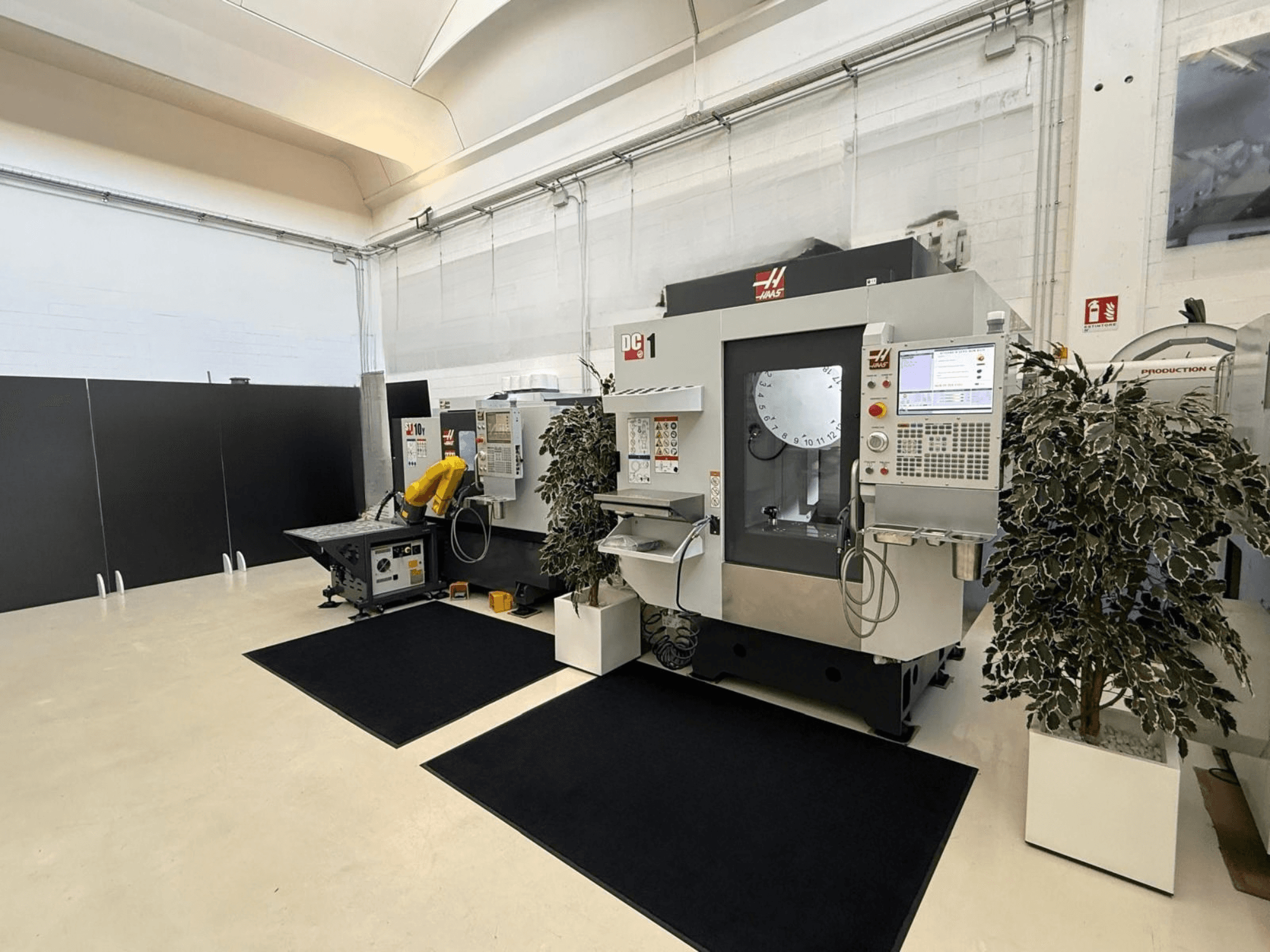

HAAS - DC-1IT-MIL-HAA-2024-00004

• Working hours: 0 (showroom machine)

• Spindle nose to table: max 18.9 in / 480 mm; min 5.9 in / 150 mm

• Spindle: max torque 14.0 ft-lbf @ 2500 rpm / 19.0 Nm @ 2500 rpm; inline direct-drive; taper BT30; grease-packed bearings; liquid-cooled

• Table: 27.6 in / 700 mm (L) x 16.5 in / 420 mm (W); T-slot width 0.550 in / 14 mm; T-slot center distance 4.92 in / 125 mm; 3 T-slots; max load 550 lb / 250 kg (evenly distributed)

• Feedrates: max cutting 1200 ipm / 30.5 m/min; rapid (X/Y/Z) 1890 ipm / 48.0 m/min

• Max thrust (X/Y/Z): 2054 lbf / 9137 N

• Tool changer: turret; capacity 21; max tool dia (full) 2.4 in / 60 mm; max tool dia (adjacent empty) 3.1 in / 80 mm; max tool length 7.90 in / 200 mm; tool-to-tool 1.50 s; chip-to-chip 2.50 s

• Max tapping speed: 5000 rpm

• Coolant capacity: 40 gal / 151 L

• Air: 4 scfm @ 100 psi / 113.0 L/min @ 6.9 bar; inline air hose 3/8 in; air coupler 3/8 in; min pressure 80 psi / 5.5 bar

• Power: 3-phase 220 VAC (FLA 40 A) or 440 VAC (FLA 20 A)

• Shipping: 100.0 in x 79.0 in x 100.0 in / 254 cm x 201 cm x 254 cm; weight 7040 lb / 3402.0 kg

Additional equipment

• CW-5200 industrial chiller

• Chip conveyor
