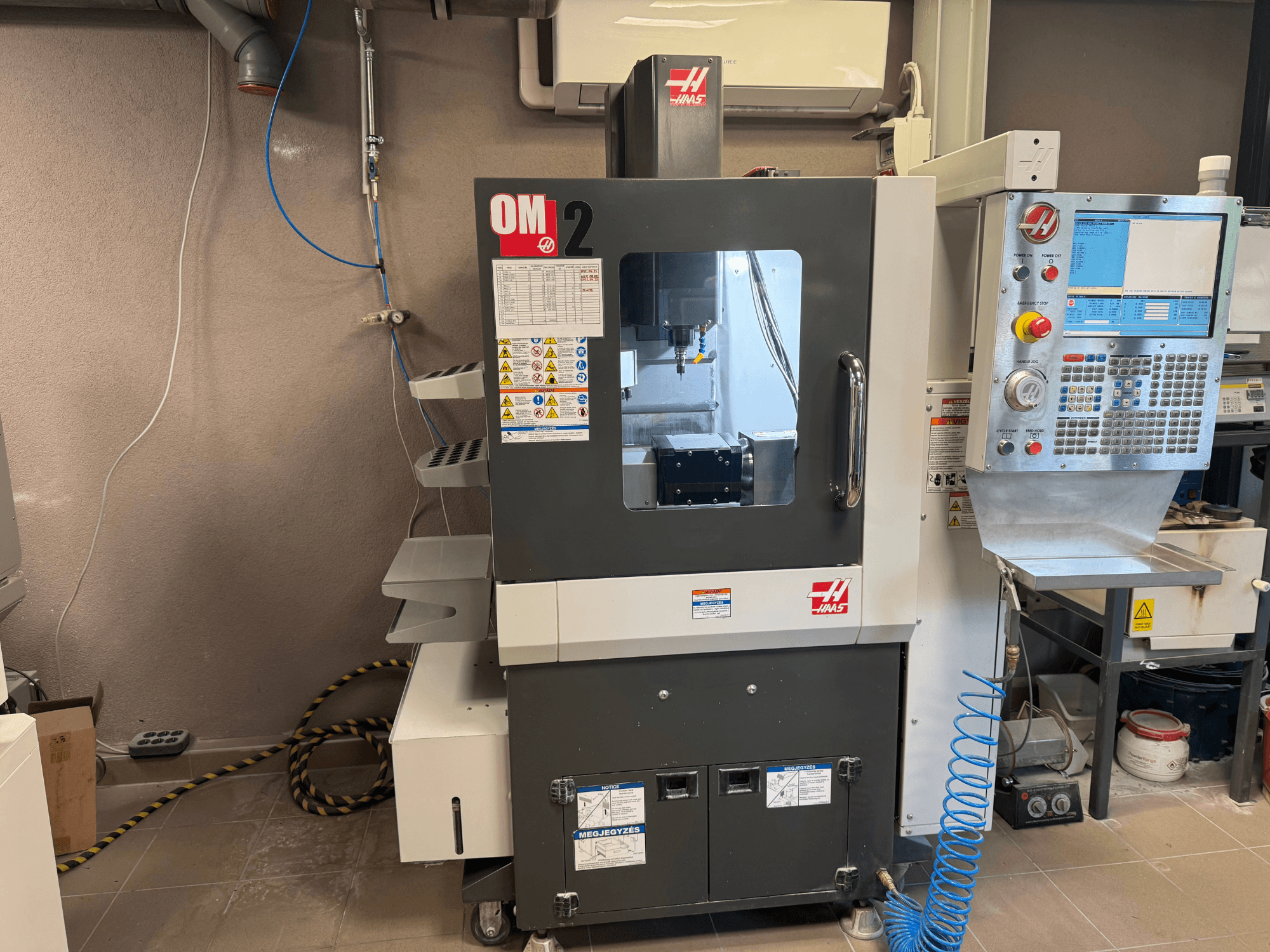

This 5-axis HAAS OM-2A was manufactured in 2013 and features a 3+2 configuration, with a spindle speed of 30,000 RPM and a motor power of 3.7 kW. It includes a 20-tool automatic tool changer and can handle a maximum table load of 68 kg. If you are looking to get high-quality milling capabilities, consider the HAAS OM-2A machine we have for sale. Contact us for more information.
Overview
- brand: HAAS
- year: 2013
- MODEL: OM-2A
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
Technical Information - HAAS OM-2A
Dimensions
- Machine Weight: 680 kg
- Table Load: 68 kg
Movement
- Number of Axes: 5
- X-axis Travel: 304 mm
- Y-axis Travel: 254 mm
- Z-axis Travel: 305 mm
Technical Specification
- Spindle Power: 3.7 kW
- Spindle Speed: 30000 RPM
Additional Information
Working hours: approx. 1,400 (machine still occasionally in use; exact number may increase)
Condition: very good; in good working condition
Axes: 5-axis (3+2 configuration)
Table size: 508 x 254 mm
Spindle taper: ISO 20
ATC capacity: 20 tools
Maintenance/upgrade: batteries replaced at the beginning of the year; battery holder installed for easier future replacements
Additional equipment
20 tool holders included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
