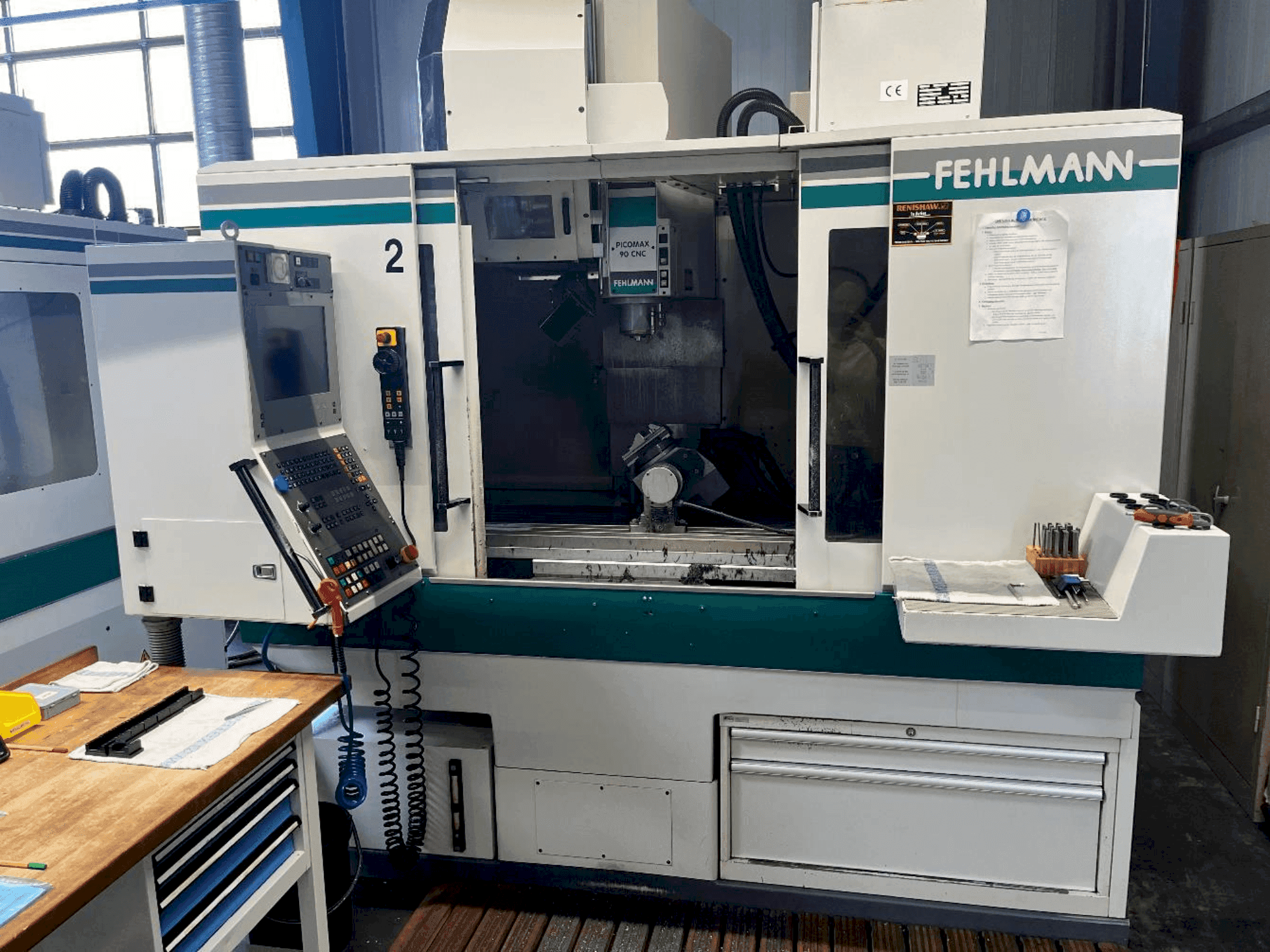

Front view of FEHLMANN Picomax 90 CNC  machine

FEHLMANN - Picomax 90 CNCDE-MIL-FEH-2002-00002

Rs. 2,104,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis FEHLMANN Picomax 90 CNC was manufactured in 2002. A robust vertical machining centre featuring a spindle speed range from 50 to 18000 rpm and a drilling capacity in steel up to 25 mm. It supports a maximum workpiece weight of 250 kg, with a total machine weight of approximately 3200 kg. Dimensions are 2200 mm in length, 1700 mm in width, and 3000 mm in height. Ideal for detailed and heavy-duty machining. For more information about this vertical machining centre, please reach out to us.

Overview

  • brand: FEHLMANN
  • year: 2002
  • MODEL: Picomax 90 CNC
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - FEHLMANN Picomax 90 CNC

General Data

  • Measurements width: 1700 mm
  • Measurements depth: 2200 mm
  • Measurements height: 3000 mm
  • Machine weight: 3200 kg

Main drive

  • Spindle speed range: 50 - 18000 rpm 1/MIN
  • Spindle motor power: 6.3 kW
  • Tool taper: SK 30
  • Number of axis: 3

Movement

  • X-AXIS Movement: 500 MM
  • Y-AXIS Movement: 350 MM
  • Z-AXIS Movement: 610 MM

Table

  • Outer length: 920 mm
  • Outer width: 380 mm
  • Min distance between vertical spindle and table: 94 mm
  • Max distance between vertical spindle and table: 704 mm

Media

  • Internal cooling: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max workpiece weight on table: 250 kg
      • - High spindle speed range of 50 - 18,000 rpm
      • - Comprehensive feed rates for x, y, and z axes (1 - 20,000 mm/min)
      • - Direct measuring system for x and y axes
      • - Drilling capacity in steel: 25 mm
      • - Thread cutting in steel: m 24
      • - Milling capacity: 100 cm³/min
      • - Connection: 50 hz 3x 400 volt / total power requirement: 20 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
