AXA - VHC-3-3000-M/EDE-MIL-AXA-2002-00001

Rs. 5,294,925
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis AXA VHC-3-3000-M/E was manufactured in 2002. It features an impressive X-axis travel of 2940 mm, Y-axis travel of 900 mm, and Z-axis travel of 950 mm. The machine includes a robust table size of 4350 x 900 mm and a spindle speed range of 40 - 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the AXA VHC-3-3000-M/E vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: AXA
  • year: 2002
  • MODEL: VHC-3-3000-M/E
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - AXA VHC-3-3000-M/E

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Dimensions

  • Machine Weight: 18000 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 2940 mm
  • Y-axis Travel: 900 mm
  • Z-axis Travel: 950 mm

Technical Specification

  • Spindle Speed: 12000 RPM
  • Taper Size: SK 40
  • Tool Stations: 36

Additional Information

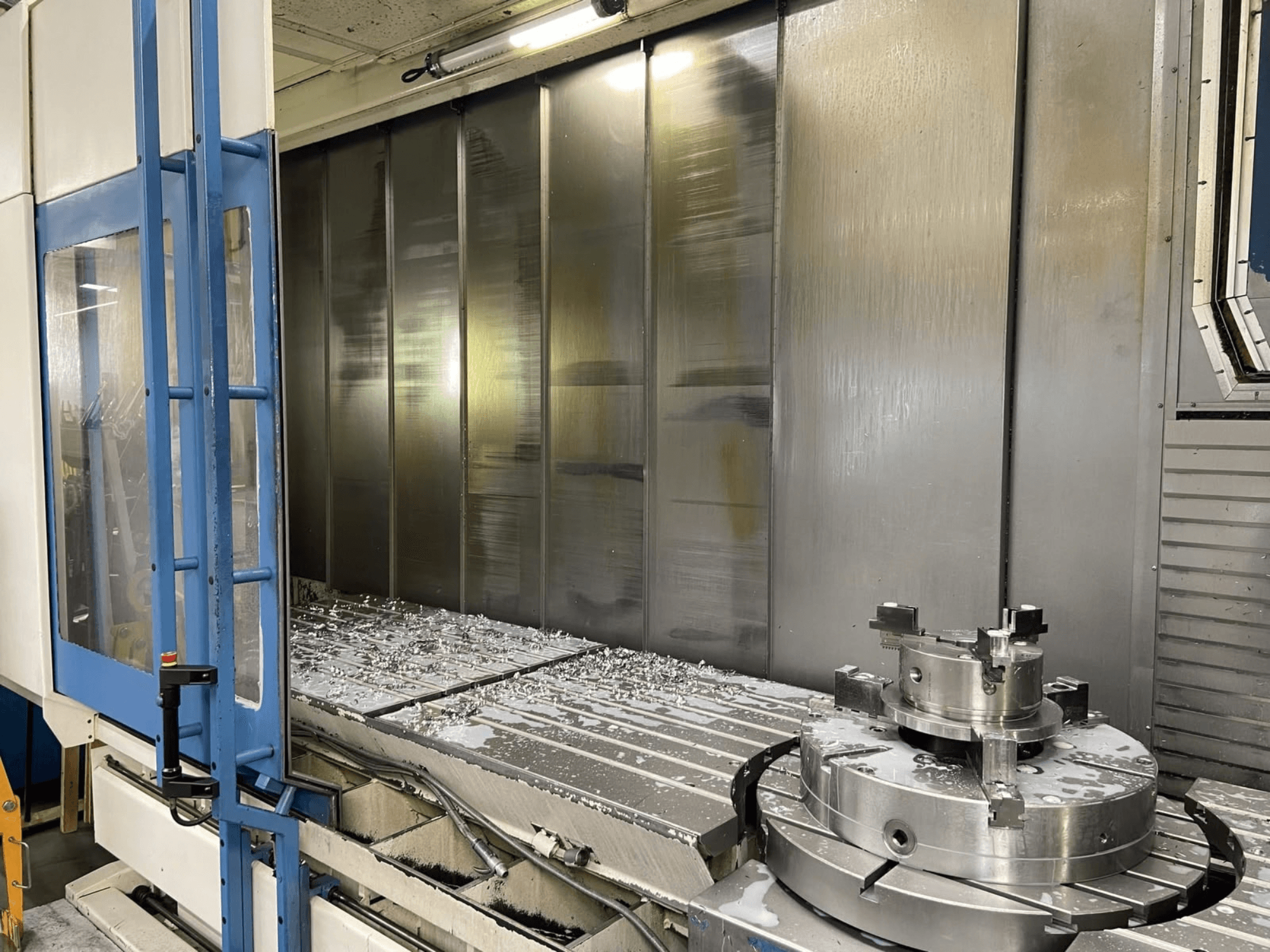

Table Clamping Surface: 4350 x 900 mm (with 7 T-slots 18H7 RTA integrated)

Swivel Head: Stepless positioning swivel head

NC Rotary Table: Type RTA 4 L - 800

Spindle Speed Range: 40 - 12,000 rpm

Spindle Taper / Tool Holder: SK 40 DIN 69871-A (Hohlwellenmotor, water-cooled)

Spindle Note: Spindle replaced/renewed a few years ago for nearly €30,000

Tool Changer: 36 positions, movable in Y-direction

Connected Load: 69 kVA

Voltage: 3x400V/230V/N/PE, 50 Hz

Control Voltage: 24 V DC

Fuse Protection: max. 125 A

Additional Equipment:

External band filter coolant system Type SA 25/600 (30 bar, 400 Liters)

Slat conveyor chip conveyor Type FSB 300 (discharge height 1200 mm, left side)

Minimum quantity lubrication

Electric handwheel HR 410

3D Touch Probe Type MP 10 E

Visport (Fabrikat Hema)

Heat exchanger Type SK3328 (Fabrikat Rittal)

2 Hand spray guns

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
