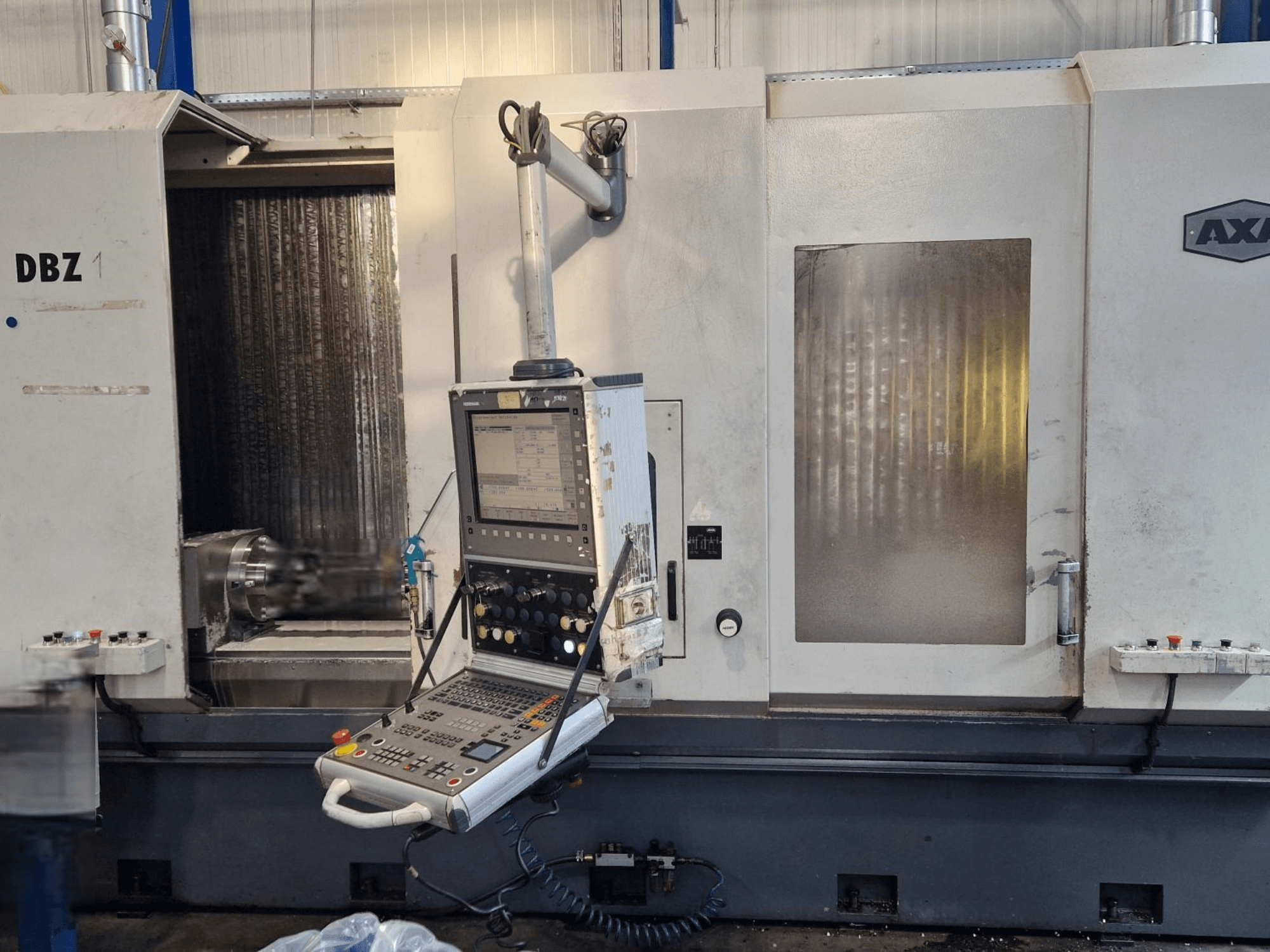

This 4-axis AXA DBZ vertical machining centre was manufactured in 2010. It features an impressive X-axis travel of 2 x 750 mm for pendulum processing, Y-axis travel of 500 mm, and Z-axis travel of 600 mm. The machine includes a NC rotary table with hydraulic counter bearing and a plate-type tool changer. If you are looking to get high-quality machining capabilities, consider the AXA DBZ vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: AXA
- year: 2010
- MODEL: DBZ
- production hours: 36604
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- Available from: 03/08/2026
Technical Information - AXA DBZ
Dimensions
- Machine Weight: 9500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 750 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 600 mm
Additional Information
Spindle hours: 36,604 h (verified via image)
Machine ON hours: 81,189 h
Overall dimensions: 4500 × 2250 × 2700 mm
Voltage: 400 V
Frequency: 50 Hz
Total power requirement: 45 kVA
Full load current: 65 A
External fuse: 80 A
Tool changer: Plate-type tool changer
Design/configuration: Traveling column; Left/Right work areas (pendulum machining)
Safety/enclosure: Maintenance door
Additional equipment
NC rotary table RTA 200 with hydraulic counter bearing (4th axis)
Clamping system: Hydraulics for right/left work areas, incl. rotary union for 4th axis
Internal coolant supply (IKZ)
Chip conveyor
Emulsion (coolant) system
Recooling unit (chiller)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
