Mazak - NEXUS 410AAT-MIL-MAZ-2006-00001

Name: Mazak NEXUS 410A
Brand: Mazak
SKU: AT-MIL-MAZ-2006-00001
Price: 2328556 INR
Availability: InStock

Rs. 2,328,556

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak NEXUS 410A For Sale | gindumac.com

Show in original language

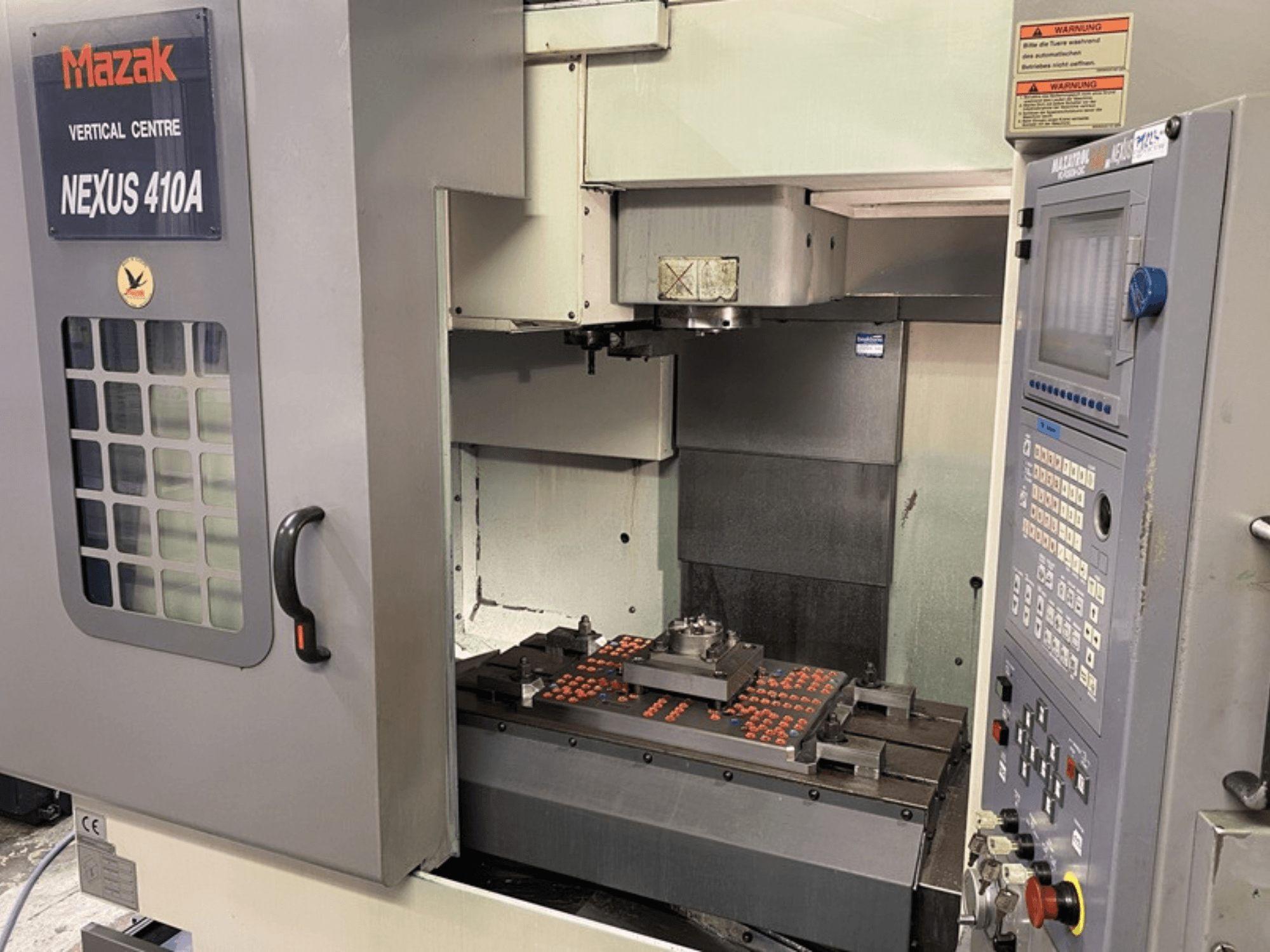

This 3-axis Mazak NEXUS 410A vertical machining centre was manufactured in 2006. It features an X-axis travel of 560 mm, Y-axis travel of 410 mm, and Z-axis travel of 510 mm. The machine has a maximum spindle speed of 12,000 rpm and a tool capacity of 30 tools. If you are looking to get high-quality machining capabilities, consider the Mazak NEXUS 410A machine we have for sale. Contact us for further details.

Overview

brand: Mazak
year: 2006
MODEL: NEXUS 410A
production hours: 66174
application type: Milling
Location: Austria
machine type: Vertical Machining Centre

Technical Information - Mazak NEXUS 410A

Dimensions

Machine Height: 2778 mm
Machine Weight: 4920 kg
Table Load: 500 kg

Movement

Number of Axes: 3
X-axis Travel: 560 mm
Y-axis Travel: 410 mm
Z-axis Travel: 510 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM
Tool Stations: 30

Additional Information

Table size: 900 x 410 mm
T-slots: 3 slots, 18 mm, 125 mm spacing
Spindle speed range: Stepless
Spindle taper: CAT 40
Spindle bearing inner diameter: 70 mm
Spindle acceleration: 2.04 s
Rapid traverse: 36 m/min
Cutting feed: 1 to 8,000 mm/min (up to 36,000 mm/min)
Axis acceleration: 0.5 G
Max. tool diameter: 80 mm
Max. tool diameter (adjacent empty): 125 mm
Max. tool length: 350 mm
Tool change time: 2.9 s
Spindle motor (AC): 18.5 / 15 / 11 / 7.5 kW
Power requirement: 27.8 / 22.82 kVA
Air supply: 5 bar, 200 l/min
Footprint: 2,000 x 2,600 mm
Spindle hours: 66,174 h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
