➤ Used Mazak VARIAXIS I 500 For Sale | gindumac.com

Show in original language

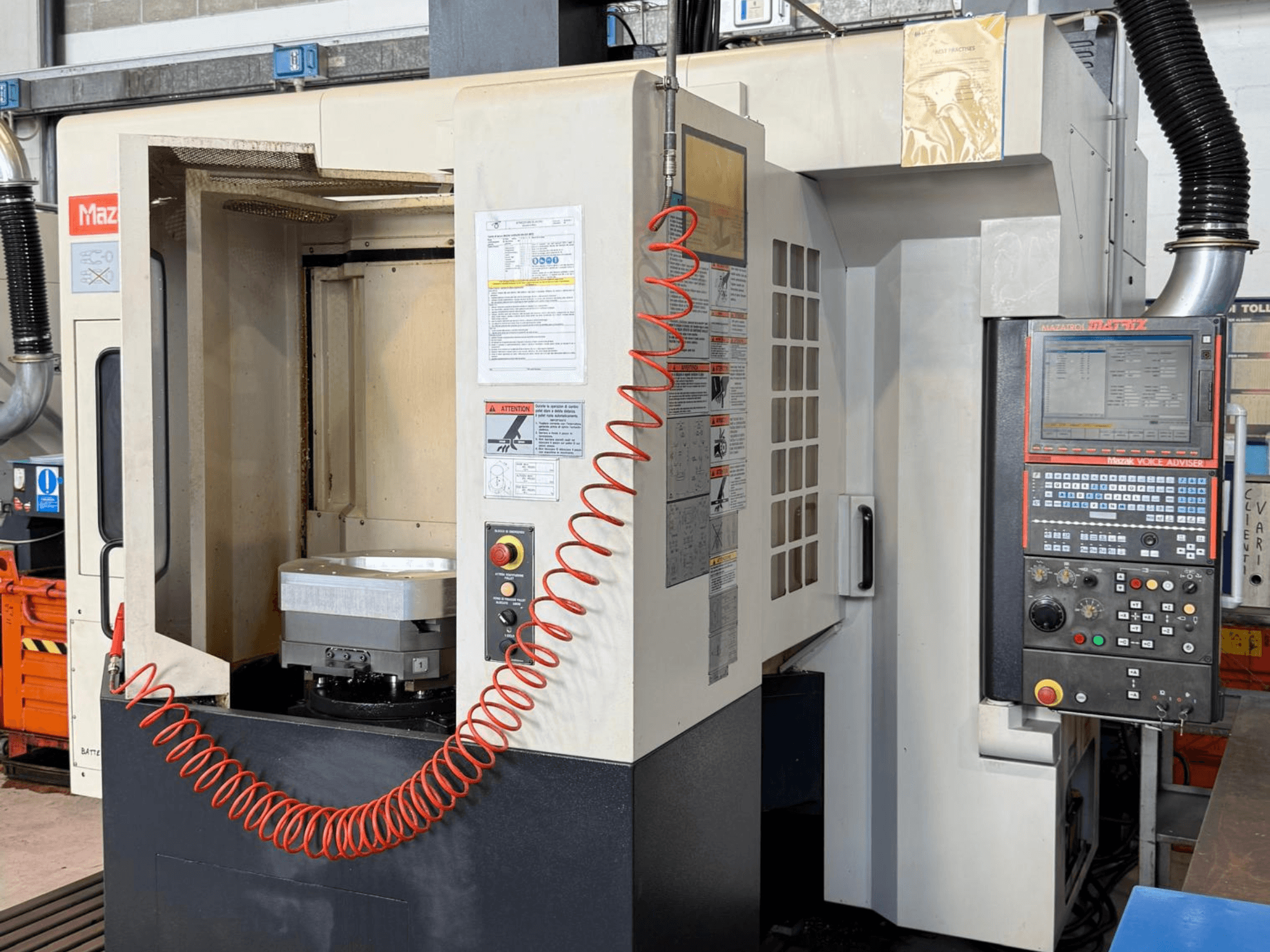

This 5-axis Mazak VARIAXIS I 500 was manufactured in 2006. It features an X-axis travel of 510 mm, Y-axis travel of 510 mm, and Z-axis travel of 460 mm. The machine includes a tool magazine capacity of 60 tools and a maximum spindle speed of 12,000 rpm. If you are looking to get high-quality milling capabilities, consider the Mazak VARIAXIS I 500 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Mazak
year: 2006
MODEL: VARIAXIS I 500
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak VARIAXIS I 500

Control Unit

Control Brand: MAZATROL
Control Model: Matrix

Dimensions

Machine Weight: 11000 kg
Table Load: 300 kg

Movement

Number of Axes: 5
X-axis Travel: 510 mm
Y-axis Travel: 510 mm
Z-axis Travel: 460 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 3000 RPM
Tool Stations: 60

Additional Information

A: -120° / +30°
C: 360°

Table

Dimensions: 500 × 400 mm
Number of tables/pallets: 2
Spindle nose to horizontal table: 190–650 mm
Spindle nose to vertical table: 140–600 mm

Spindle

Max torque: 252 Nm

Tool magazine / ATC

Automatic tool changer: Yes

Control and software functions

Automatic pecking cycle with load detection
Synchronized tapping
EIA Dynamic Compensation 2
Two additional M-code functions
G00 slope constant
High-speed function
MAZACC-3D high-speed software package
Shape compensation for rotary axes

Additional equipment

Pallet changer (two pallets/tables)
Belt-type chip conveyor
Chip conveyor preparation with chip pan
High-pressure coolant through spindle system (stated as 15 kg)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
