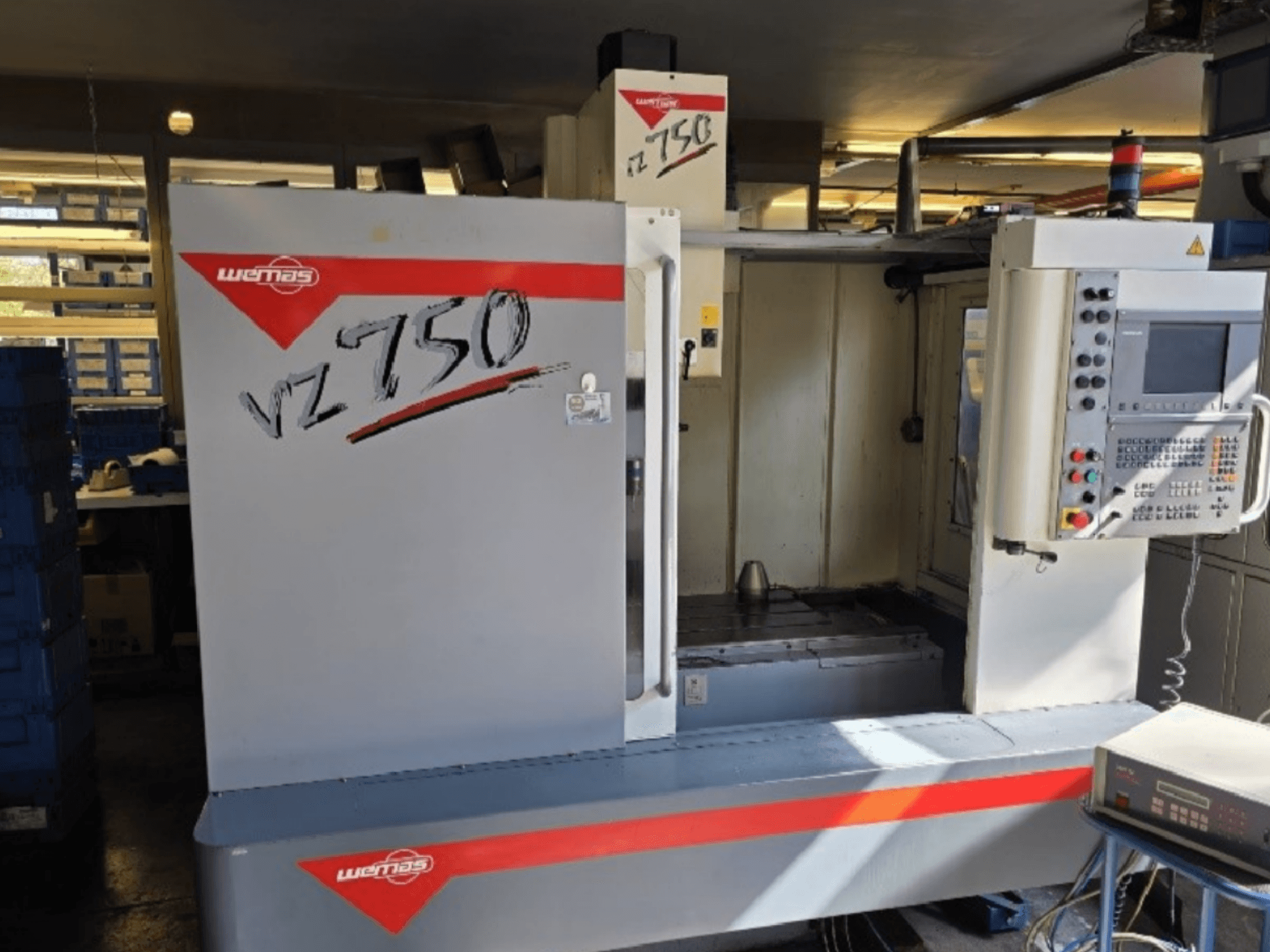

This 3-axis WEMAS VZ 750 CENTURY was manufactured in 2001. It features an X-axis travel of 750 mm, Y-axis travel of 500 mm, and Z-axis travel of 500 mm. The machine includes a Heidenhain TNC 426 control unit, an electronic handwheel, and a tool changer. If you are looking to get high-quality machining capabilities, consider the WEMAS VZ 750 CENTURY vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: WEMAS
- year: 2001
- MODEL: VZ 750 CENTURY
- production hours: 13677
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - WEMAS VZ 750 CENTURY
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 426
Movement
- Number of Axes: 3
- X-axis Travel: 750 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: SK 40
Additional Information
Machine ON time: 41,712 hours
Measuring system: Linear position measuring system in all three axes
Handwheel: Heidenhain HR 410 electronic handwheel
Tool changer: Included
Machine access: Side doors with windows (left and right)
Additional equipment
Tool probe: m&h Inprocess 3D tool sensor (Type m&h TS35.10)
Workpiece probe: m&h Infrared workpiece touch probe (Type 25.00 SK40-02)
4th axis: Walter CDS 22 motorized rotary table/indexing head with original control unit
Rotary table features: 3-jaw chuck, RS232 interface, digital angle input
Additional 4th axis: Walter CDS 22 rotary table/indexing unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
