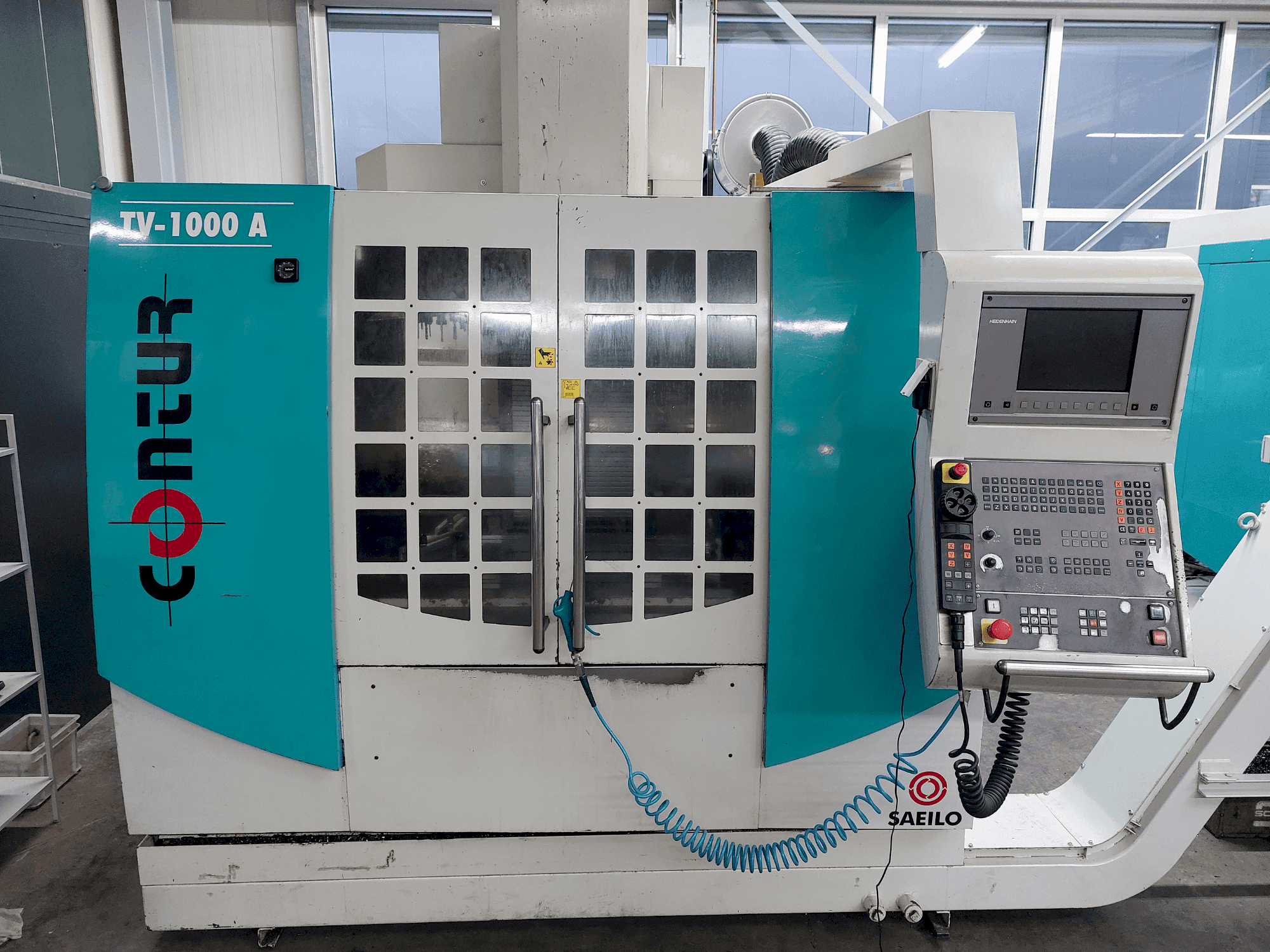

Front view of Saeilo TV1000A  machine

Saeilo - TV1000ADE-MIL-SAE-2001-00001

Rs. 4,189,500
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Saeilo TV1000A vertical machining center was manufactured in 2001. It features a Heidenhain TNC 410 control unit, a table size of 1250 x 850 mm, and a tool magazine with 40 stations. The spindle supports SK 40 taper and operates at speeds up to 8000 RPM. If you are looking to get high-quality milling capabilities, consider the Saeilo TV1000A machine we have for sale. Contact us for more information.

Overview

  • brand: Saeilo
  • year: 2001
  • MODEL: TV1000A
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - Saeilo TV1000A

General Data

  • Machine weight: 6000 KG

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC 410

Main drive

  • Spindle speed range: 20 - 8000 1/MIN
  • Tool taper: SK 40
  • Main motor power: 13 kW

Movement

  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 610 mm
  • Z-AXIS Movement: 760 mm

Table

  • Outer length: 1250 mm
  • Outer width: 850 mm

Tools

  • Slots in storage: 40

Additional Information

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
