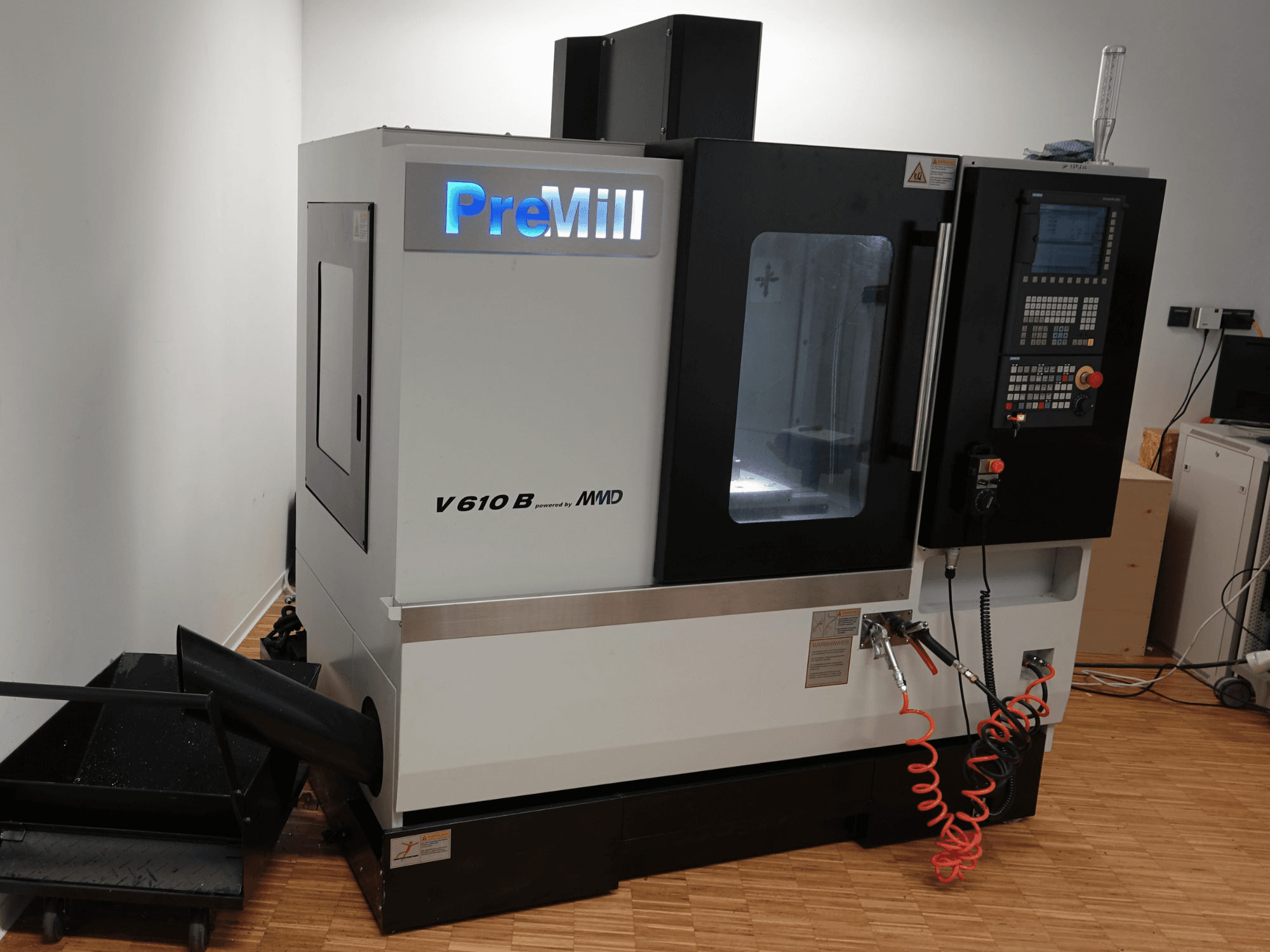

This 3-axis PreMill V 610 B was manufactured in 2019. It features an X-axis travel of 610 mm, Y-axis travel of 350 mm, and Z-axis travel of 460 mm. The machine has a robust table size of 710 x 350 mm and a maximum workpiece weight of 350 kg. If you are looking to get high-quality machining capabilities, consider the PreMill V 610 B vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: PreMill
- year: 2019
- MODEL: V 610 B
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- Available from: 01/09/2026
- control unit brand: SIEMENS
Technical Information - PreMill V 610 B
Control Unit
- Control Brand: SIEMENS
- Control Model: 828 D SL
Dimensions
- Machine Height: 1987 mm
- Machine Length: 1880 mm
- Machine Weight: 2600 kg
- Machine Width: 1720 mm
- Table Length: 710 mm
- Table Width: 350 mm
Movement
- Number of Axes: 3
- X-axis Travel: 610 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 460 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Spindle Power: 7 kW
- Spindle Speed: 10000 RPM
- Taper Size: SK 40
- Through-spindle Coolant: Yes
Additional Information
- Distance Spindle Center to Table Surface: 100 - 560 mm
- Max. Workpiece Weight: 350 kg
- Rapid Traverse Speed (X/Y/Z): 12 m/min
- Feed Speed: 10 m/min
- Positioning Accuracy: +/- 0.008 mm
- Repeatability: +/- 0.005 mm
- Tool Changer Type: Carousel
- Tool Storage Capacity: 16 slots
- Max. Tool Diameter: 100 mm (150 mm without adjacent tools)
- Max. Tool Length: 300 mm
- Spindle Motor Power (100% ED): 7 kW
- Feed Motor Power (X/Y/Z): 2.3 kW
- Power Supply: 12 kVA
- Compressed Air Supply: 6 bar
- Coolant Tank Capacity: 100 L
- additional features available: ShopMill, 3D Simulation, Auto Power Off, Rigid Tapping, Flat Guideways in X/Y/Z, Chip Conveyor (Screw type) with Chip Cart, Spindle Ring Flushing, Prepared for CTS (IKZ), Prepared for 4th Axis, Central Oil Lubrication, LED Signal Lamp & Workspace Light, Vice
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
