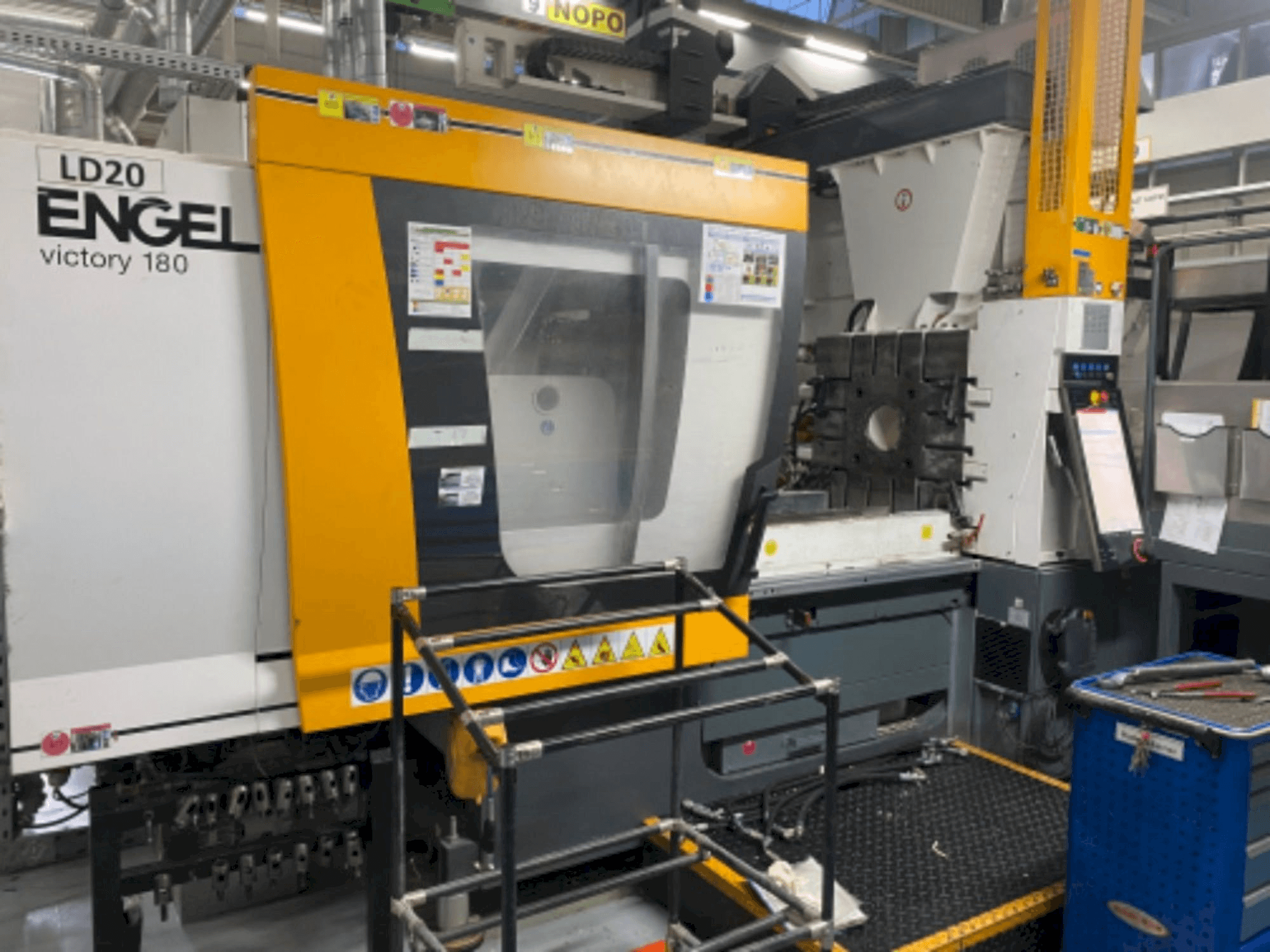

ENGEL Victory 330/180 Tech Injection moulding machine

Show in original language

This ENGEL Victory 330/180 Tech Injection moulding machine was manufactured in the year 2015. It is equipped with an Engel K-M control unit. The machine has a spindle speed of 35 mm and a clamping force of 1800 kN.

Overview

brand: Engel
year: 2015
MODEL: Victory 330/180 Tech
application type: Injection Moulding
Location: Czech Republic
machine type: Injection Moulding Machine
availability: Sold
control unit brand: Engel

Technical Information - Engel Victory 330/180 Tech

Control Unit

Brand: Engel
Model: K-M

Injection Unit

Screw diameter: 35 mm
Stroke volume: 154 CM³
Injection pressure: 1595/ 2177 bar

Clamping unit

Clamping force: 1800 kN
Opening stroke: 1250 mm
Ejector stroke: 180 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - H/r zone 4-4
- - Core pull fixed 3
- - Core pull moving 3
- - Total installed power 80 kw
- - Including 3-axis engel robot

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
