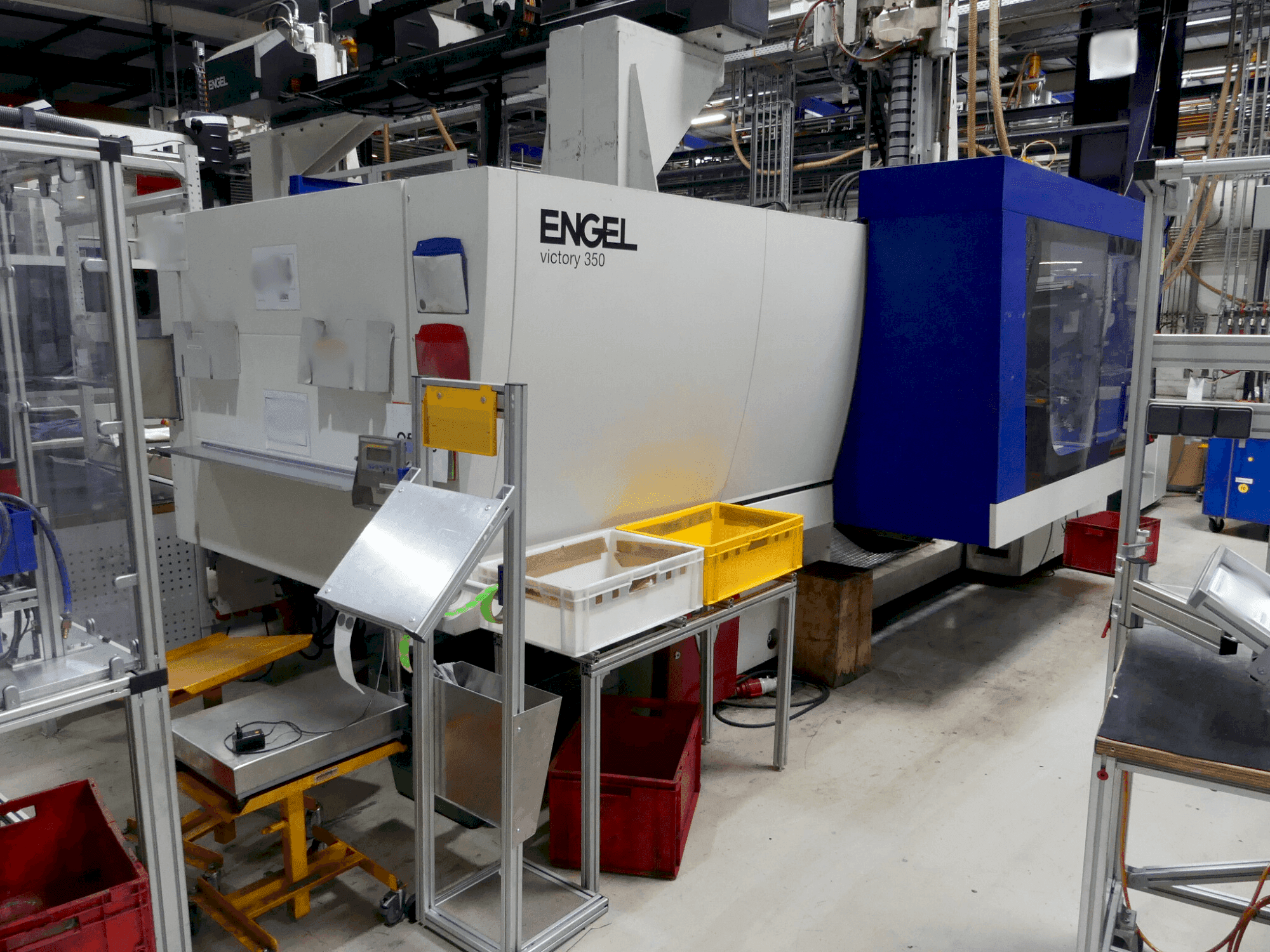

Front view of Engel Victory 2050H/650v/350 Combi  machine

Engel Victory 2050H/650v/350 Combi

Engel - Victory 2050H/650v/350 Combi

2015

Rs. 9,043,300
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ENGEL Victory 2050H/650v/350 Combi injection moulding machine was manufactured in 2015. It boasts significant capabilities with a clamping force of 350 tons and an injection pressure of 1480 bar. The machine offers a maximum injection volume of 808.17 cm³ horizontally and 294.52 cm³ vertically, enhancing its versatility. Additionally, it is equipped with special accessories like Valves + control, an Index plate, and a Viper robot 40 for automated removal. Reach out for more information about this injection moulding machine.

Overview

  • brand: Engel
  • year: 2015
  • MODEL: Victory 2050H/650v/350 Combi
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Injection Moulding Machine
  • availability: Immediately
  • GINDUMAC ID: DE-INJ-ENG-2015-00003

Technical Information

General Data

  • Machine weight: 5100 KG

Injection Unit

  • Stroke volume: minimum injection volume (cm3) 1D - horizontal 269.39, vertical 98.17 / maximum injection volume (cm3) 3D - horizontal 808.17; 294.52 CM³
  • Injection pressure: 1480 bar

Clamping unit

  • Clamping force: 350 tons KN

    Additional equipment

    • - Valves + control
    • - Index plate
    • - Viper robot 40
    • - Removal weight with gripper 23 kg
    • - permissible torque on gearbox 113 Nm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Thread clamping plate diameter: 20
        • - Spray weight g/hp horizontal: 1051 g
        • - Spray weight g/hp vertical: 357. 6 g
        • - Total permissible mould weight of which on moving platen max: 2. 5 t
        • - Amin installation height: 650 with platen, 750 without platen / amax installation height: 1000, bmax
        • - Opening travel: 1650 with plate / 1750 without plate
        • - Ejector stroke max 250
        • - Cylinder diameter horizontal (mm) 70 / vertical (mm) 50

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
