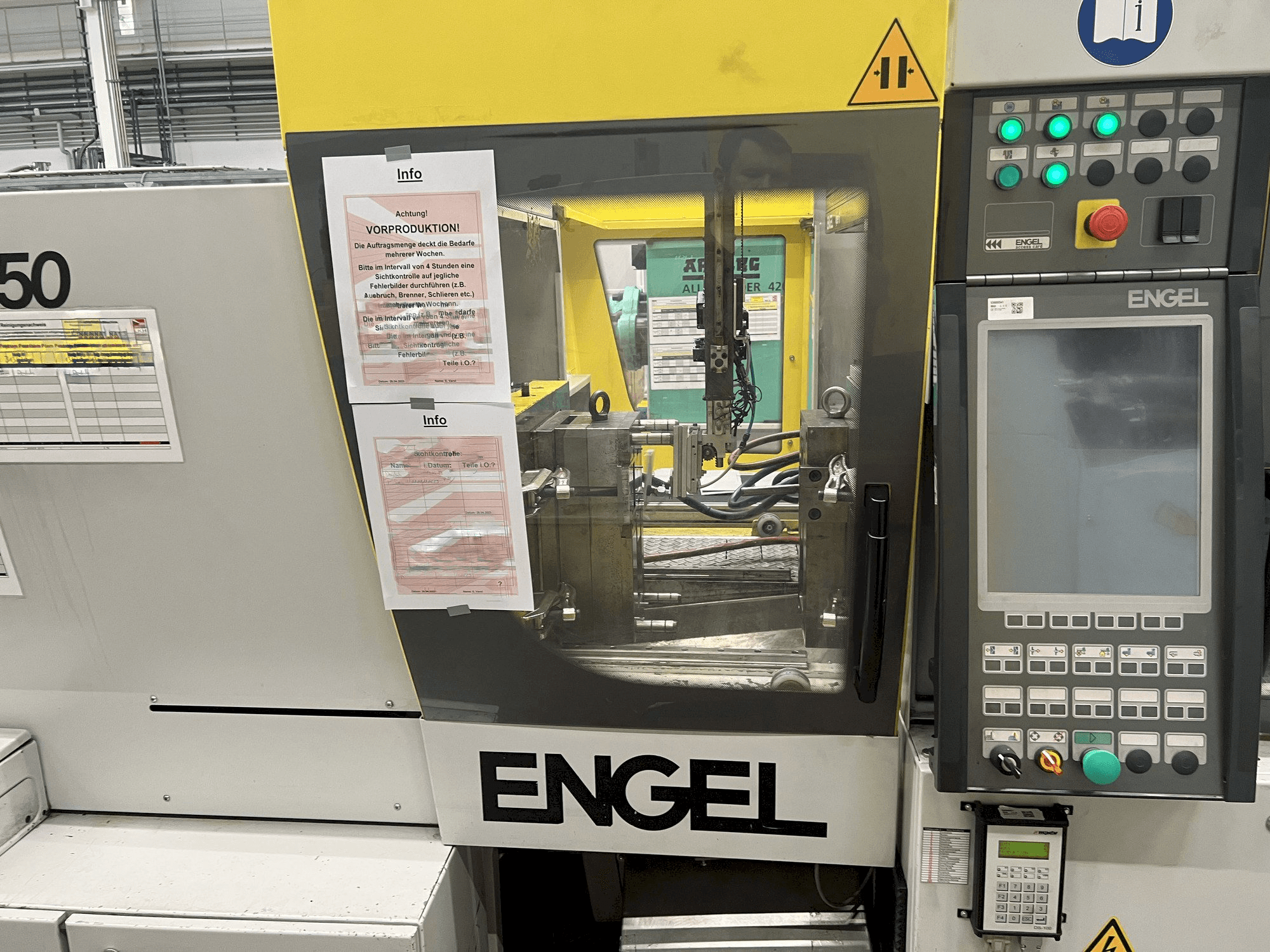

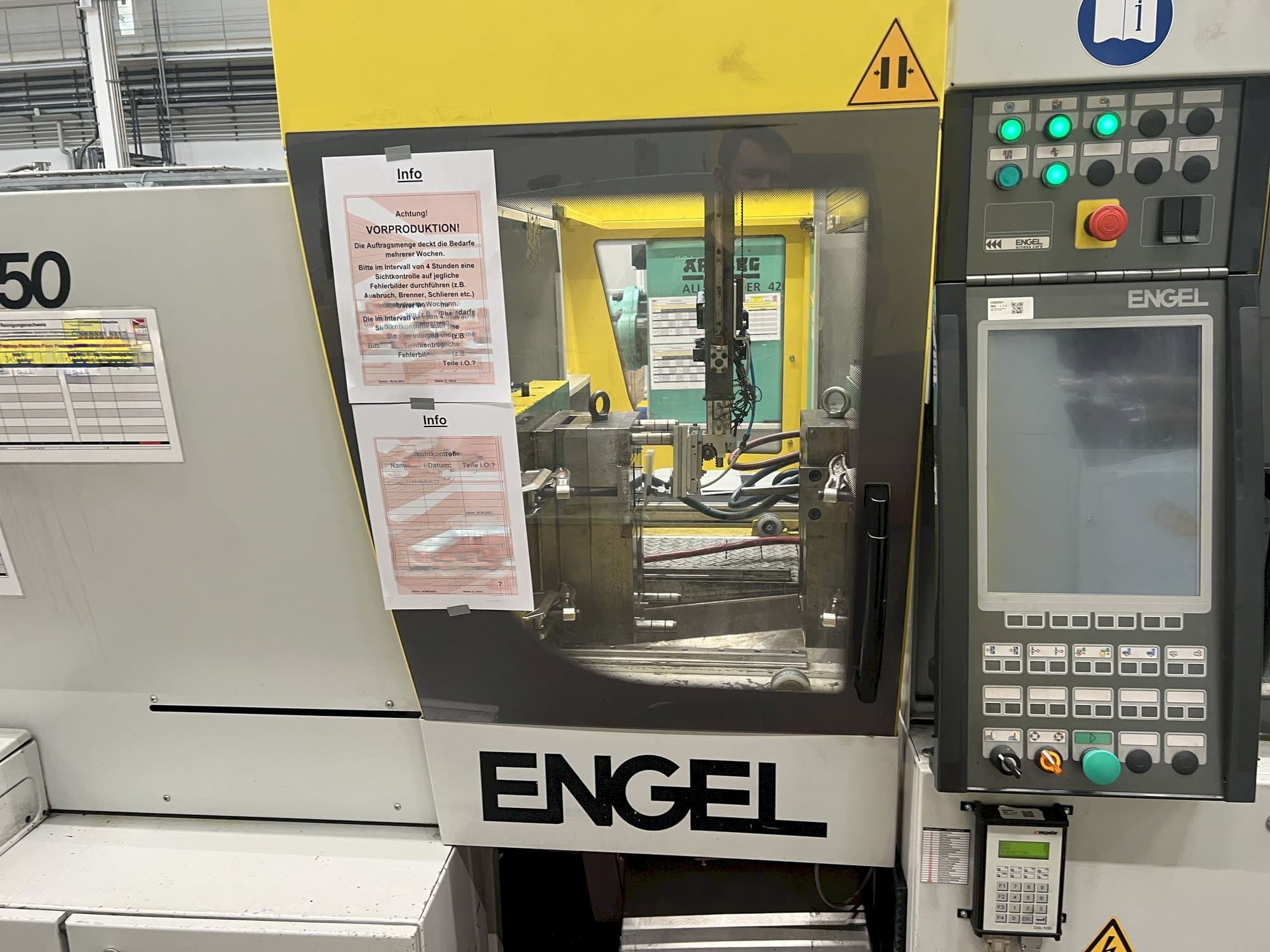

Front view of Engel Victory 200/50 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel Victory 200/50

Engel - Victory 200/50DE-INJ-ENG-2011-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Engel Victory 200/50 Injection moulding machine

Show in original language

This Engel Victory 200/50 Injection moulding machine was made in the year 2011 and has 10791 total operating hours, of which 6164 are handling operating hours. It is equipped with an Engel control unit. The machine has a clamping force of 500 kN and an injection pressure of 1620 bar.

Overview

brand: Engel
year: 2011
MODEL: Victory 200/50
production hours: 10791
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel Victory 200/50

Control Unit

Brand: ENGEL

Injection Unit

Screw diameter: 35 mm
Stroke volume: 135 CM³
Injection pressure: 1620 bar

Clamping unit

Clamping force: 500 kn
Opening stroke: 400 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min wkz installation height (mm) : 200
- - Centering ring Ø : 100/100
- - Core pulls: 1 (bwap)
- - Hot runner control points: 8
- - Handling: 3-axis cnc robot

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
