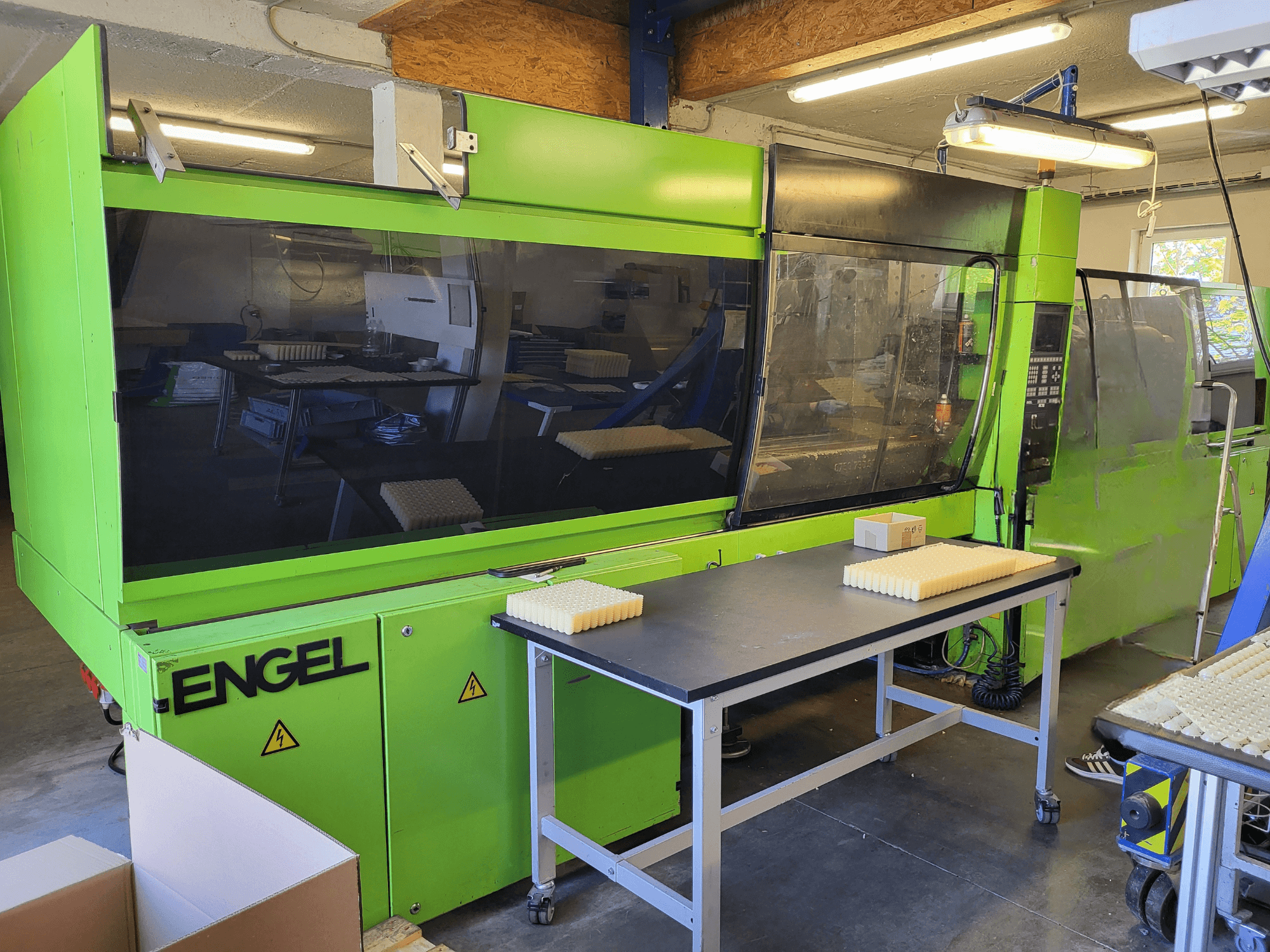

Engel - ES1800/300HLCZ-INJ-ENG-2000-00001

Screw diameter options: 60 / 70 / 80 mm

Injection unit: ES 1800

Stroke volume (max): 763 / 1039 / 1357 cm³

Injection pressure (specific): 1960 / 1441 / 1105 bar

Injection pressure (specific, increased): 2360 / 1735 / 1330 bar

Opening stroke: 850 mm

Mould installation height (min): 350 mm

Max. daylight (distance between platens): 1200 mm

Mould fixing platen size (H x V): 1050 x 650 mm (standard) / 1050 x 900 mm (enlarged option)

Ejector stroke: 200 mm

Ejector force: 83 kN

Dry cycle / stroke (Euromap 6): 2.2 s / 300 mm

Oil capacity: 810 l

Pump power: 37 kW (standard) / 45 kW (N-Ausführung)

Heating power: 25.3 / 29.4 / 33.5 kW (standard) or 33.4 kW (N-Ausführung)

Number of heating zones: 5 (including nozzle)

Hopper capacity: 120 l

Control system: Microcomputer EC 100 regulated (standard) / CC 100 regulated (optional)

Standard equipment/features: 10-stage injection speed, 10-stage holding pressure profile, 5-stage screw speed, 5-stage back pressure profile, bimetallic cylinder, ceramic heating bands, energy-saving variable displacement pump hydraulics
