Emsil GMMC-6000

Photo Gallery

Emsil - GMMC-6000RO-MIL-EMS-2023-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
EMSIL GMMC-6000 Universal Machining center

Show in original language

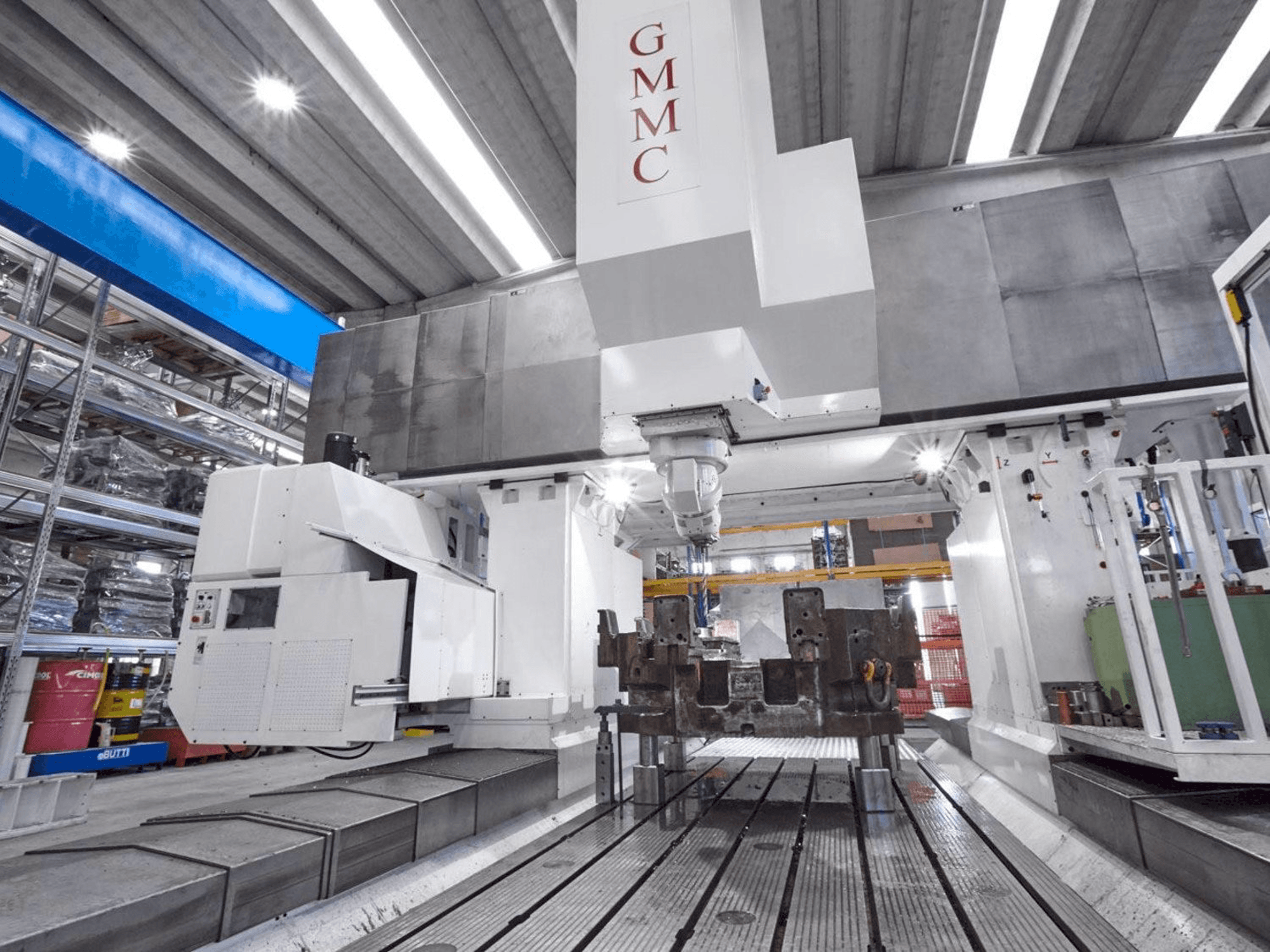

This EMSIL GMMC-6000 Universal Machining center was made in 2023. It is equipped with a Fanuc 31i control unit. The machine has a spindle speed of 3000 rpm.

Overview

brand: Emsil
year: 2023
MODEL: GMMC-6000
application type: Milling
Location: Romania
machine type: Universal Machining Centre
control unit brand: FANUC

Technical Information - Emsil GMMC-6000

Control Unit

Control Brand: FANUC
Control Model: 31i

Dimensions

Table Length: 6000 mm
Table Load: 5000 kg
Table Width: 2000 mm

Movement

X-axis Travel: 6000 mm
Y-axis Travel: 3000 mm
Z-axis Travel: 1500 mm

Technical Specification

Spindle Power: 37 kW
Spindle Speed: 3000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Painting: ral7035
Heidenhain linear scales for x and y axes & guideway with integrated measuring system schneeberger for z axis
Chip evacuation system (2 pieces chip conveyors)
Tu-37 automatic indexing milling head (undetacheable)
A axis: 360°
C axis: ±180°
Maximum torque: 1400 nm
Pick up station with 2 posts for automatic changing of the head

Technical Machine Benefits

Distance between columns: 2800 mm
Ram section : 470x570 mm
Working feed on axes: 0-12000 mm/min
Rapid feed on axes: 15000 mm/min
Taper: iso-50 (din69871)
Servomotors ac (brushless)
Telescopic covers for x and y axis
Internal/external tool cooling
Centralized hydraulic and lubrication unit
Foundation elements, 1 set

Extra Information

The following options are not included in the above price of standard machine: Heidenhain linear scales for X and Y axes & guideway with integrated measuring system Schneeberger for Z axis: Price: 20.000,00 Eur Fixed table 6000x2000 mm, max. load on table: 5000 kg/m² Price: 42.000,00 Eur Chip evacuation system (2 pieces chip conveyors) Price: 25.000,00 Eur TU-37 automatic indexing milling head (undetacheable) ➢ A axis: 360° ➢ C axis: ±180° ➢ 2.5° indexing in 2 planes ➢ Maximum power: 37 Kw ➢ Maximum torque: 1400 Nm ➢ Maximum speed: 3000 rpm ➢ Taper: ISO-50 (DIN69871) Price: 105.000,00 Eur Pick up station with 2 posts for automatic changing of the head Price: 45.000,00 Eur

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
