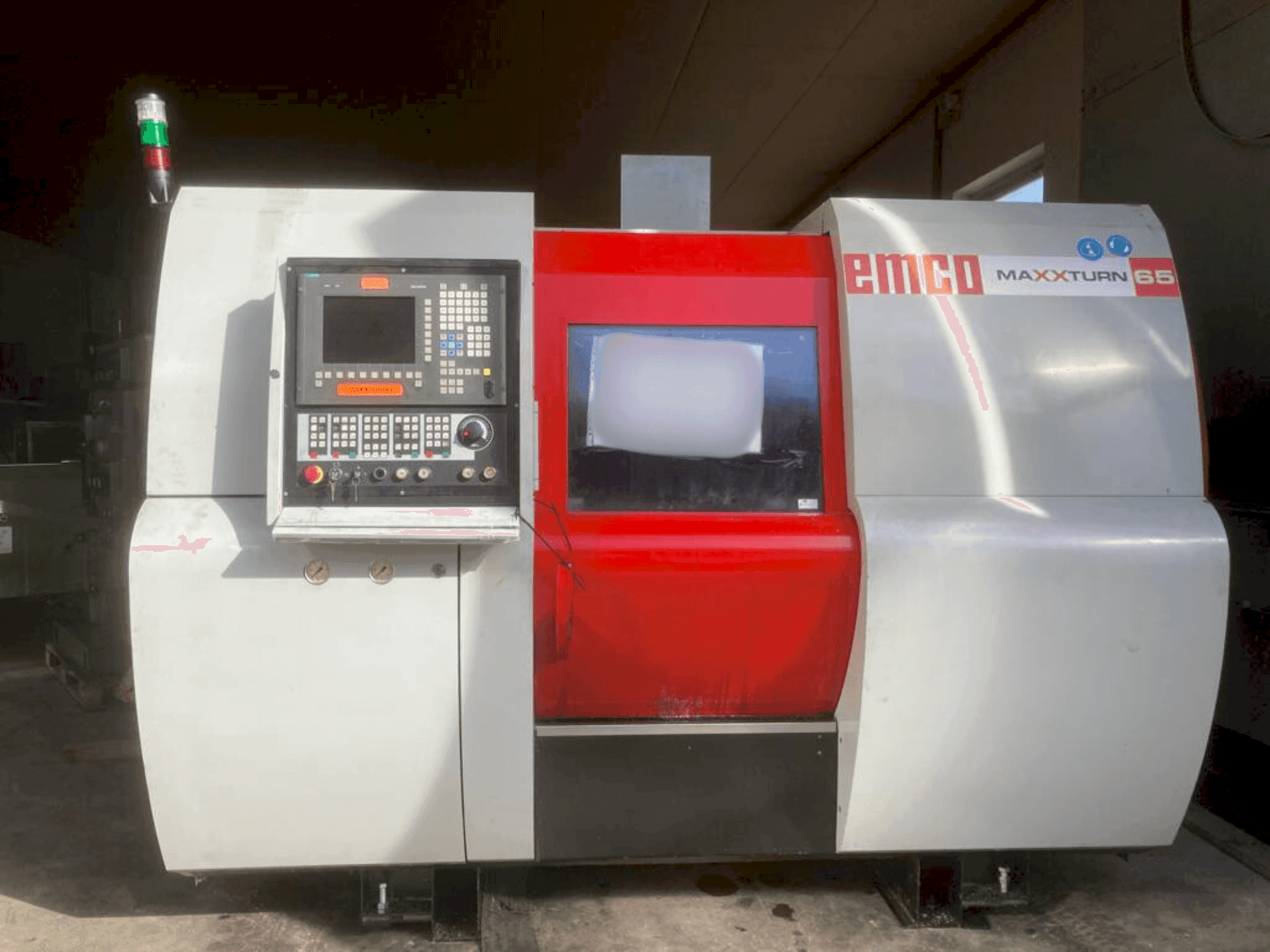

Front view of EMCO Maxxturn 65  machine

EMCO - Maxxturn 65AT-TUR-EMC-2005-00001

Rs. 4,684,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis EMCO Maxxturn 65 lathe was manufactured in 2005. It features a Siemens 840 D control system, a 12-position turret with all driven tools, and a tool holder VDI 30. The main spindle operates up to 5000 rpm, while the counter spindle reaches 7000 rpm. It includes a Hainbuch collet chuck, parts catcher, and a chip conveyor. A great opportunity to buy this EMCO Maxxturn 65 lathe. Reach out for more information.

Overview

  • brand: EMCO
  • year: 2005
  • MODEL: Maxxturn 65
  • application type: Turning
  • Location: Austria
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: Siemens

Technical Information - EMCO Maxxturn 65

Control Unit

  • Brand: Siemens
  • Model: 840 D

Main drive

  • Spindle speed range: 0-5000 1/MIN
  • Tool taper: VDI 30
  • Number of axis: 4

Movement

  • X-AXIS Movement: 260 mm
  • Y-AXIS Movement: 80 mm
  • Z-AXIS Movement: 610 mm

Workpiece

  • Workpiece drm: 65 mm

Tools

  • Slots in storage: 12

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Hainbuch collet chuck on main and counter spindle
    • - Parts catcher
    • - 10 tool holders (2 axial, 2 radial, and 6 normal holders)
    • - Emco LM 1200 loading magazine

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Comprehensive tool management with a 12-position turret (all driven)
      • Qualitative Machine Benefits:
        • - Advanced control system with siemens 840 d for precise operations
        • - Versatile machining capabilities with driven tools and multiple tool holders

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
