➤ Used EMCO E25 - Horizontal Lathe For Sale | gindumac.com

Show in original language

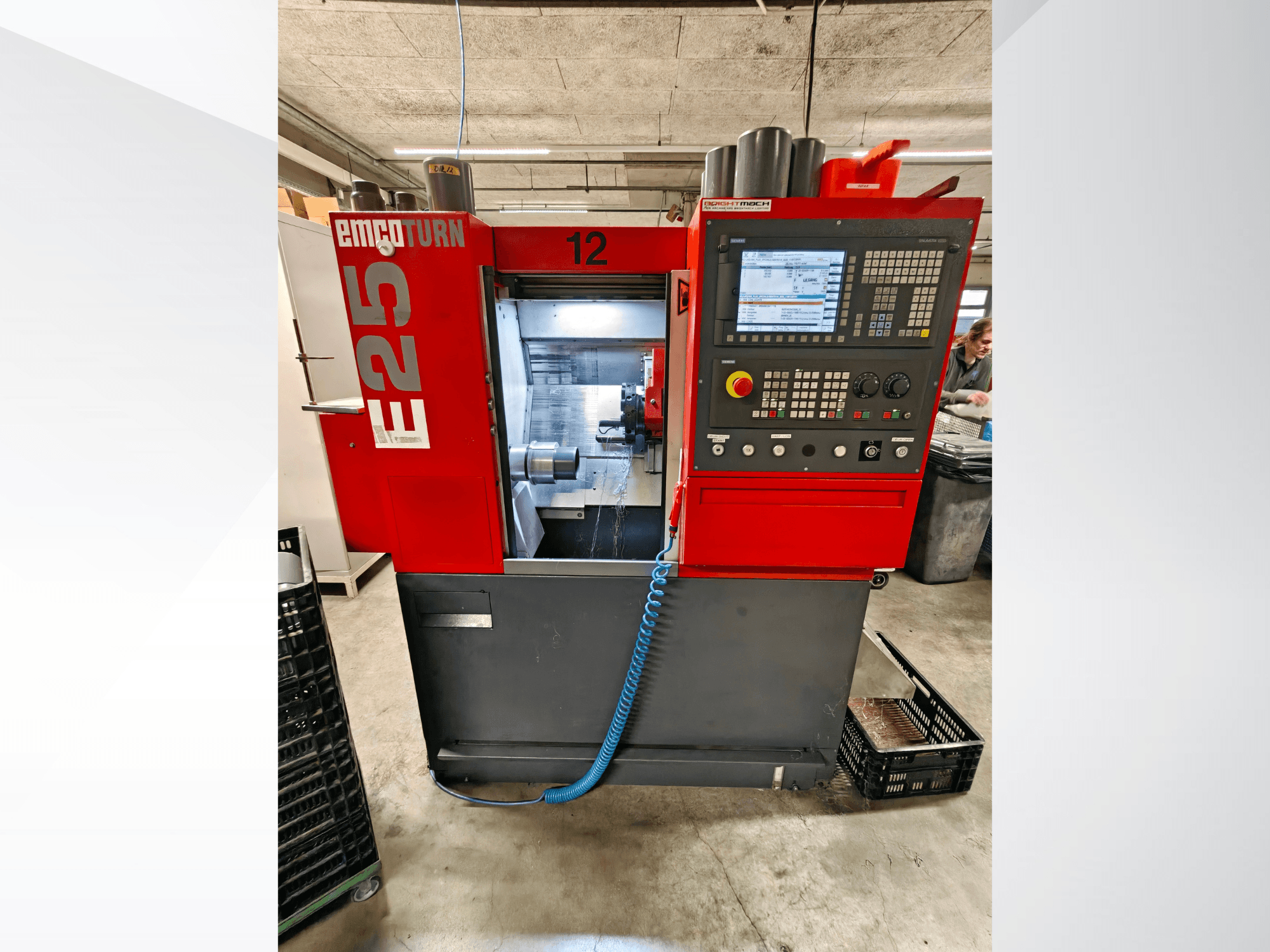

Horizontal turning machine manufactured in 2014. This EMCO E25 features a maximum turning diameter of 85 mm and a maximum turning length of 225 mm. It includes a VDI 16 disk turret with 12 tool stations and a rapid traverse speed of 15 m/min in the X-axis. If you are looking to get high-quality turning capabilities, consider the EMCO E25 machine we have for sale. Contact us for further details.

Overview

brand: EMCO
year: 2014
MODEL: E25
production hours: 3955
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
Available from: 31/10/2026
control unit brand: SIEMENS

Technical Information - EMCO E25

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 828D

Dimensions

Machine Length: 1270 mm
Machine Weight: 1400 kg
Machine Width: 1700 mm

Movement

Number of Axes: 2
X-axis Travel: 100 mm
Z-axis Travel: 300 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 3.7 kW
Through-spindle Coolant: No

Additional Information

Spindle motor power: 3.7 kW (5.5 kW at 40% duty cycle)
Spindle speed range: 60 - 6300 rpm (infinitely variable)
Feed Force: 3000 N / 3500 N
Rapid Traverse: 15 m/min / 24 m/min
Number of tool slots: 12
Main electronic connection: 400 V (3/PE)
Power consumption: 6 kVA
Chip conveyor: Included
Swing over bed: 250 mm
Max. Turning Diameter: 85 mm
Max. Turning Length: 225 mm
Max. Bar Capacity: 25.5 mm
Distance between centers: 405 mm
Spindle Connection: Ø 70 h5
Max. Chuck Size: Ø 100 mm
Max. Torque: 35 Nm
Turret Type: VDI 16 disk turret with directional logic
Tool Shank Cross-section: 12 x 12 mm
Coolant tank capacity: 140 liters
Sound pressure level: 78 dB(A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
