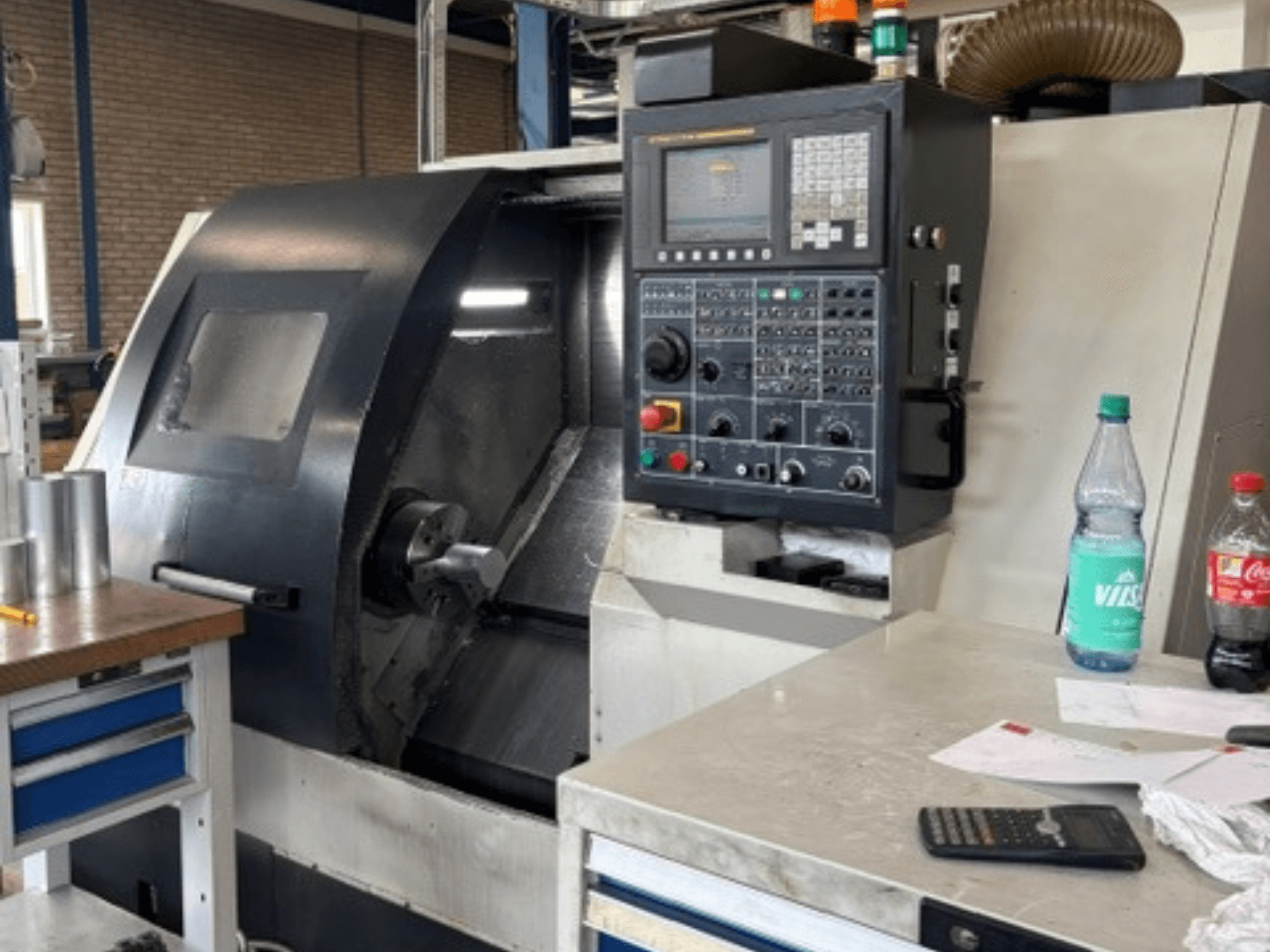

Horizontal turning machine manufactured in 2013. This Leadwell T-7 features a maximum turning diameter of 350 mm and a maximum turning length of 540 mm. It includes a 12-station hydraulic turret and a spindle speed of 1,750 rpm. If you are looking to get high-quality turning capabilities, consider the Leadwell T-7 machine we have for sale. Contact us for further details.
Overview
- brand: Leadwell
- year: 2013
- MODEL: T-7
- production hours: 30959
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Leadwell T-7
Control Unit
- Control Brand: FANUC
- Control Model: Series Oi-TD
Dimensions
- Machine Height: 1945 mm
- Machine Length: 2800 mm
- Machine Weight: 4500 kg
- Machine Width: 1565 mm
Movement
- Number of Axes: 2
- X-axis Travel: 200 mm
- Z-axis Travel: 600 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Speed: 1750 RPM
Additional Information
Maximum turning diameter: 350 mm
Maximum swing over bed: 520 mm
Maximum turning length: 540 mm
Spindle nose: A2-6
Spindle bore: 62 mm
Maximum bar capacity: 65 mm
Chuck size: 8" hydraulic chuck
Turret: 12-station hydraulic turret
Rapid traverse (X/Z): 20–30 / 24–30 m/min
Tailstock: Hydraulic
Additional equipment
Chip conveyor: Standard or optional
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
