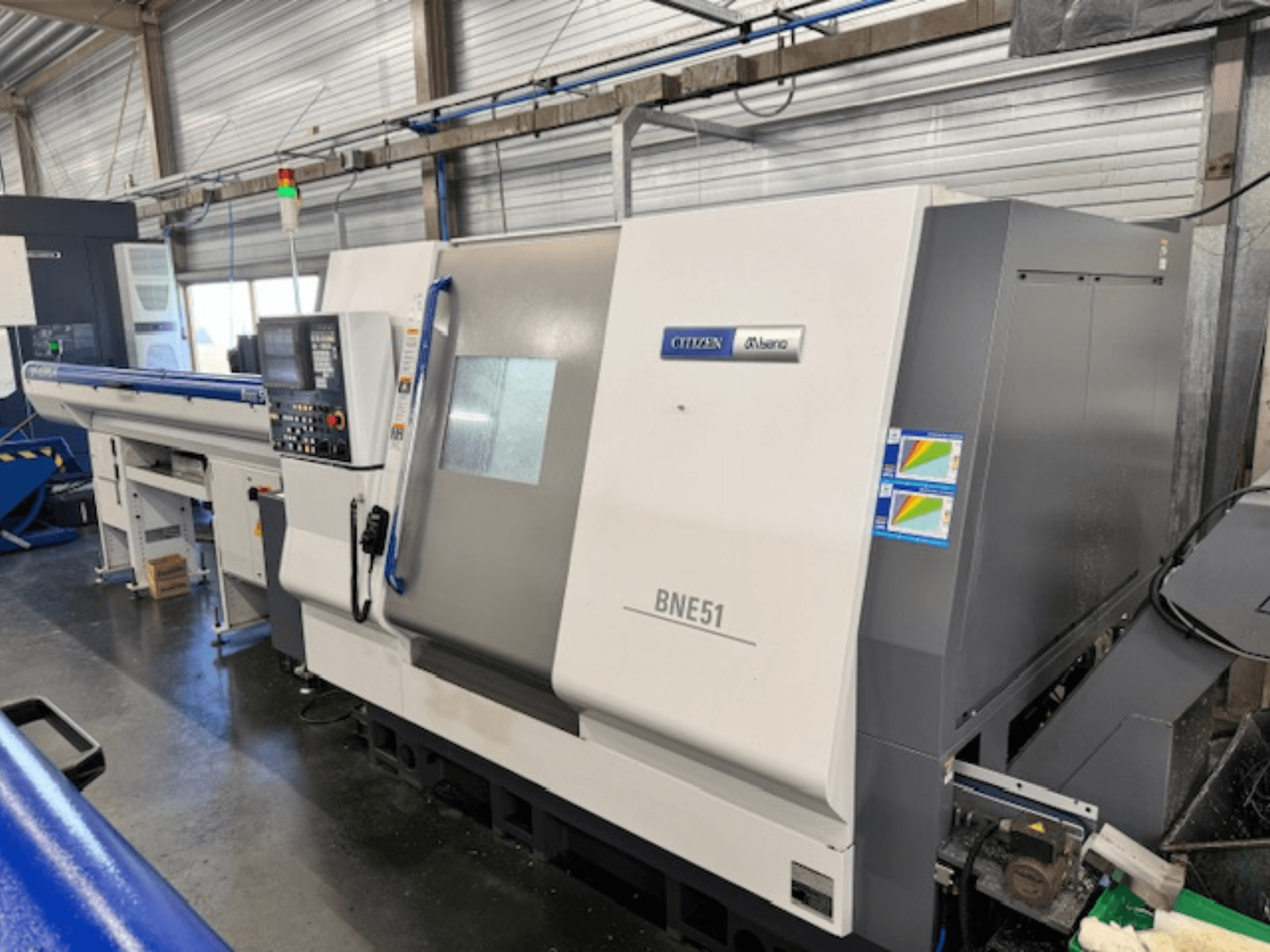

This 8-axis Citizen BNE-51MSY was manufactured in 2018. It features a maximum bar diameter of Ø 51 mm and a spindle speed of 5,000 min-1. The machine includes 12 turret stations and a slide stroke of 175 mm in the X1 direction. If you are looking to get high-quality turning capabilities, consider the Citizen BNE-51MSY horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Citizen
- year: 2018
- MODEL: BNE-51MSY
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Citizen BNE-51MSY
Control Unit
- Control Brand: FANUC
- Control Model: Series 31i-B 2
Dimensions
- Machine Weight: 7800 kg
Movement
- Number of Axes: 8
- X-axis Travel: 175 mm
- Y-axis Travel: 80 mm
- Z-axis Travel: 380 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 15 kW
- Spindle Speed: 5000 RPM
Additional Information
Maximum Bar Diameter (SP1): Ø 51 mm
Maximum Bar Diameter (SP2): Ø 42 mm
Spindle Speed (SP1/SP2): 5,000 min-1
Spindle Motor (SP1): 15/11 kW (15min./cont)
Spindle Motor (SP2): 5.5/3.7 kW (15min./cont)
Turret Stations: 12 ST. (HD1) / 12 ST. (HD2)
Revolving Tool Motor: 2.2 kW
Revolving Tool Torque: 20 Nm
Revolving Tool Speed: Max. 6,000 min-1
Slide Stroke (X1/Z1): 175 mm / 380 mm
Slide Stroke (X2/Z2): 145 mm / 175 mm
Slide Stroke (Y1): ± 40 mm
Slide Stroke (B): 450 mm
Rapid Feed Rate (X1/Z1): 18 m/min / 20 m/min
Rapid Feed Rate (Y1): 12 m/min
Power Supply Capacity: 44 KVA
Voltage: AC 200/220 V
Coolant Tank Capacity: 350 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
