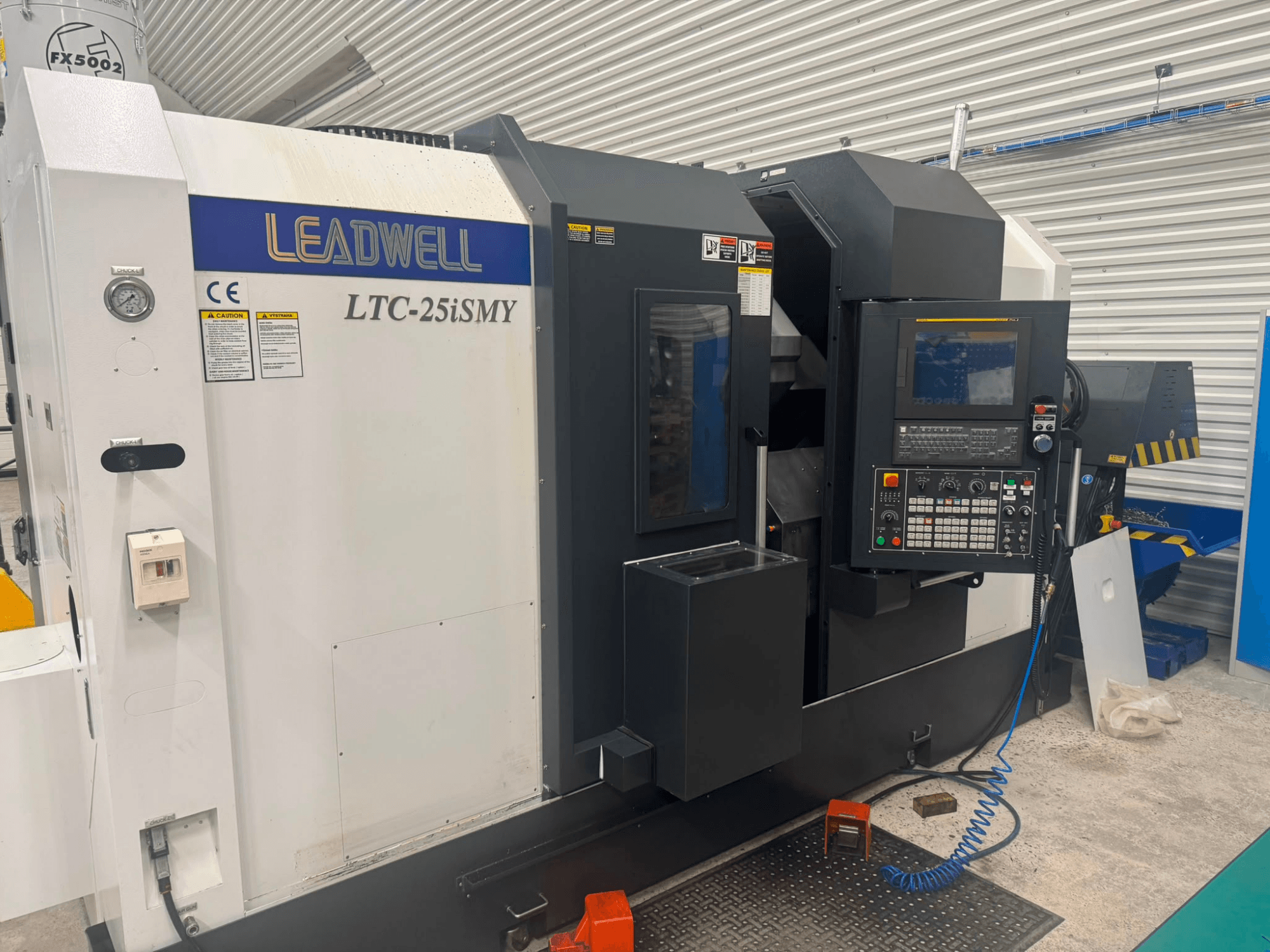

Leadwell - LTC-25iSMYSK-TUR-LEA-2025-00001

• Capacities

  • Max. turning diameter above the bed: 590 mm

  • Max. turning diameter above the transverse support: 590 mm

  • Max. turning diameter: 430 mm

  • Max. turning length: 770 mm

  • Max. rod diameter: 78 mm

  • Max. workpiece weight: 39 kg

• Axes and travels

  • Z2 (counterspindle) travel: 780 mm

  • Min. C1 axis positioning increment (main spindle): 0.001

  • Min. C2 axis positioning increment (counterspindle): 0.001

• Main spindle

  • Chuck size: 254 mm

  • Spindle taper: A2-8

  • Spindle bore: 89 mm

  • Spindle drive type: Fanuc A P30/6000i

• Counterspindle

  • Max. speed: 4000 rpm

  • Chuck size: 210 mm

  • Taper: A2-6

  • Max. rod diameter: 66 mm

  • Power: 15 kW

  • Spindle drive type: Fanuc A 12/7000i

• Turret / tooling (EWS tool head)

  • Clamping system diameter: BMT65

  • Number of positions: 12

  • Max. external tool size: 25 x 25 mm

  • Max. internal tool clamping diameter (threading): 40 mm

  • Neighbor tool change time: 0.8 s

  • Max. tool change time: 1.3 s

  • Max. speed of driven tools (axial): 4000 rpm

  • Max. speed of driven tools (radial): 4000 rpm

  • Rotary tool drive power: 4.5 kW

• Rapid feeds

  • X: 15,000 mm/min

  • Z: 20,000 mm/min

  • Y: 7,500 mm/min

  • Z2 (counterspindle): 20,000 mm/min

• Control

  • Fanuc 0iTF PLUS with 15" LCD, Manual Guide i, Ethernet

• Machine input: 65 kVA

Additional equipment

• Collet clamping

• Hydraulic chuck 254/3 (10"), bar max Ø77 mm, 3500 rpm

• Renishaw HPMA tool probe (motorized arm)

• High-pressure coolant 20 bar through tool head

• Workpiece blow-off nozzle above main spindle

• Workpiece blow-off nozzle above counterspindle

• Cassette chip conveyor with chip container

• Counterspindle with chuck 203/3

• Workpiece removal shovel with container

• Preparation/interface for bar feeder

• Beacon alarm (machine status light)

• Oil separator for coolant emulsion (from lost lubrication)

• 3 pcs axial rotary unit BMT65

• 3 pcs radial rotary unit BMT65

• 4 pcs double-sided holder for external turning BMT65

• 4 pcs double-sided holder for internal turning BMT65

• 1 pc single-sided holder for internal turning

• Filtermist extraction FX5002
