EMCO - Concept Turn 55DE-TUR-EMC-2006-00003

Rs. 1,061,515
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

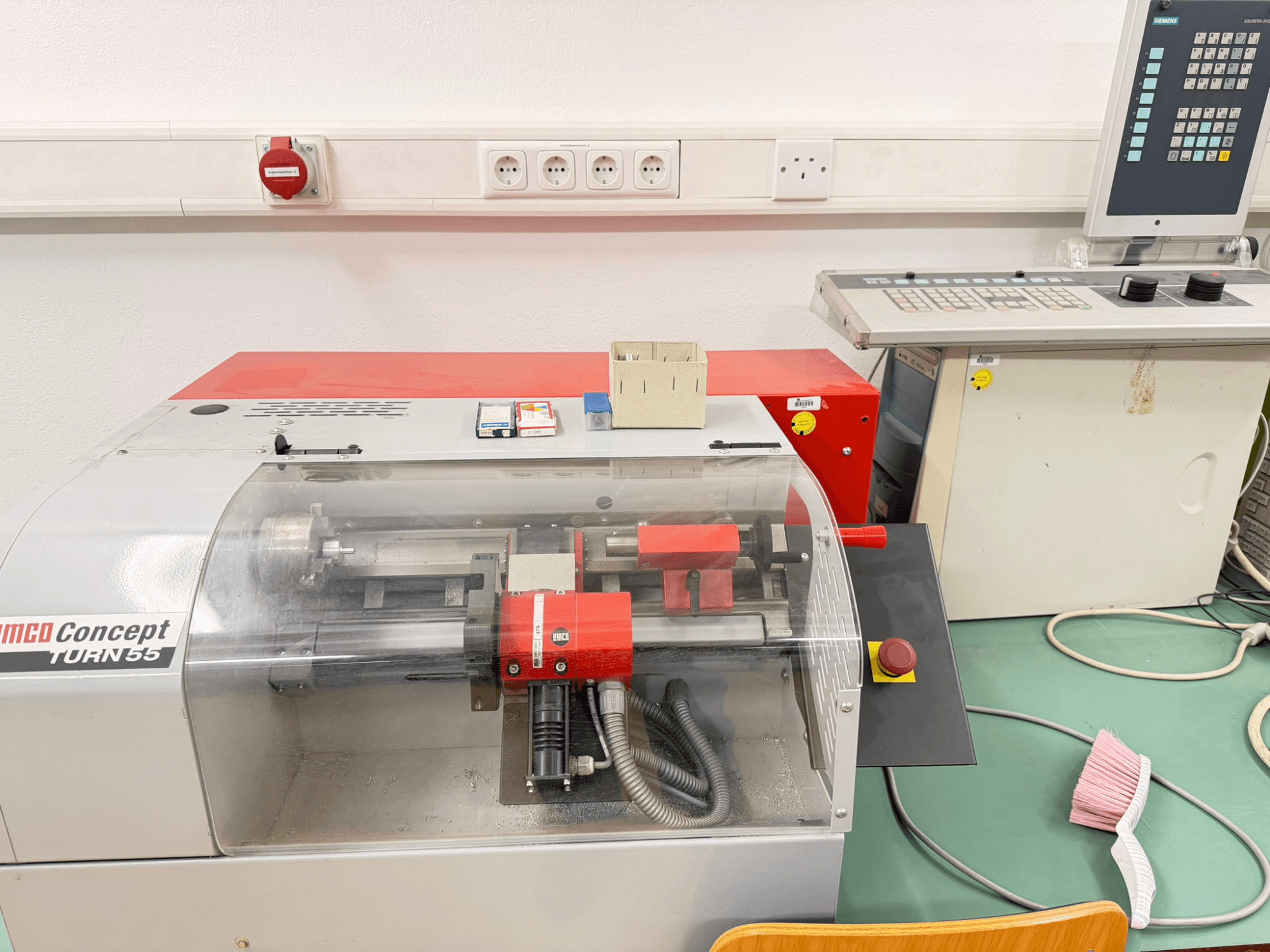

Horizontal turning machine manufactured in 2006. This EMCO Concept Turn 55 features a maximum turning diameter of 52 mm and a maximum part length of 215 mm. It includes a tool turret with 8 positions and a spindle speed range of 120–4000 rpm. If you are looking to get high-quality turning capabilities, consider the EMCO Concept Turn 55 machine we have for sale. Contact us for further details.

Overview

  • brand: EMCO
  • year: 2006
  • MODEL: Concept Turn 55
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • control unit brand: SIEMENS

Technical Information - EMCO Concept Turn 55

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik 810/840D Turn/Mill control

Dimensions

  • Machine Height: 400 mm
  • Machine Weight: 85 kg

Movement

  • Number of Axes: 2
  • X-axis Travel: 48 mm
  • Z-axis Travel: 236 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: No
  • Spindle Power: 0.75 kW
  • Spindle Speed: 4000 RPM

Additional Information

  • Working area

    • Swing over bed: 130 mm

    • Swing over cross slide: 60 mm

    • Maximum turning diameter: 52 mm

    • Maximum part length: 215 mm

  • Spindle/Workholding

    • Spindle connection: factory standard

    • Spindle bore: 16 mm

    • Chuck diameter: 74 mm

    • Through hole in chuck: 15 mm

    • Automatic chuck diameter: 76 mm

    • Mechanical speed steps: 2

    • Maximum torque: 14 Nm

  • Tooling

    • Tool turret positions: 8

    • Tool holders (internal/external): 4/4

    • Tool shank size: 12 x 12 mm

    • Boring bar diameter: 10 mm

  • Feeds/Drives/Accuracy

    • Feed drives: 3-phase stepper motors; resolution 0.0005 mm

    • Rapid traverse X/Z: 2 m/min

    • Working feed X/Z: 0–2 m/min

    • Feed force X/Z: 1000 N

    • Position scatter X: 0.008 mm

    • Position scatter Z: 0.008 mm

  • Tailstock

    • Quill stroke: 35 mm

    • Quill diameter: 22 mm

    • Taper: MK1

    • Automatic tailstock quill stroke: 15 mm

  • Lubrication

    • Guideways: oil

    • Other lubrication points: grease

  • Pneumatics

    • Supply pressure: 6 bar

    • Connection: 10 mm

  • Electrical

    • Power supply: 115/230 V

    • Voltage tolerance: +5/-10 %

    • Frequency: 50/60 Hz

    • Max fuse: 12 A

  • Dimensions/Weight/Noise

    • Axis height above floor: 320 mm

    • Footprint: 840 x 695 mm

    • Sound pressure level: 65 dB(A)

  • Slight corrosion on machine components (common for comparable machines)

  • 4+4 station tool turret

  • Tailstock MK1 including quill and center point

  • 3-jaw chuck installed, no additional jaw sets included

  • Collets available, but no collet chuck

  • No drill chuck (MK1) and no drill bits included

  • Tools available as shown in images

  • 5.5 mm Allen key included

  • Siemens Sinumerik 810/840D Turn/Mill control (PC & CD)

  • License key included, likely transferable

  • Operating manual and machine documentation included

  • Data carriers included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
