EMCO - EmcoTurn 365 MC AT-TUR-EMC-1997-00001

Name: EMCO EmcoTurn 365 MC
Brand: EMCO
SKU: AT-TUR-EMC-1997-00001
Price: 1674120 INR
Availability: InStock

Rs. 1,674,120

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO EmcoTurn 365 MC For Sale | gindumac.com

Show in original language

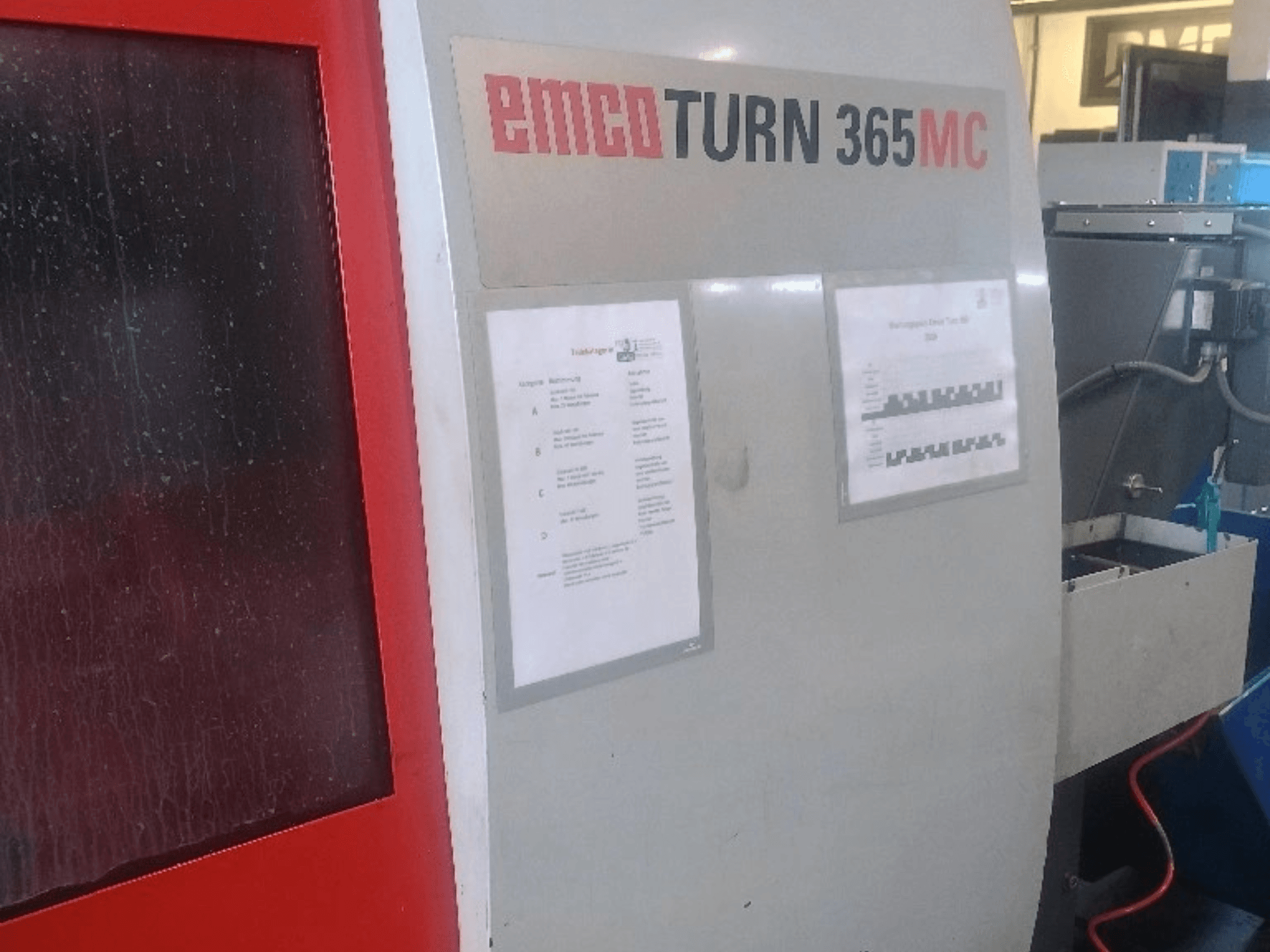

Horizontal turning machine manufactured in 1999. This EMCO EmcoTurn 365 MC features a maximum turning diameter of 310 mm and a turning length of up to 610 mm. It includes a powerful main spindle speed range of up to 5000 rpm and a tool holder with 12 powered stations. If you are looking to get high-quality turning capabilities, consider the EMCO EmcoTurn 365 MC machine we have for sale. Contact us for further details.

Overview

brand: EMCO
year: 1999
MODEL: EmcoTurn 365 MC
production hours: 46644
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO EmcoTurn 365 MC

Control Unit

Control Brand: SIEMENS

Dimensions

Machine Height: 1872 mm
Machine Length: 3000 mm
Machine Weight: 4000 kg
Machine Width: 1910 mm

Movement

Number of Axes: 3
X-axis Travel: 210 mm
Z-axis Travel: 610 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 18 kW
Spindle Speed: 5000 RPM
Taper Size: VDI 30
Tool Stations: 12

Additional Information

- Working Hours: 46644 h

- Max. turning diameter: 310 mm (overall diameter over bed up to 600 mm)

- Max. turning length / workpiece length: 520 mm to 610 mm

- Max. bar capacity: 45 mm

- Main Spindle Speed Range: up to 4200–5000 rpm

- Spindle Nose: A6

- Spindle Bore: 65 mm

- Voltage / Frequency: 400V~ 3/PE 50/60Hz

- Maximum Current (Imax): 59 A

- Machine Current (IM): 27 A

- Short Circuit Current (IK): 6 kA

- Number of Tool Stations: 12 stations (all powered)

- Speed of Driven Tools: up to 5000 rpm

- Power of Driven Tools: approx. 5 kW

- Control Unit: Siemens

- Included Accessories / Equipment: Kupa Bar Feeder, Knoll Coolant Tank / Filter System (Type 240 S-1, Year 2015), 2 pcs. Chucks, Reduction Tubes / Sleeves, Manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
