DN SOLUTIONS - DNM 5705 SI-MIL-DOO-2024-00002

Name: DN SOLUTIONS DNM 5705
Brand: DN SOLUTIONS
SKU: SI-MIL-DOO-2024-00002
Price: 10047374 INR
Availability: InStock

Rs. 10,047,374

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Dnm 5705 For sale | gindumac.com

Show in original language

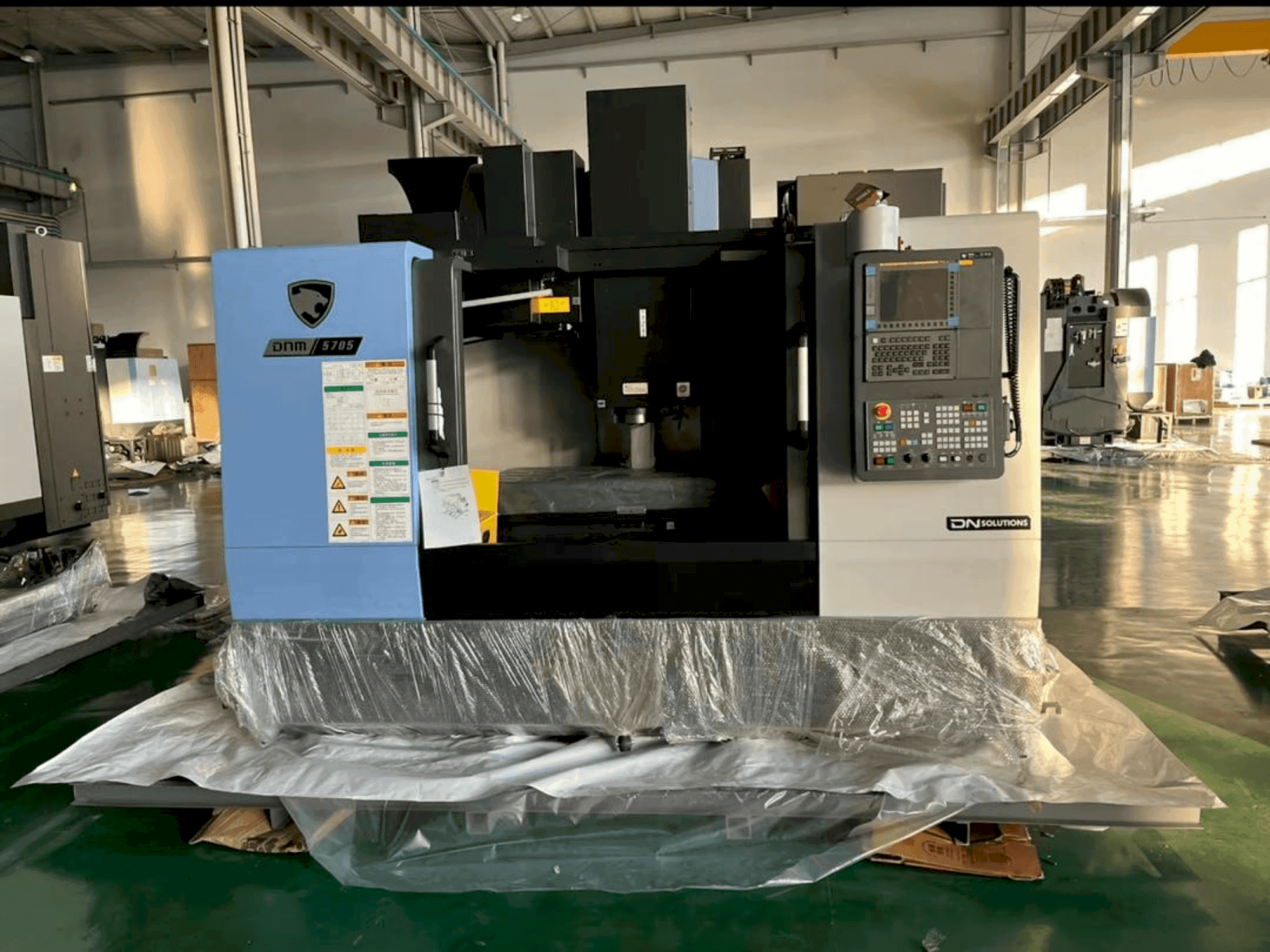

This 3-axis DOOSAN DNM 5705 vertical machining center was manufactured in 2024. It features a robust table size of 1300 x 570 mm with a loading capacity of 1000 kg, and a high spindle speed range of 8,000 to 12,000 rpm. Equipped with a BT40 tool shank type and a rapid traverse rate of 36/36/30 m/min for X/Y/Z axes, it ensures efficient machining. Ideal for precision tasks, buy this DOOSAN DNM 5705 vertical machining center. Contact us for further details regarding this machine.

Overview

brand: DN SOLUTIONS
year: 2024
MODEL: DNM 5705
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DN SOLUTIONS DNM 5705

Control Unit

Control Brand: FANUC
Control Model: OiPLUS

Dimensions

Machine Depth: 3110 mm
Machine Height: 2985 mm
Machine Weight: 6500 kg

Movement

Number of Axes: 3
X-axis Travel: 1050 mm
Y-axis Travel: 570 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

Feed motor (X/Y/Z): 1.8/1.8/3 kW
Power supply: 30 kVA
Coolant tank capacity: 380 l

Machine Benefits

Qualitative Machine Benefits

Robust control with fanuc oiplus

Technical Machine Benefits

Max. Tool diameter: ￠80 mm
Max. Tool diameter adjacent to empty space: ￠125 mm
Max. Tool length: 300 mm
Max. Tool weight: 8 kg
Tool change time (tool-to-tool): 1. 2 s
Tool change time (chip-to-chip): 3. 2 s
High precision and fast tool changes

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
