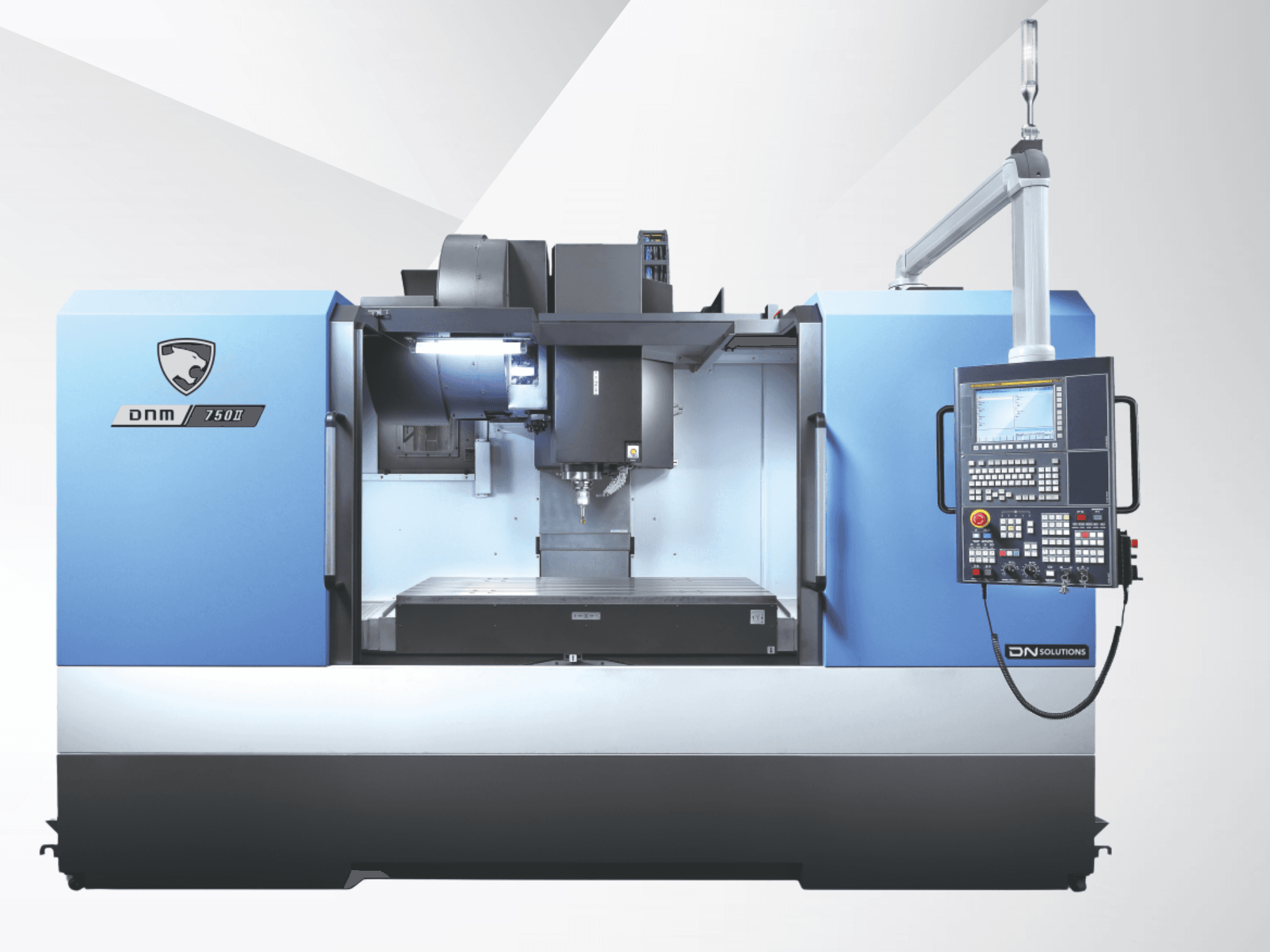

This 3-axis DN SOLUTIONS DNM 750 II was manufactured in 2023. It features an impressive X-axis travel of 1,630 mm, Y-axis travel of 762 mm, and Z-axis travel of 650 mm. The machine includes a robust table size of 1,800 × 750 mm and a maximum table load of 1,500 kg. If you are looking to get high-quality machining capabilities, consider the DN SOLUTIONS DNM 750 II vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2023
- MODEL: DNM 750 II
- application type: Milling
- Location: Portugal
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS DNM 750 II
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Table Load: 1500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1630 mm
- Y-axis Travel: 762 mm
- Z-axis Travel: 650 mm
Technical Specification
- Spindle Power: 28 kW
- Spindle Speed: 12000 RPM
- Tool Stations: 30
Additional Information
15" color touchscreen display
Absolute feedback system
CE certified
Metric configuration
Power supply: 3 Phase AC 380V / 50Hz
Table size: 1,800 × 750 mm
Spindle motor power: 28 / 15 / 11 kW
Spindle taper: BIG PLUS BT40
Spindle air curtain
Tool holder type: BIG PLUS BT40
Flood coolant pump: 0.4 kW / 0.15 MPa / 40 L/min
Through spindle coolant: 4.0 kW / 2.0 MPa (20 bar)
Machine enclosure: Full splash guard with top cover
Tool load monitoring
Portable MPG handwheel
Additional axis preparation (1 axis wiring & pneumatics)
Embedded Ethernet
Program storage: 5,120 m (2 MB)
1,000 program capacity
Data server & memory card: 1 GB
AICC II – 200 blocks
iHMI easy operating system (EZI & machining cycle)
Built-in transformer
Electrical line filter
Additional equipment
Hinged belt chip conveyor (right side)
Coolant tank on right side
Belt-type oil skimmer
Coolant gun
Air blower
Air gun
Machine lifting hooks
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
