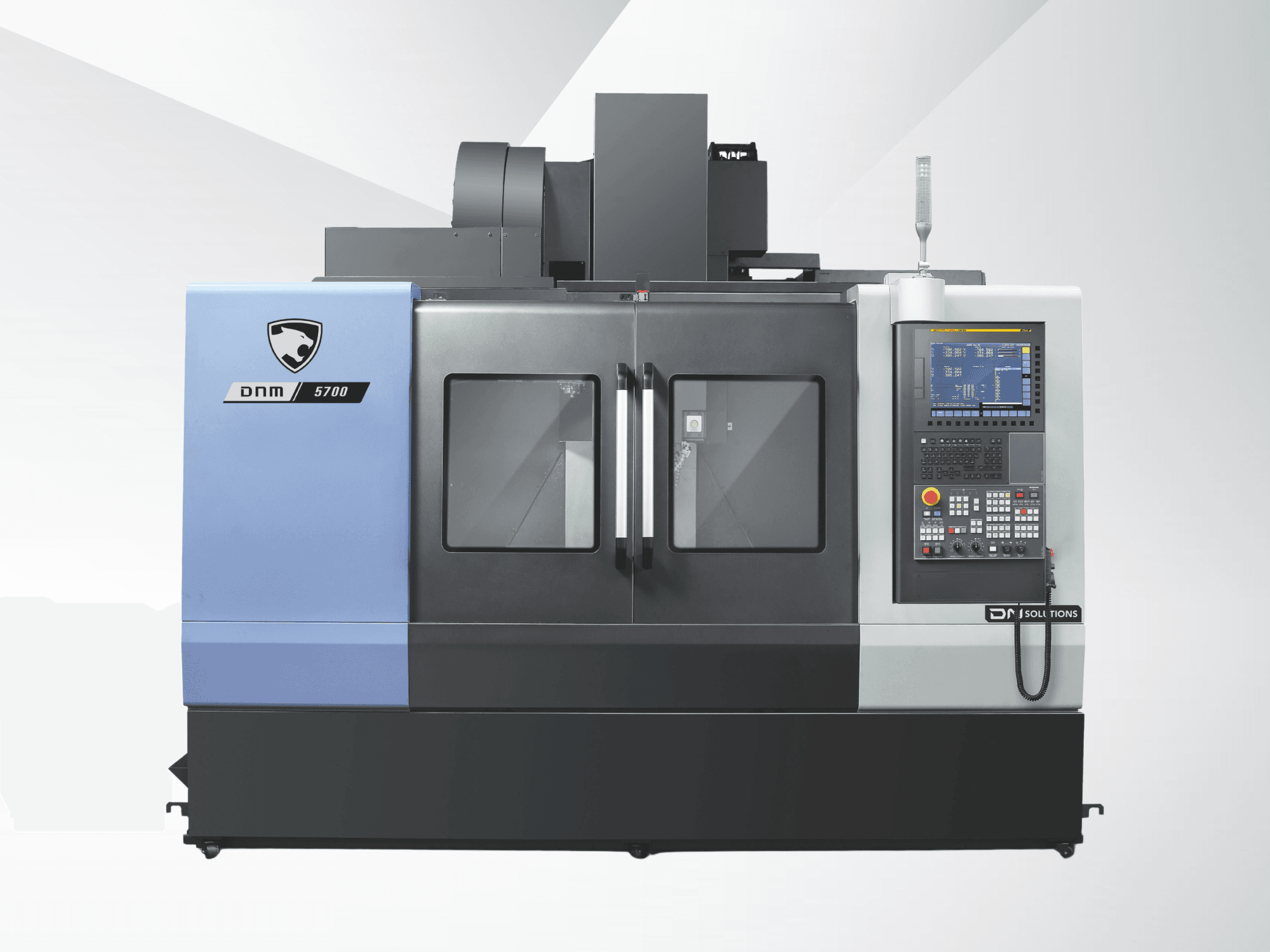

This 3-axis DN SOLUTIONS DNM 5700 was manufactured in 2024. It features an X-axis travel of 1,050 mm, Y-axis travel of 570 mm, and Z-axis travel of 510 mm. The machine includes a robust table size of 1,300 × 570 mm and a maximum table load of 1,000 kg. If you are looking to get high-quality machining capabilities, consider the DN SOLUTIONS DNM 5700 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2024
- MODEL: DNM 5700
- application type: Milling
- Location: Portugal
- machine type: Vertical Machining Centre
Technical Information - DN SOLUTIONS DNM 5700
Dimensions
- Table Load: 1000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1050 mm
- Y-axis Travel: 570 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 12000 RPM
- Tool Stations: 30
Additional Information
15" color touchscreen display
Absolute feedback system
CE certified
Metric configuration
Power supply: 3-phase AC 380V / 50Hz
Table size: 1,300 × 570 mm
Spindle taper: BIG PLUS BT40
Spindle motor power: 15 / 11 kW
Spindle head cooling system
Tool magazine type: geared driven
Tool holder: BIG PLUS BT40
Rapid traverse rates: X/Y 36 m/min, Z 30 m/min
Through-spindle coolant: 2.0 MPa (20 bar), 4.0 kW
Flood coolant pump: 0.4 kW, 0.15 MPa, 40 L/min
Built-in transformer
Electrical line filter
Ethernet interface
Data server & memory card: 1 GB
Program storage capacity: 5,120 m (2 MB)
1,000 program capacity
AICC II – 200 blocks
iHMI easy operating system (EZI & Machining Cycle)
Additional equipment
Hinged belt chip conveyor (right side)
Belt-type oil skimmer
Coolant gun
Air blower
Air gun
Portable MPG handwheel
Additional axis preparation (1-axis wiring & pneumatics)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
