Brother - Speedio M 300 X3SI-MIL-BRO-2024-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Brother Speedio M 300 X3 For Sale | gindumac.com

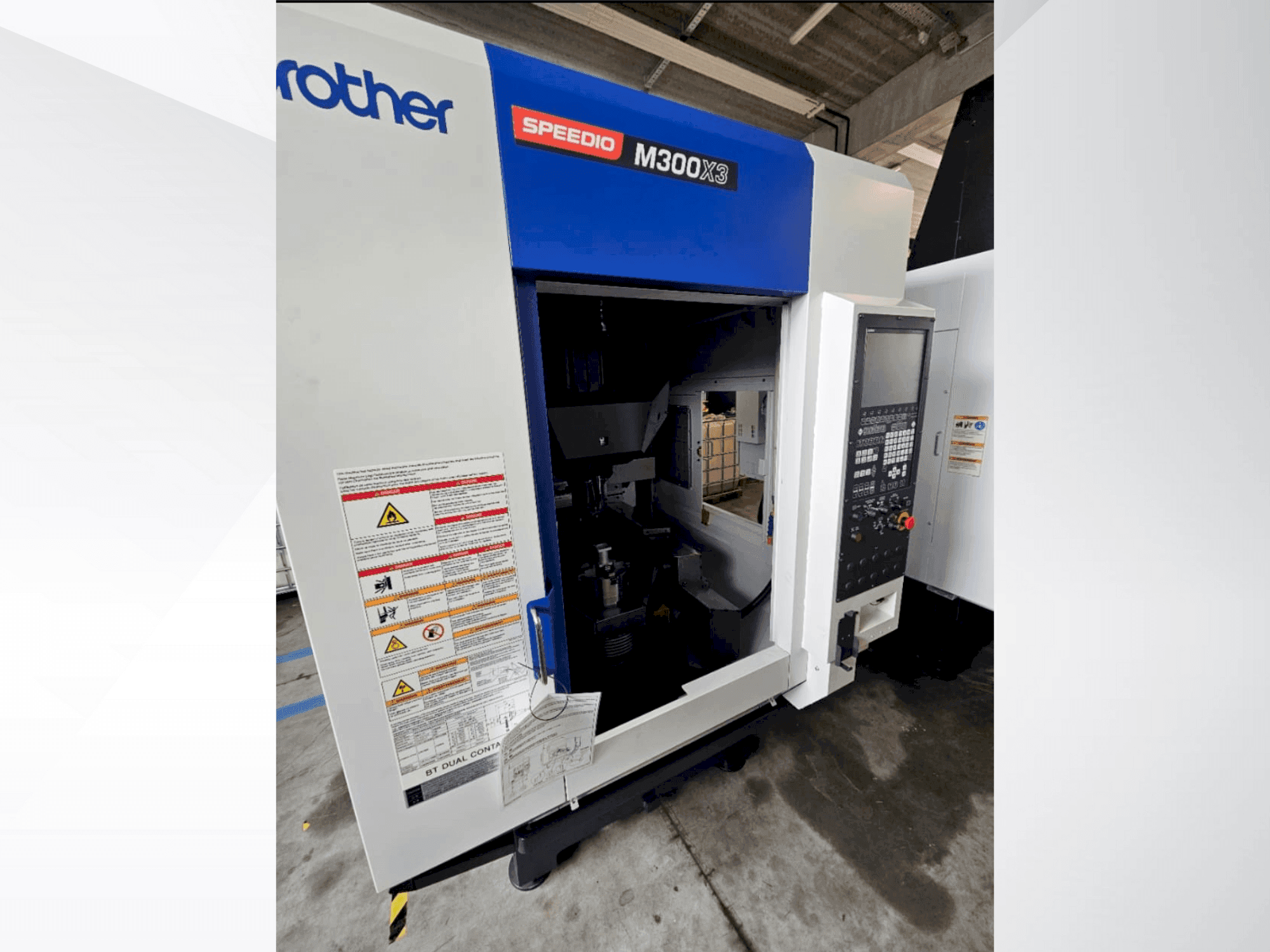

This 5-axis Brother Speedio M 300 X3 vertical machining center was manufactured in 2024. It features a CNC-C00 control unit, with travel dimensions of 300 mm on the X-axis, 440 mm on the Y-axis, and 305 mm on the Z-axis. The machine supports a spindle speed of up to 16,000 min⁻¹ and a rapid traverse rate of 50 m/min. It has a tool storage capacity of 22 tools. Consider the opportunity to buy this Brother Speedio M 300 X3 vertical machining center. Contact us for more information.
Overview
- brand: Brother
- year: 2024
- MODEL: Speedio M 300 X3
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- control unit brand: BROTHER
Technical Information - Brother Speedio M 300 X3
Control Unit
- Control Brand: BROTHER
- Control Model: CNC COO
Movement
- A-axis Max: 120°
- A-axis Min: -30°
- B-axis Max: 360°
- X-axis Travel: 300 mm
- Y-axis Travel: 440 mm
- Z-axis Travel: 305 mm
Additional Information
Additional equipment
- Tool Holder: 7/24 tapered No. 30 / Tool Storage Capacity: 22 tools / Tool Shank Type: MAS-BT30
- Tool Dimensions: Diameter: 100 mm / Length: 200 mm / Weight: 3 kg
- Tool-to-Tool Time: 0.8 sec
- Chip-to-Chip Time: 1.6 sec
- BT Dual Contact Spindle (BIG-PLUS): Optional / Coolant Through Spindle (CTS): Optional
Machine Benefits
Technical Machine Benefits
- Table distance (top to spindle nose): 200 mm to 505 mm / table loading capacity: 75 kg / table load inertia: table side: 0. 58 kg·m², tail side: 0. 04 kg·m²
- Rapid traverse rate (x, y, z): 50 m/min
- Spindle speed: 16000 min⁻¹ / speed during tapping: max 6000 min⁻¹ / turning spindle speed: 1500 min⁻¹ / main spindle motor power: 10. 1/7. 0 kw
- Axis feed motor power: x, y: 1. 0 kw / z: 1. 35 kw
- Power supply: 200/210 v, 50/60 hz / continuous power capacity: 10 kva
- Positioning accuracy (bidirectional): 0. 006 mm / repeatability (bidirectional): 0. 004 mm
- Floor space: 1520 mm x 3862 mm / height: 2653 mm / weight: 2880 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
