This 3-axis Brother S1000X1 was manufactured in 2018. It features impressive travels of 1,000 mm in the X-axis, 500 mm in the Y-axis, and 300 mm in the Z-axis. The machine includes a robust table size of 1,100 x 500 mm and a maximum table load capacity of 300 kg. If you are looking to get high-quality machining capabilities, consider the Brother S1000X1 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Brother
- year: 2018
- MODEL: S1000X1
- application type: Milling
- Location: Turkey
- machine type: Vertical Machining Centre
Technical Information - Brother S1000X1
Dimensions
- Machine Weight: 3300 kg
- Table Load: 300 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1000 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 300 mm
Technical Specification
- Max. Tool Weight: 3 kg
- Spindle Power: 10.1 kW
- Spindle Speed: 10000 RPM
- Taper Size: BT 30
- Tool Stations: 14
Additional Information

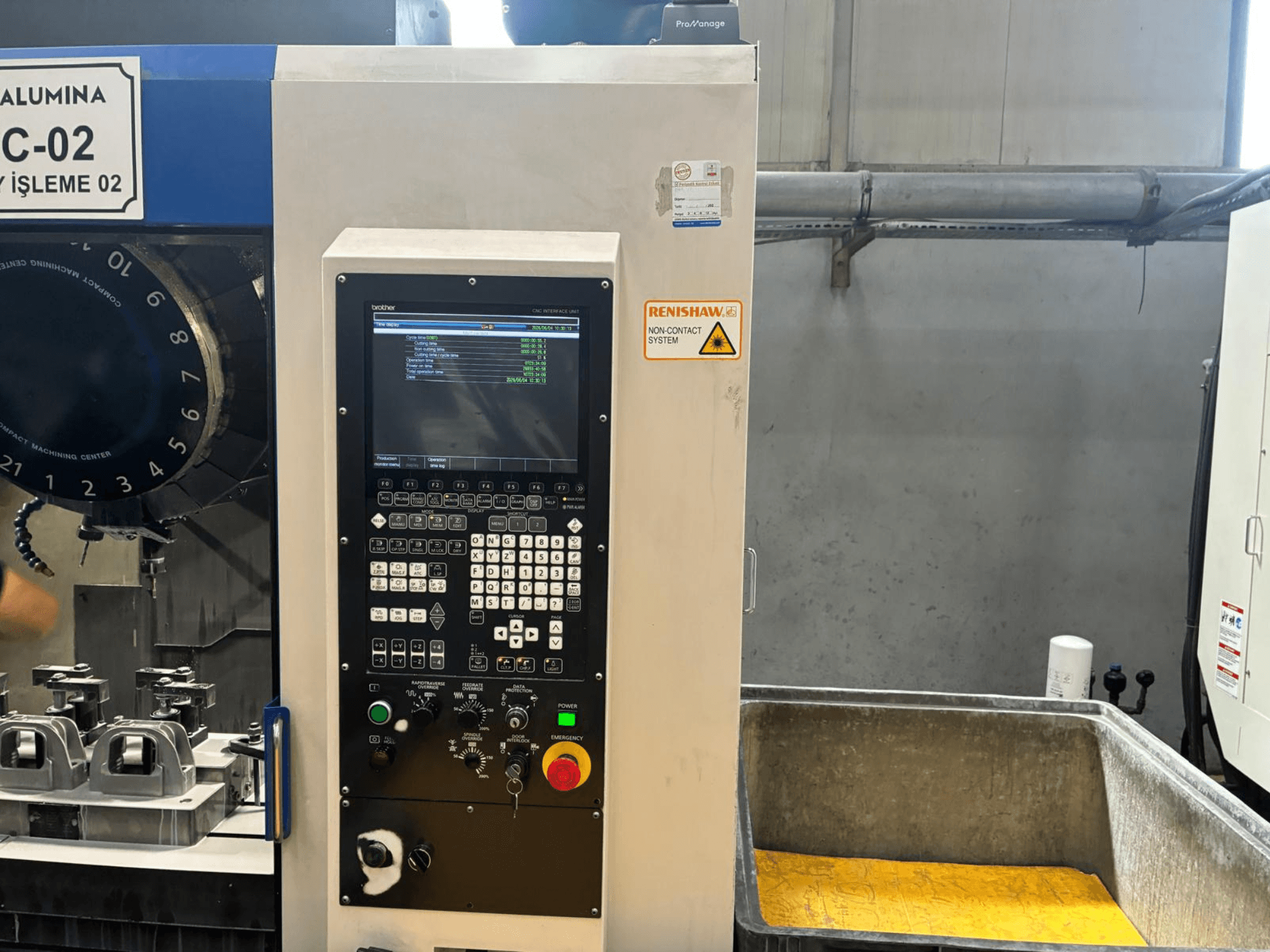

Control: Brother CNC C00, 12.1" color LCD
Table: 1,100 x 500 mm; height from floor 810 mm
Spindle: distance nose-to-table 180–480 mm; tool holder MAS BT30; pull stud MAS P30T-1
Feed rates: Rapid (X/Y/Z) 50 / 50 / 56 m/min; cutting 1–30 m/min; acceleration (X/Y/Z) 2 / 1.3 / 2.2 G
ATC: 14 tools (optional 21); max tool Ø110 mm; max length 250 mm; tool-to-tool 0.8 s; chip-to-chip 1.4 s
Accuracy: Positioning 0.006 / 300 mm; repeatability ±0.004 mm
Electrical/Air: AC 380 V, 3-phase; air 0.4–0.6 MPa
Standard features: Through-spindle coolant; rigid tapping; helical interpolation; conical interpolation; tool life management; automatic tool wear compensation; High Precision Mode BI (30-block look-ahead); High Precision Mode AIII; automatic power-off; program memory 100 MB
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
