➤ Used Brother Speedio S700 X1 For Sale | gindumac.com

Show in original language

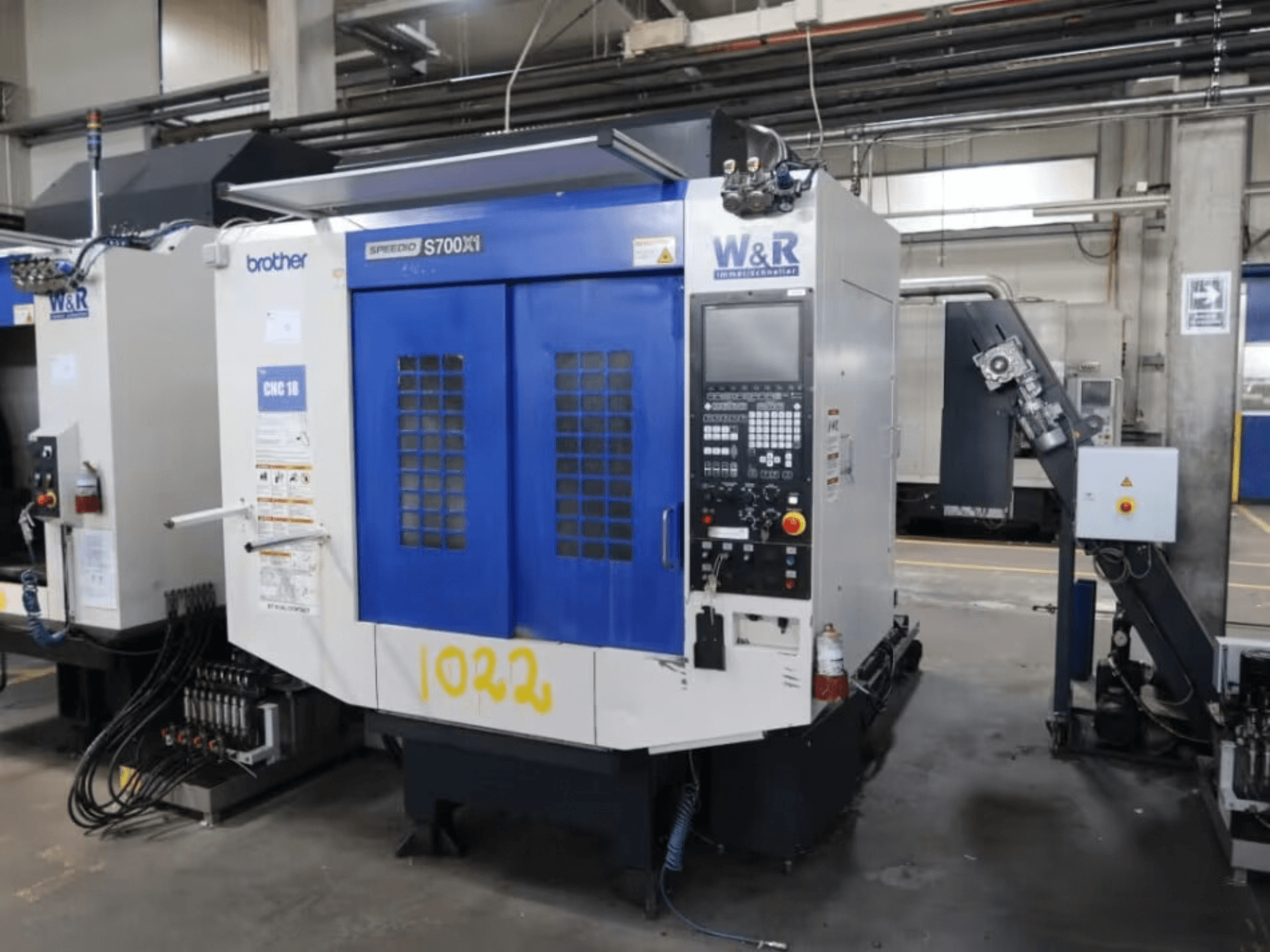

This 4-axis Brother Speedio S700 X1 was manufactured in 2018. It features an X-axis travel of 700 mm, Y-axis travel of 400 mm, and Z-axis travel of 300 mm. The machine includes a table size of 1150 x 400 mm and a maximum table load capacity of 250 kg. If you are looking to get high-quality machining capabilities, consider the Brother Speedio S700 X1 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Brother
year: 2018
MODEL: Speedio S700 X1
production hours: 17822
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - Brother Speedio S700 X1

Dimensions

Table Load: 250 kg

Movement

Number of Axes: 4
X-axis Travel: 700 mm
Y-axis Travel: 400 mm
Z-axis Travel: 300 mm

Technical Specification

Spindle Power: 4.9 kW
Spindle Speed: 16000 RPM

Additional Information

Table size: 1150 x 400 mm
Spindle taper: 7/24 No. 30 (Big-Plus) Dual Contact / BT30
Tool shank: MAS-BT / BBT30
Retention knob: MAS-P30T-2 (30°)
Tool changer: 21-tool carousel, total load capacity 35 kg
Tool change time (tool-to-tool): 0.8 s
Tool balance limit: 50 g
Rapid traverse rates: X 50 m/min, Y 50 m/min, Z 56 m/min
CNC control: CNC-C00
Machine control indicated readings (recorded 09/06/2026): Total operation time 17,822 h; Power-on time 33,212 h
Excluded equipment: External hydraulic unit

Additional equipment

Hydraulic fixing table
Renishaw broken tool detector
Transformer / power supply unit
HAKUSAN chip conveyor
Emulsion mist separator SARA UC 1 SD

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
