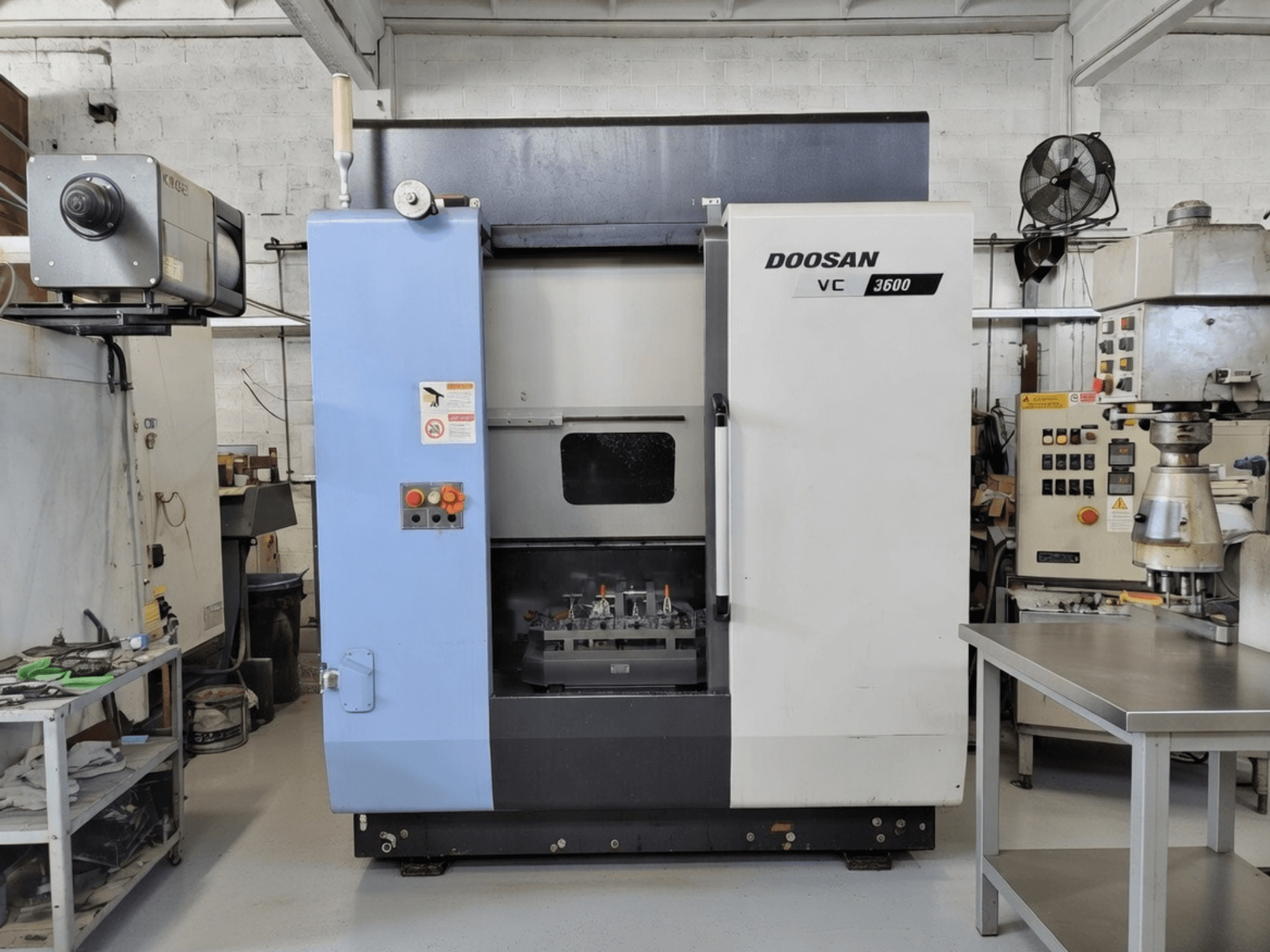

This 3-axis DOOSAN VC 3600 was manufactured in 2018. It features an X-axis travel of 520 mm, Y-axis travel of 360 mm, and Z-axis travel of 465 mm. The machine includes a table size of 650 × 375 mm and a load capacity of 500 kg. If you are looking to get high-quality machining capabilities, consider the DOOSAN VC 3600 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: VC 3600
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN VC 3600
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Table Load: 500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 520 mm
- Y-axis Travel: 360 mm
- Z-axis Travel: 465 mm
Technical Specification
- Tool Stations: 20
- Spindle Power: 7.5 kW
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Table Dimensions: 650 × 375 mm
Spindle Power: 5.5 / 7.5 kW
Total Part Count (Pezzi Totali): 114,937 parts
Operating Time (Tempo Lav): 858 h 41 min 59 sec
Cutting Time (Tempo Taglio): 3,329 h 25 min 12 sec
Power On Time (Acceso): 13,604 h 41 min
Cycle Time (Tempo Cic): 0 h 1 min 59 sec
Documentation: Instruction manuals and CE declaration of conformity included
Additional equipment
D'Andrea TRM/50 boring head attachment
Gerardi vise (345 × 120 mm)
Chip conveyor system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
