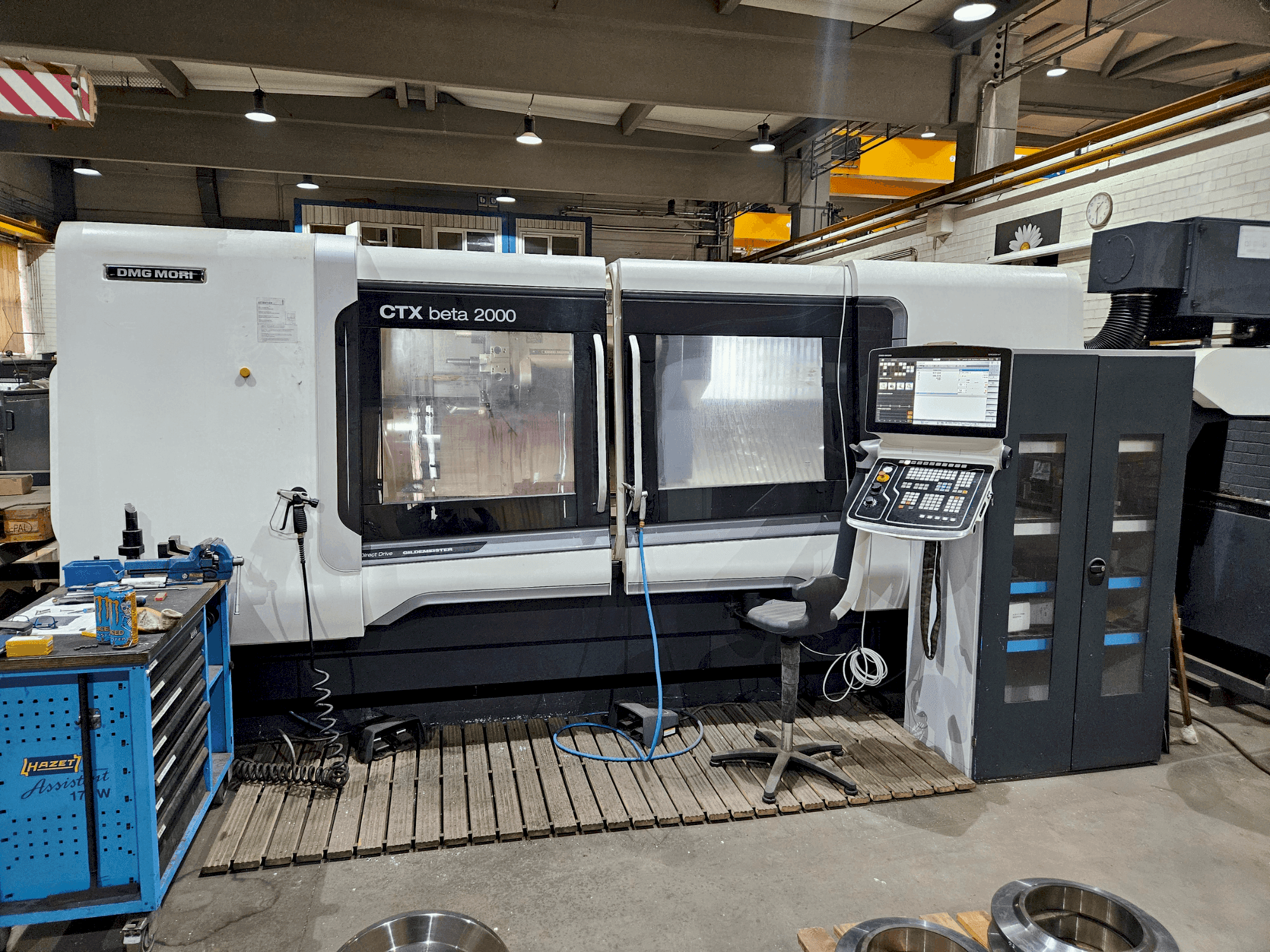

Front view of DMG MORI CTX beta 2000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI CTX beta 2000

Photo Gallery

DMG MORI - CTX beta 2000DE-TUR-DMG-2019-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CTX beta 2000 For Sale | gindumac.com

Show in original language

This 2-Axis DMG MORI CTX beta 2000 turn-mill centre was manufactured in 2019. It has a turning length of 2000 mm and a turning diameter of 600 mm. Equipped with a 12-position Sauter disc turret, VDI 50 holder, and tool drive, it also includes a hinged belt chip conveyor. If you are looking to get high-quality turning capabilities, consider the DMG MORI CTX beta 2000 machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2019
MODEL: CTX beta 2000
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DMG MORI CTX beta 2000

Control Unit

Control Brand: SIEMENS
Control Model: 840D

Movement

Number of Axes: 2

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Additional equipment

Hinged belt chip conveyor incl. coolant tank
Tool drive included
Coolant spray gun
Reinforced coolant pump 12 bar, with flow rate of 23 l/min
Mechanical oil mist separator 1100 m³/h, filter class H13
Double switching filter with filter elements, filtration group or Hydac, standard filter fineness: 50µm
Screen cleaning of the safety screen of the work area door with compressed air
DMG MORI IoT connector
DMG MORI Messenger V2
Renishaw RP3 (Tool measurement system)

Machine Benefits

Qualitative Machine Benefits

C-axis and spindle brake (hydr. )
Technology cycle alternating

Technical Machine Benefits

Turning diameter: up to 600 mm
Turning length: 2000 mm
Celos® with siemens 840d sl operate
Three-jaw power chuck with bore hole and quick jaw change system, type thw 400 - 120
Direct measuring system in the x-axis
Tailstock group with tailstock displacement through automatic coupling to the z-axis slide / the machine has a tailstock. A steady rest is not included
Hydraulic quill
Drawtube inner Ø 102 mm
Partial hollow clamping device (hydr. )

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

- CTXbeta2000-TA-V4.0-de.pdf
