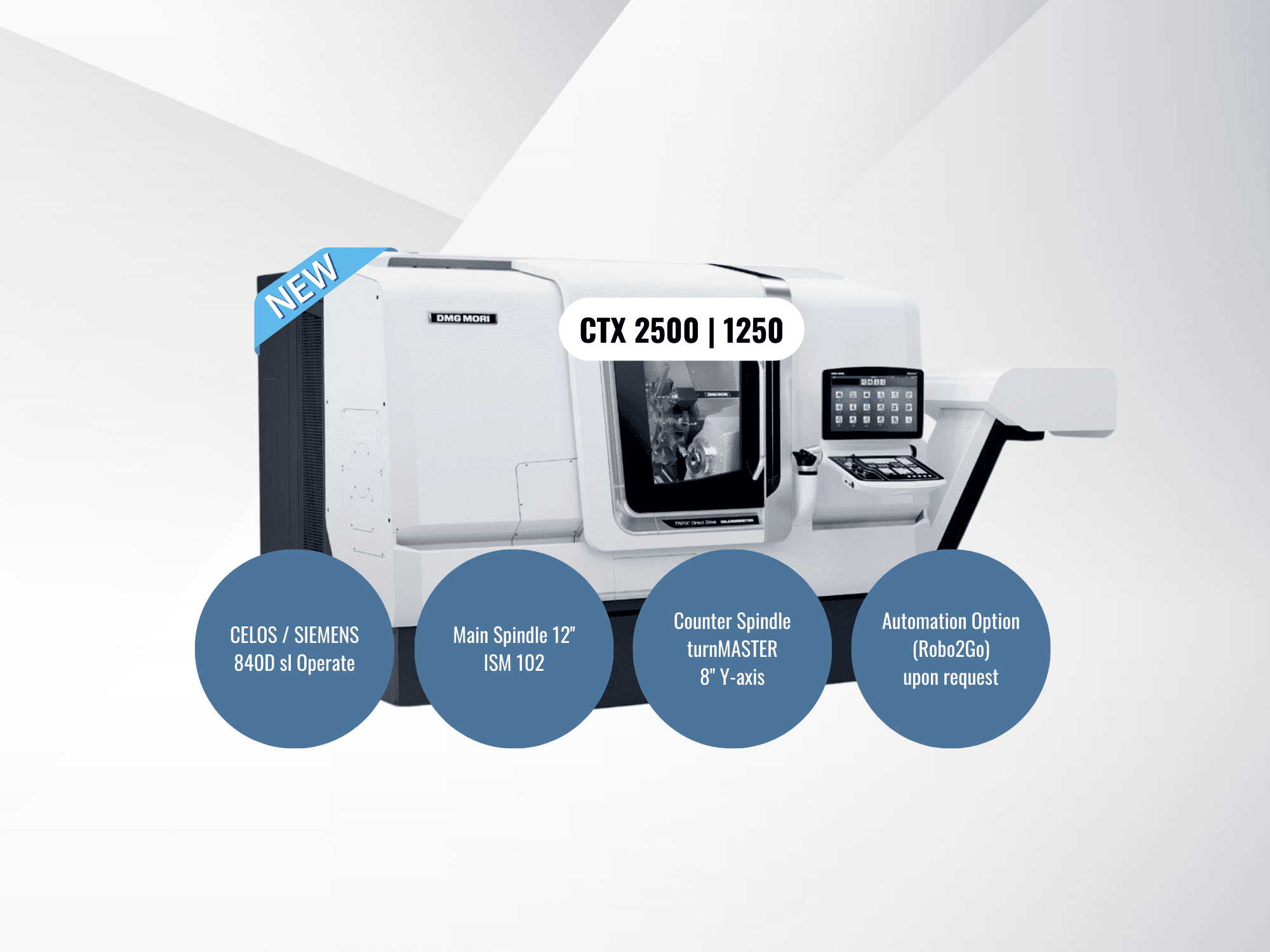

Front view of DMG MORI CTX 2500/1250  machine

DMG MORI CTX 2500/1250

DMG MORI - CTX 2500/1250

2023

Rs. 37,902,600

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG MORI CTX2500/1250 Universal Turning Centre was manufactured in 2023 and is brand new. It is available immediately in GERMANY and can be delivered right away. The machine comes with a CELOS / SIEMENS 840D sl Operate Control Unit, 12'' ISM 102 main spindle and turnMASTER 8'' Y-axis counter spindle. An automation option Robo2Go can be offered additionally upon request. See original brochure attached as PDF and video impressions of CTX2500 series in the video gallery.

Overview

  • brand: DMG MORI
  • year: 2023
  • MODEL: CTX 2500/1250
  • production hours: 0
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: DMG MORI
  • GINDUMAC ID: DE-TUR-DMG-2023-00001

Technical Information

Control Unit

  • Brand: DMG MORI
  • Model: CELOS (Siemens 840D sl Operate)

Main drive

  • Tool taper: VDI40
  • Number of axis: 5

Media

  • Oil water separator: Yes
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - Chip conveyor hinged type
    • - BFU 8/80 bar frequency controlled 980l cooler
    • - Mechanical oil mist extractor 1100m³/h
    • - Tool measuring device for main spindle manuel, diameter 400 // Measuring System for Y-axis & for Z-axis
    • - Signal lamp 4-fold coloured
    • - proTIME
    • - Enlarged container for sideway oil 6l
    • - Fixing elements
    • - Lubricating unit with electric level monitoring
    • - Tool holder package Quickchange VDI40, star, WTO

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Main spindle 12 inch ism 102 // counter spindle turnmaster 8 inch y-axis
        • - Dynamic two-pressure clamp, at the control main spindle & counter spindle
        • - 3-jaw chuck kncs-n 400-128 make smvv // set base jaws 3 pieces 0 250/260 // set base jaws 3 pieces 9 400 // 3-jaw chuck kncs-n 225-68 make smvv
        • - Tailstock function for counter spindle
        • - Steady rest slide automatically positionable // quick change system for steady rest // steady rest carrier for steady rest 25-180mm // steady rest smvv k2 clamping range 25-180 mm
        • - Double cartridge filter upper turret // filter element for double cartridge liner
        • - Coolant supply through the main spindle & counter spindle // coolant/compressed air switchable on spindle(s) & on tool carrier // coolant spray gun
        • - Minimess test point couplings for hydraulic - hydraulic filter with monitoring and pre warning - hydraulic oil ievel and temperature monitoring

      Extra information

      • - Window rinsing or the security windows - Automatic door electrical // Electrical interface for Robo2Go // Package for tropical climate // Package for instable supply // Measure mm // Additional 8 free M-commands // Easy Tool Monitor 2.0 // DXF Reader for Siemens // Excentric turning and milling operation // Tooth system milling via gear hobbing // Alternating speed // Polygon Turning // Multi-thread cycle 2.0 // Broaching // Y-Axis Parting // autoCHUCK

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
