DMG MORI - CTX 2500/1250DE-TUR-DMG-2018-00001

Name: DMG MORI CTX 2500/1250
Brand: DMG MORI
SKU: DE-TUR-DMG-2018-00001
Price: 16360050 INR
Availability: InStock

Rs. 16,360,050

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CTX 2500/1250 For Sale | gindumac.com

Show in original language

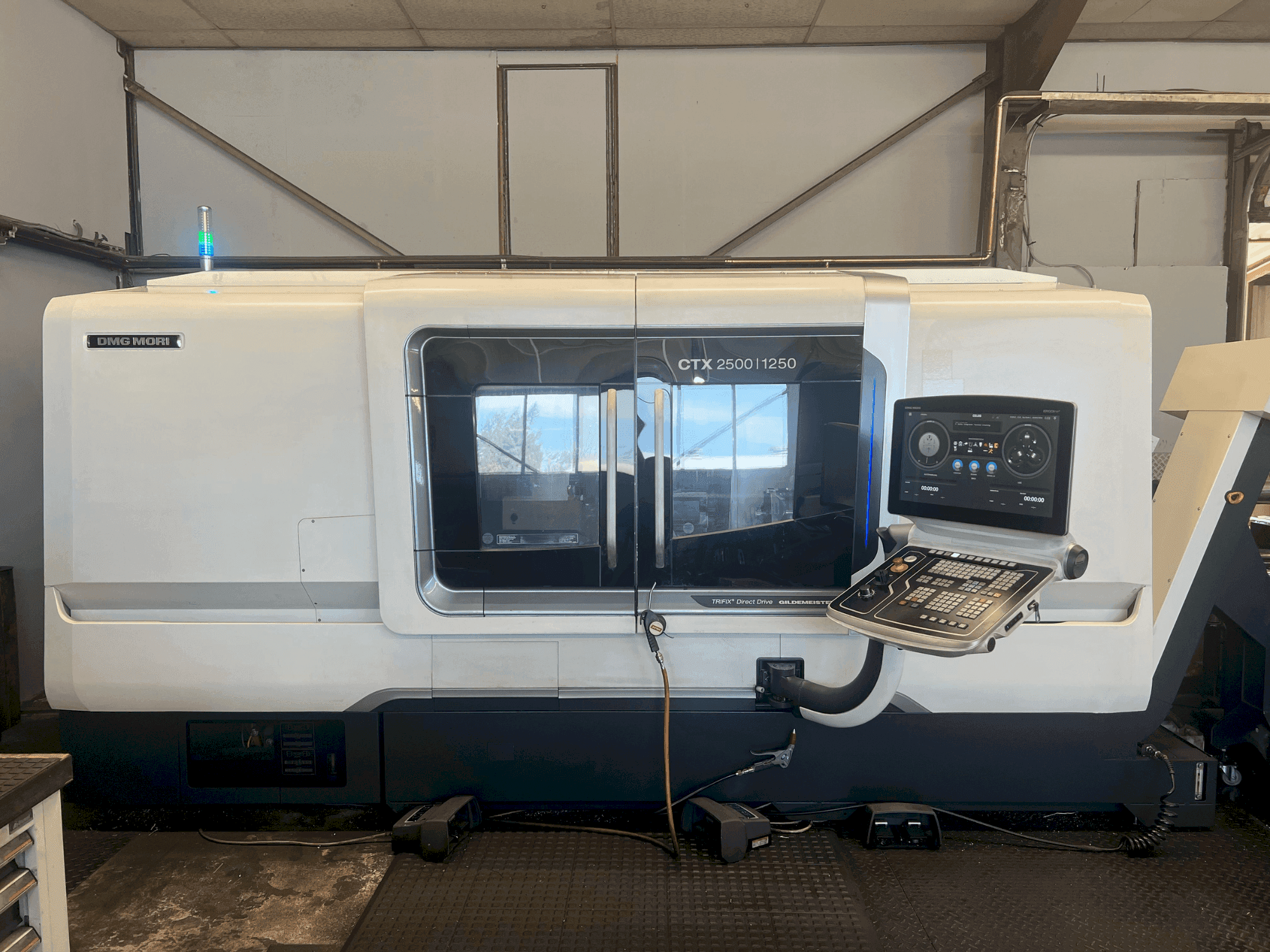

This 3-axis DMG MORI CTX 2500/1250 Horizontal turning machine was manufactured in 2018. Ideal for complex machining tasks, it combines turning and milling capabilities in one machine. Consider the opportunity to buy this DMG MORI CTX 2500/1250 Horizontal turning machine. Contact us for more information.

Overview

brand: DMG MORI
year: 2018
MODEL: CTX 2500/1250
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - DMG MORI CTX 2500/1250

General Data

Measurements width: 2070 mm
Measurements depth: 5400 mm
Measurements height: 2600 mm
Machine weight: 7800 kg

Control Unit

Brand: SIEMENS
Model: CELOS with Siemens 840D sl Operate

Main drive

Spindle speed range: up to 4000 rpm 1/MIN
Spindle motor power: 22 kW
Number of axis: 3

Additional Information

Additional equipment

Counter spindle turnMASTER 6 inch, ISM 36, Y-axis / C-axis and spindle brake (hydr.) / Reinforced coolant pump (5 - 20 bar) / Hinged belt chip conveyor / Tool measuring device in the work area (automatic, Ø 315 mm) / 12-station star turret, VDI 40 with quick-change system (TRIFIX) / Tool revolver completely replaced in December 2024 / Machine comes without chuck
Turret: Number of tool stations: 12 / Number of driven tool stations: 12 / Max. speed: up to 6000 rpm /Max. power (100% ED): 10 kW
Shank diameter according to DIN 69880: 40 mm
Off-center turning and milling / Milling of gearing using the hobbing process / Alternating speed technology cycle / Polygon turning (machining of elliptical and polygonal shapes) / Program status control / Gear skiving (technology cycle for gears) / Multi-thread cycle 2.0 (position-oriented threads) / Easy Tool Monitor 2.0 (tool monitoring system) / Energy meter for Siemens 840D sl OP CELOS / Hydraulic hollow clamping device Ø77 mm

Machine Benefits

Technical Machine Benefits

Torque (100% ed): 410 nm / max. Torque (40% ed): 525 nm
Circumferential diameter above bed: 710 mm / face travel: 260 mm / longitudinal stroke: 1345 mm
Max. Chuck diameter: 315 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
