DMG - TWIN 42 Rg1GB-TUR-DMG-2012-00001
Do you have further questions? Contact us.

Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- DMG GILDEMEISTER TWIN 42 Rg1 Lathe

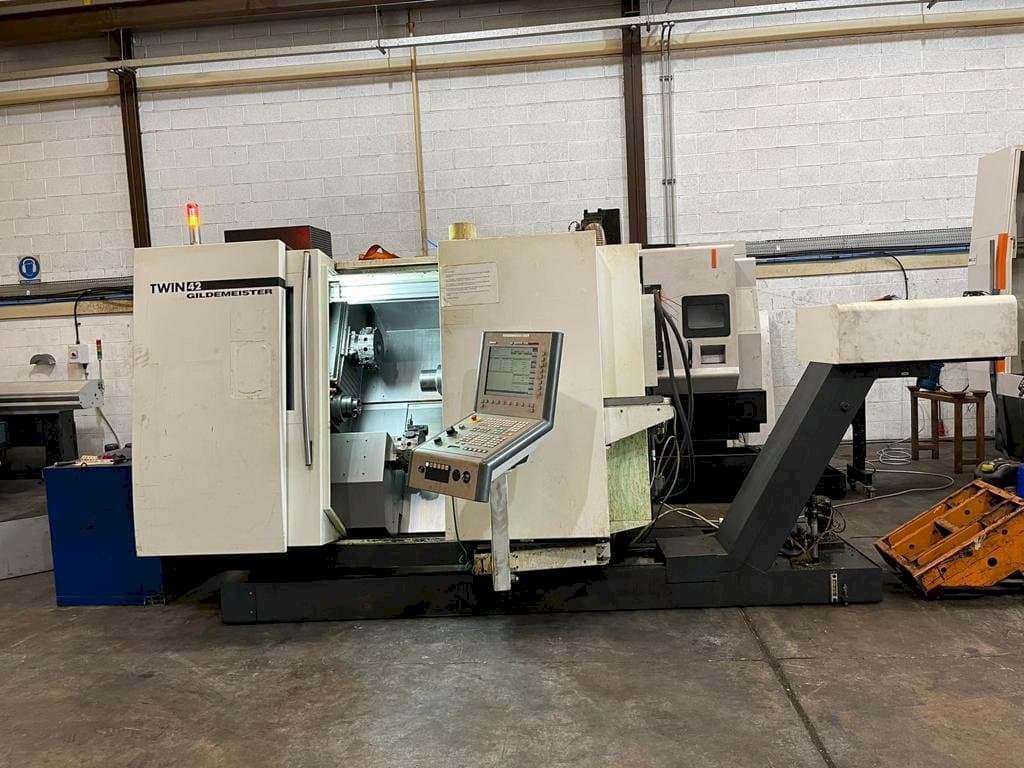

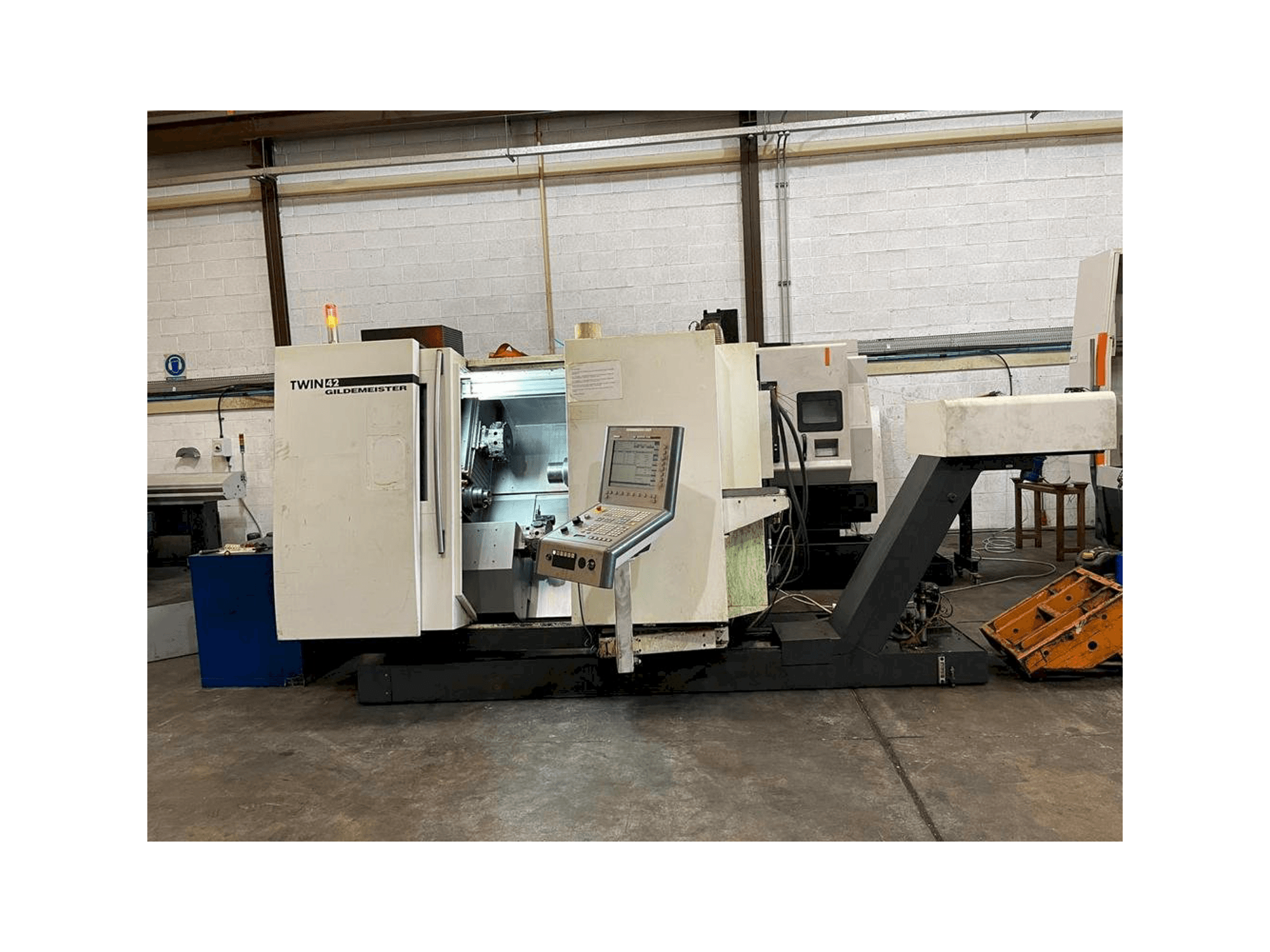

This DMG TWIN 42 Rg1 Lathe was built in Germany in 2012. It has been working for 66518 hours, of which 33791 are cutting hours. This 7 axis machine is operated through a Siemens 840D powerline control unit. It works with a spindle speed up to 7000 rpm. Includes an Iemca Boss 545E barfeed, set of tool holders, and machine manuals. It is in very good condition.
Overview
- brand: DMG
- year: 2012
- MODEL: TWIN 42 Rg1
- production hours: 33791
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: SIEMENS
Technical Information - DMG TWIN 42 Rg1
General Data
- Machine weight: 5300 KG
Control Unit
- Model: 840D Powerline
- CNC language customizable: Yes
- Brand: SIEMENS
Main drive
- Number of spindles: 1
- Spindle speed range: 7000 1/MIN
- Number of axis: 7
Movement
- Y-AXIS Movement: 50 mm
Turret
- Number of turrets: 2
Tools
- Slots in storage: 12
- Type of tool holder: VDI 30
Media
- Main electronic connection: 400V / 50Hz
- Power consumption: 65 kVA
- Chip conveyor: Yes
Additional equipment
- - Iemca Boss 545E barfeed
- - Set of tool holders
Additional Information
- Technical Machine Benefits:
- - Max. Swing: 250 mm
- - Swing over the cross-slide: 120 mm
- - Bar capacity: 42 mm
- - Sub-spindle speed: 7000 rpm
- - Milling speed: 6000 rpm
- - 12 station upper and lower turrets
- - C-axis: 0. 001 degrees
- Qualitative Machine Benefits:
- - Very good condition
- - Low hours
- - Includes machine manual
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
