DMG - CTX Beta 1250 TCCA-TUR-DMG-2010-00001

Name: DMG CTX Beta 1250 TC
Brand: DMG
SKU: CA-TUR-DMG-2010-00001
Price: 10325300 INR
Availability: InStock

Rs. 10,325,300

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG CTX Beta 1250 TC For Sale | gindumac.com

Show in original language

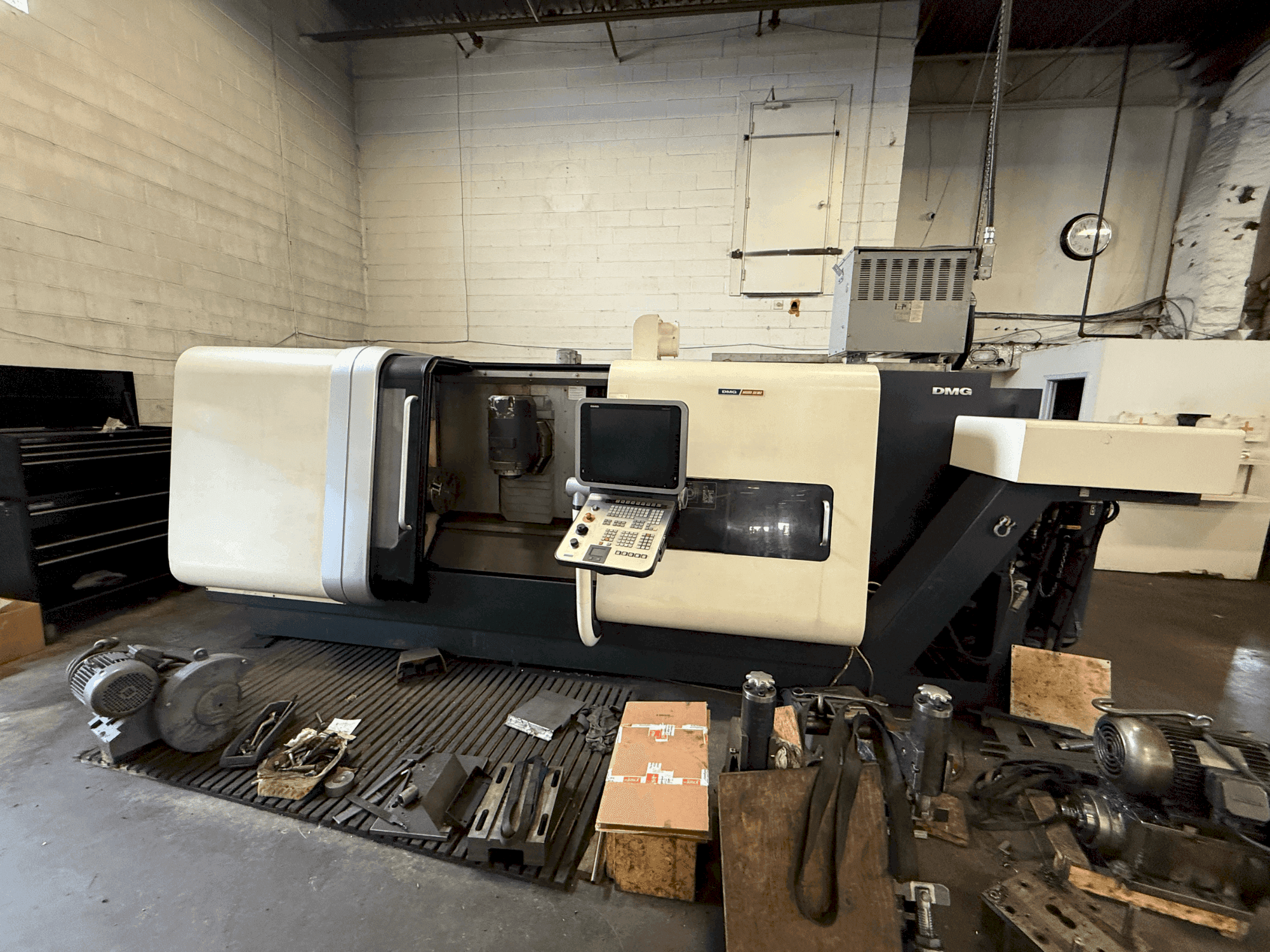

This 5-axis DMG CTX Beta 1250 TC turn-mill centre was manufactured in 2010. It features a swing diameter of 500 mm, max turning diameter of 390 mm, and a turning length of 1250 mm. The spindle supports up to 5000 RPM and 34 kW power, complemented by a 24-position tool magazine. Ideal for complex machining tasks, consider the opportunity to buy this DMG CTX Beta 1250 TC turn-mill centre. Contact us for more information about this machine.

Overview

brand: DMG
year: 2010
MODEL: CTX Beta 1250 TC
application type: Turning
Location: Canada
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DMG CTX Beta 1250 TC

General Data

Measurements width: 2700 mm
Measurements depth: 5700 mm
Measurements height: 2100 mm
Machine weight: 7950 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D solution line with ERGOline control and ShopTurn, operating system Windows

Main drive

Spindle speed range: 5000 1/MIN
Spindle bore: 87 mm
Number of axis: 5

Movement

X-AXIS Rapid traverse: 30 m/min
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Rapid traverse: 30 m/min

Tail Stock

Pinol tool taper: MT 5

Tools

Max weight: 7 kg
Max tool diameter: 80 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Draw bar diameter (internal): 68 mm
- - Spindle diameter (front bearing): 130 mm
- - Max. Torque (100/40%): 280 / 380 nm
- - C-axis speed: 200 rpm
- - C-axis torque: 280 nm
- - Min. Angular resolution: 0. 001°
- - Tool magazine capacity: 24 positions

Extra information

- Linear Axes Upper Slide Travel X1: 450 mm (−10 mm) Upper Slide Travel Y1: ±100 mm Upper Slide Travel Z1: 1300 mm Turning-Milling Spindle (CAPTO C6) Max. Speed: 12000 RPM Power (100/40%): 13 / 22 kW Max. Torque (100/40%): 60 / 100 Nm Min. Angular Resolution: 0.001° Locking Moment: 1000 Nm B-Axis Positioning Angle: ±110° Rotational Speed: 36000°/min Torque (B-Axis): 344 / 614 Nm Min. Angular Resolution: 0.001° Locking Moment (Pneumatic): 2800 Nm Tailstock Traverse: 1200 mm Electrical Requirements Power Supply: 400 VAC, 60 Hz, 3 Ph Connected Load: 72 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
