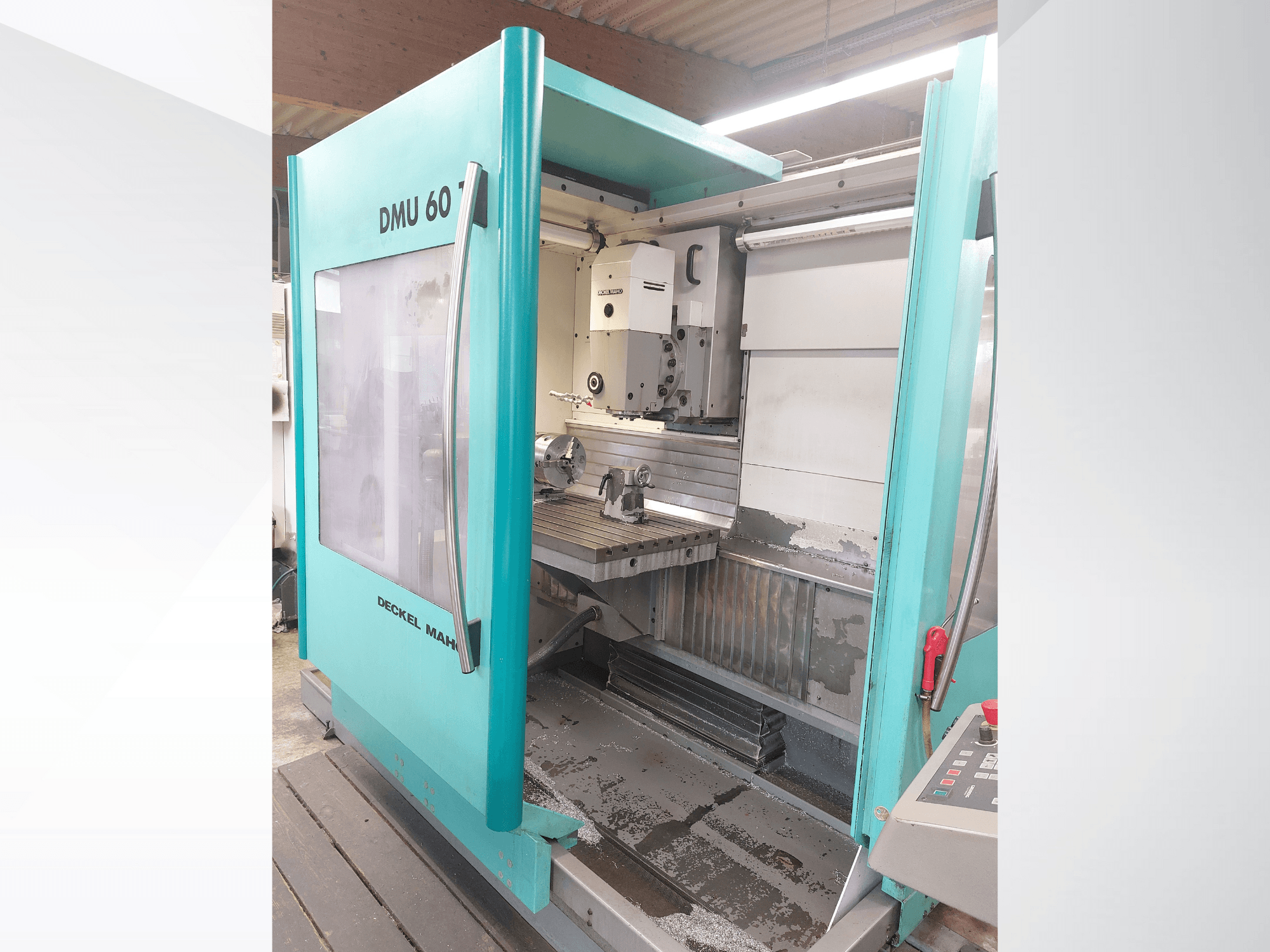

Deckel MAHO DMU 60 CNC machine, front view. Features a visible control panel and milling table with a workpiece setup.
Deckel MAHO DMU 60 CNC machine, front view. Features a visible control panel and milling table with a workpiece setup.

DECKEL MAHO - DMU 60TDE-MIL-DEC-1996-00007

Rs. 1,539,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DECKEL MAHO DMU 60T was manufactured in 1996. It features a 24-position tool changer, an NC rotary table, and a spindle speed up to 6300 rpm. The working areas are 600 mm in length, 525 mm in width, and 500 mm in height. It includes a coolant system with a 150-liter capacity. Consider the opportunity to buy this DECKEL MAHO DMU 60T vertical machining centre. Contact us for more information about this machine.

Overview

  • brand: DECKEL MAHO
  • year: 1996
  • MODEL: DMU 60T
  • production hours: 23198
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: DECKEL MAHO

Technical Information - DECKEL MAHO DMU 60T

Control Unit

  • Brand: DECKEL MAHO
  • Model: Millplus V400

Main drive

  • Number of axis: 3

Control Unit

  • Brand: DECKEL MAHO
  • Model: Millplus V400

Main drive

  • Number of axis: 3

Additional Information

Additional information

Control & Electrical

  • Control: Millplus V400

  • Screen: Color, text in German/English

  • Operating Voltage: 400 V, 50 Hz

  • Control Voltage: 24 V

  • Drive: Digital with overload protection

Spindle & Tooling

  • Spindle: With quill

  • Maximum Spindle Speed: 6,300 rpm (speed range with gearbox: 20–6,300 rpm)

  • Tool Holder: ISO 40 – DIN 69871

  • Pull Stud: DIN 69872 Form A

  • Tool Changer: 24–25 tool positions

Working Area & Movement

  • Longitudinal (X) Travel: 600 mm

  • Cross (Y) Travel: 525 mm

  • Vertical (Z) Travel: 500 mm

  • Rapid Traverse X/Y/Z: 18 m/min

  • Feed Rate: Up to 10,000 mm/min

  • NC Rotary Table: 3-axis on fixed table

Cooling & Accessories

  • Coolant System Capacity: 150 L

  • Full Enclosure: Yes

  • Paint: Gray / Green (NCS)

Documentation

  • 2 sets, German

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
