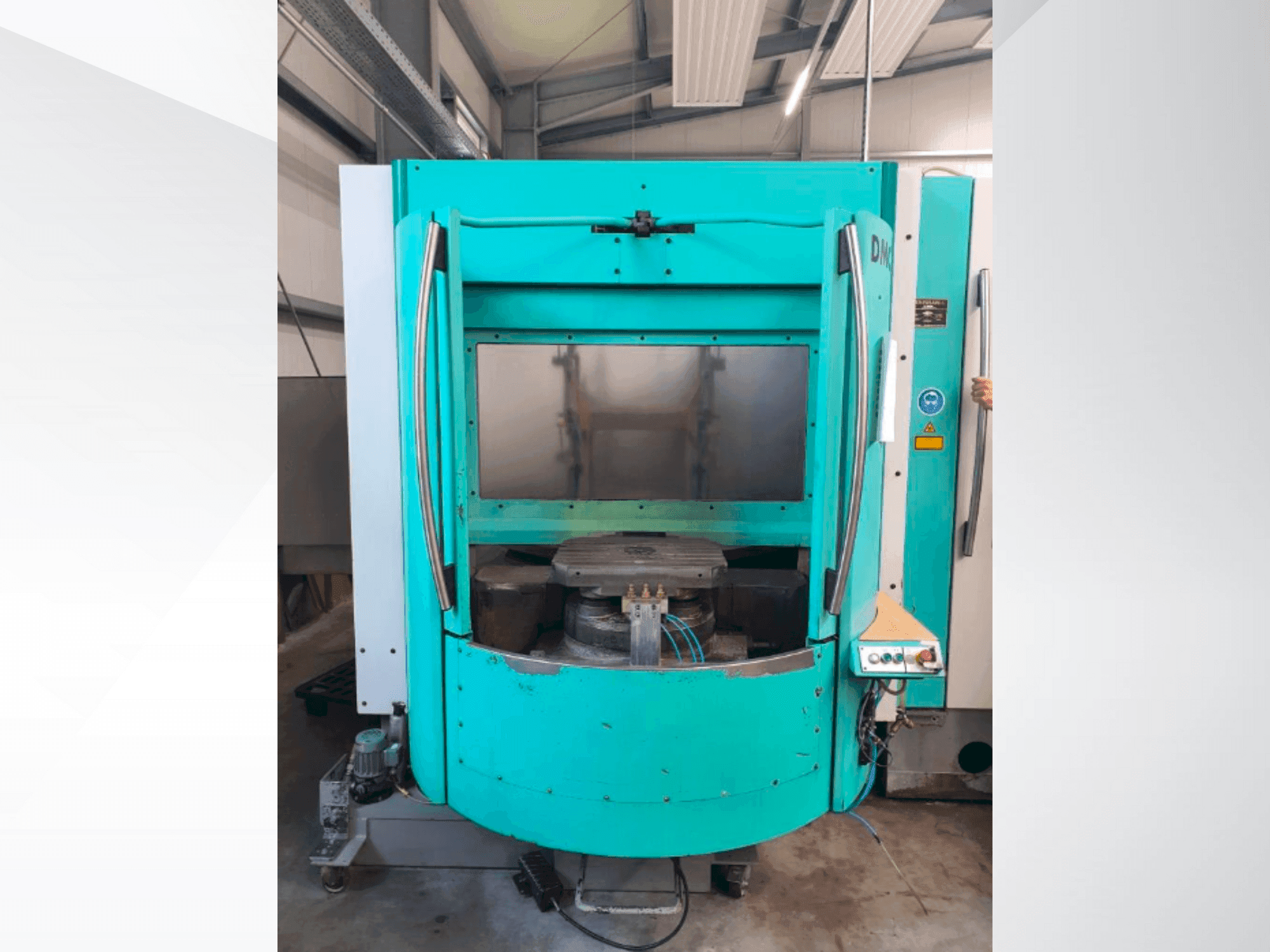

This 4-axis DECKEL MAHO DMC 60H hi-dyn was manufactured in 2000. It features a Siemens Sinumerik 840D control, a spindle speed up to 8000 rpm, and a 90-position tool magazine. The machine includes a pallet changer with 4 storage locations and a rapid traverse rate of 60 m/min. Ideal for high precision horizontal machining. Contact us for more information about this machine.
Overview
- brand: DECKEL MAHO
- year: 2000
- MODEL: DMC 60H hi-dyn
- production hours: 48804
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - DECKEL MAHO DMC 60H hi-dyn
General Data
- Measurements width: 7000 MM
- Measurements depth: 5000 MM
- Machine weight: 3400 KG
Control Unit
- Brand: SIEMENS
- Model: Sinumerik 840D
Main drive
- Spindle speed range: 8000 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 600 MM
- X-AXIS Working Feed: 60000 mm/min
- X-AXIS Rapid traverse: 60 m/min
- Y-AXIS Movement: 560 MM
- Y-AXIS Working Feed: 60000 mm/min
- Y-AXIS Rapid traverse: 60 m/min
- Z-AXIS Movement: 560 MM
- Z-AXIS Working Feed: 60000 mm/min
- Z-AXIS Rapid traverse: 60 m/min
Table
- Table load: 350 kg
Tools
- Slots in storage: 90
- Max weight: 10 kg
- Max tool diameter: 80 mm
- Max tool length: 350 mm
- Type of tool holder: DIN 69871-SK40
Media
- Chip conveyor: Yes
Additional equipment
- - Coolant Type/Content: Emulsion (internal & external) / approx. 1100L
- - Coolant Unit: Knoll with drum filter 30, 40, 50 bar via M-command
- - Machine Accuracy: VDI / DGQ 3441
- - Renishaw Measuring Probe
- - Tool Breakage Detection
- - Drum filter
- - Pallet Sequential Operation
- - Enclosed Work Area Enclosure
- - Network Connection
- - Technical Documents and Layout Plan available
Additional Information
- Technical Machine Benefits:
- - Torque 100% / 40% duty cycle: 124 nm
- - Motor power 100% / 40% duty cycle: 13 kw
- - B-axis (360 x 0. 001°) 60 rpm
- - Table/pallet size (lxw): 6 pallets 500x400 mm
- - Table/pallet type: t-slots according to din 55201
- - Pallet changer / setup station / storage location: yes / yes / yes (4 storage locations)
- - Pallet change / tool change time: 6 seconds / 5 seconds
- - Tool magazine type: chain magazine
- - Total power requirement: 20 kw
- - Hydraulic system motor and pump replaced
- Qualitative Machine Benefits:
- - Some hydraulic and pneumatic hoses replaced
- - Lt module replaced in the control cabinet
- - Drum on the knoll system replaced
- - Regular maintenance performed
- - High operational efficiency with rapid pallet and tool change times
- - Comprehensive maintenance records ensuring reliability and accuracy
- - Equipped with a pallet storage space (4 spaces)
- - Enhanced safety features with accident prevention regulations compliance
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
