Correa L 30/84

Photo Gallery

Correa - L 30/84AT-MIL-COR-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

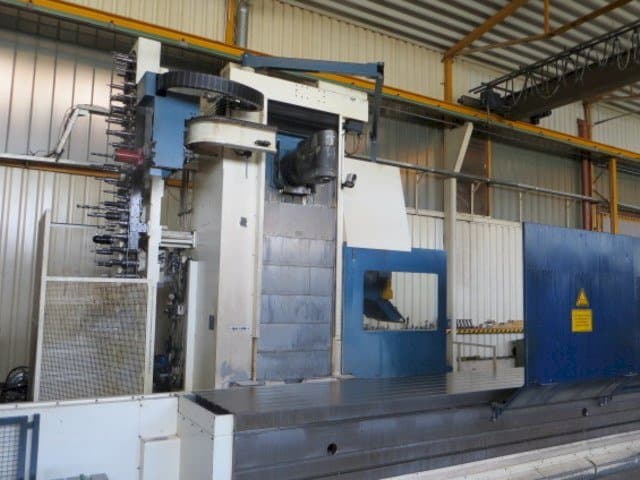

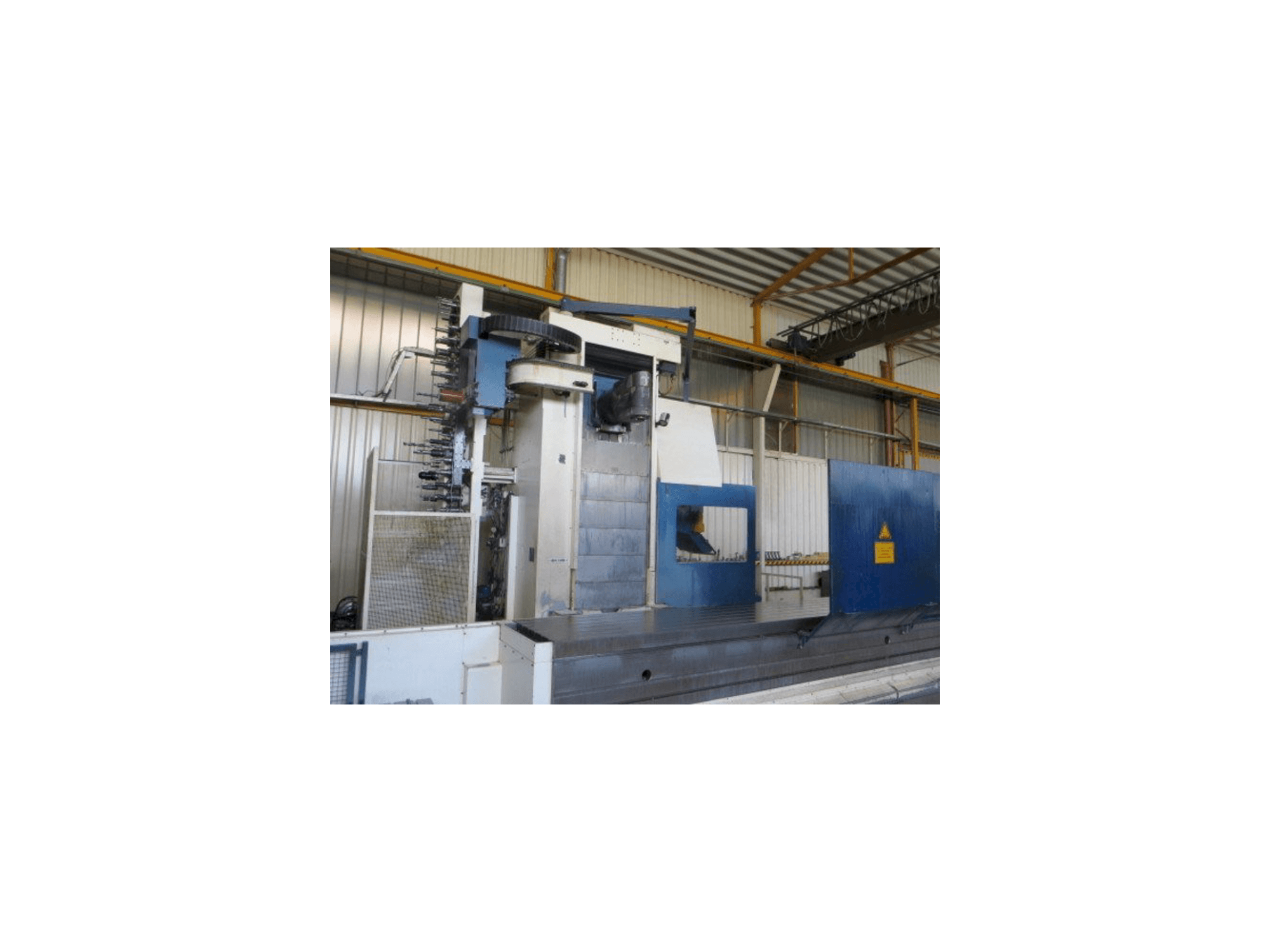

Correa L 30/84 Milling Machine

Show in original language

This Correa L 30/84 Milling Machine was manufactured in the year 2002. It is operated through a Heidenhain TNC 426 control unit. This machine counts with a spindle speed of 20 - 6000 rpm. It stands out due to its big table of 10200 x 1000 mm. It inlcudes a tool changer for 60 tools.

Overview

brand: Correa
year: 2002
MODEL: L 30/84
application type: Milling
Location: Austria
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Correa L 30/84

General Data

Machine weight: 37000 kg

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 - 6000 1/MIN
Spindle motor power: 29,6 kW

Movement

X-AXIS Movement: 8400 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 2000 mm

Table

Outer length: 10200 mm
Outer width: 1000 mm
Table load: 35000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electr. Hand wheel hr 410
- - Tool changer for 60 - tools
- - 3 d touch probe
- - Automaticly universal milling head uad
- - Indexing = 0,1 degree, 3600 position
- - Coolant through spindle
- - Prepared for chip conveyor
- - Feeds stepless = 20 - 5000 mm/min
- - Rapid traverse = 10. 000 mm / min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
