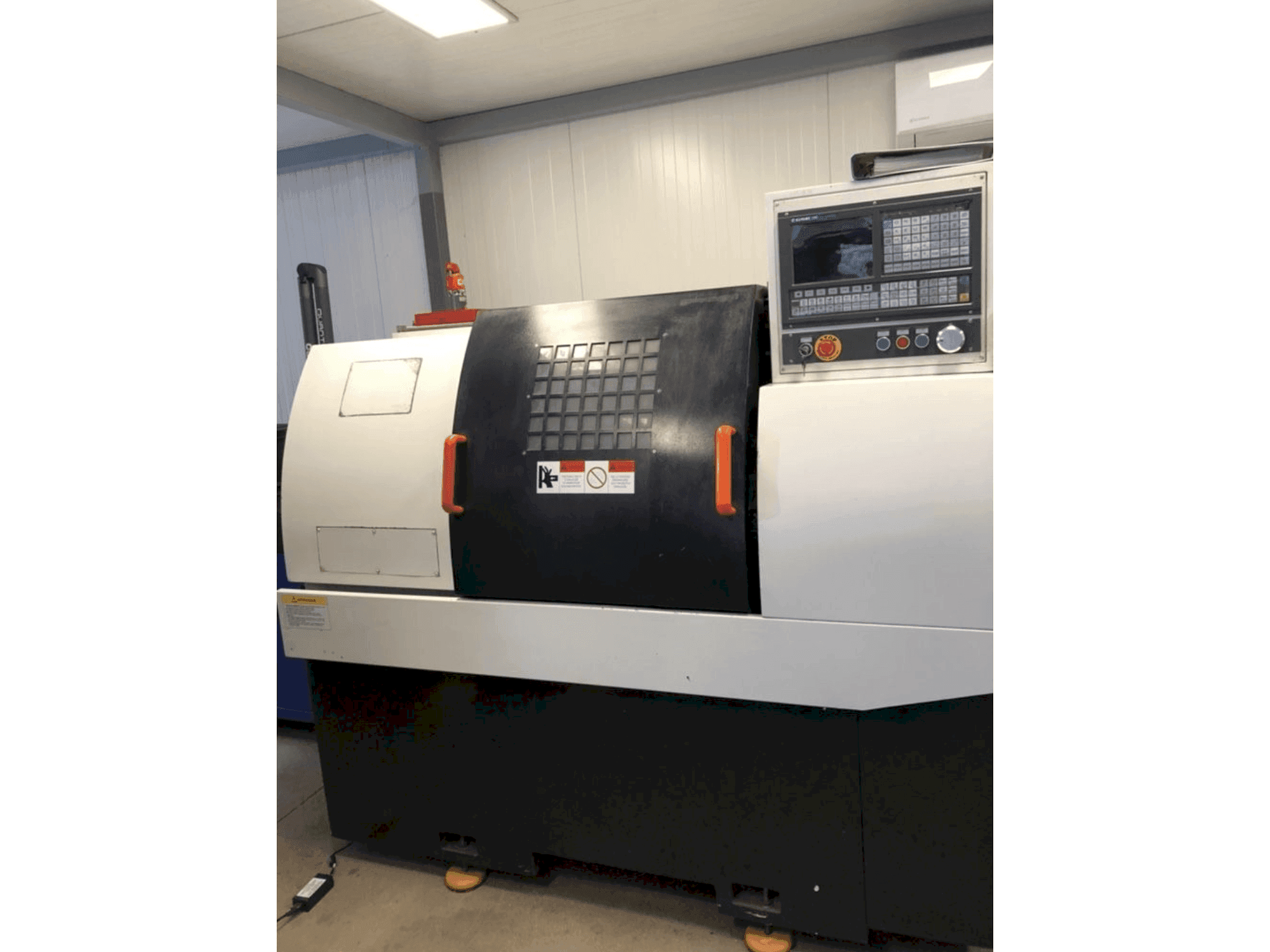

Cormak CK6232L Horizontal Machining center

Show in original language

This Cormak CK6232L Horizontal Machining center was manufactured in the year 2016 in Poland. It is equipped with a GSR 980TD control unit and has 2 axis. The machine has a spindle speed of 300-2400 rpm.

Overview

brand: CORMARK
year: 2016
MODEL: CK6232L
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - CORMARK CK6232L

General Data

Measurements width: 1880 mm
Measurements depth: 1220 mm
Measurements height: 1560 mm
Machine weight: 1700 kg

Main drive

Spindle speed range: 300-2400 1/MIN
Spindle motor power: 5,5 kW
Number of axis: 2

Movement

X-AXIS Movement: 300 mm
Z-AXIS Movement: 800 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The maximum turning diameter over the bed: 420 mm
- - The maximum turning diameter over the cross-slide: 180 mm
- - The jaw spacing of a lathe: 700 mm
- - The spindle bore: 51 mm
- - The type of bed/type of guides: flat guides/box way guides
- - The maximum swing over cross slide: 51 mm
- - Axis x/z speed: 6000/6000 mm/min
- - Servo motor torque x/z: 4/6 nm
- - Type of chuck: tool holder type
- - The number of tools in the holder: 8
Qualitative Machine Benefits:
- - Size of the tool holder: 20 x 20mm
- - Steady rest type: hydraulic
- - Tailstock quill tip: morse 4
- - The dimension of the tailstock quill tip: 60 mm
- - Tailstock quill travel: 90 mm
- - Coolant pomp power: 90w
- - Holder: hydraulic
- - Positioning accuracy x/z: 0,02 mm
- - Repeatability x\z 0,008 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
