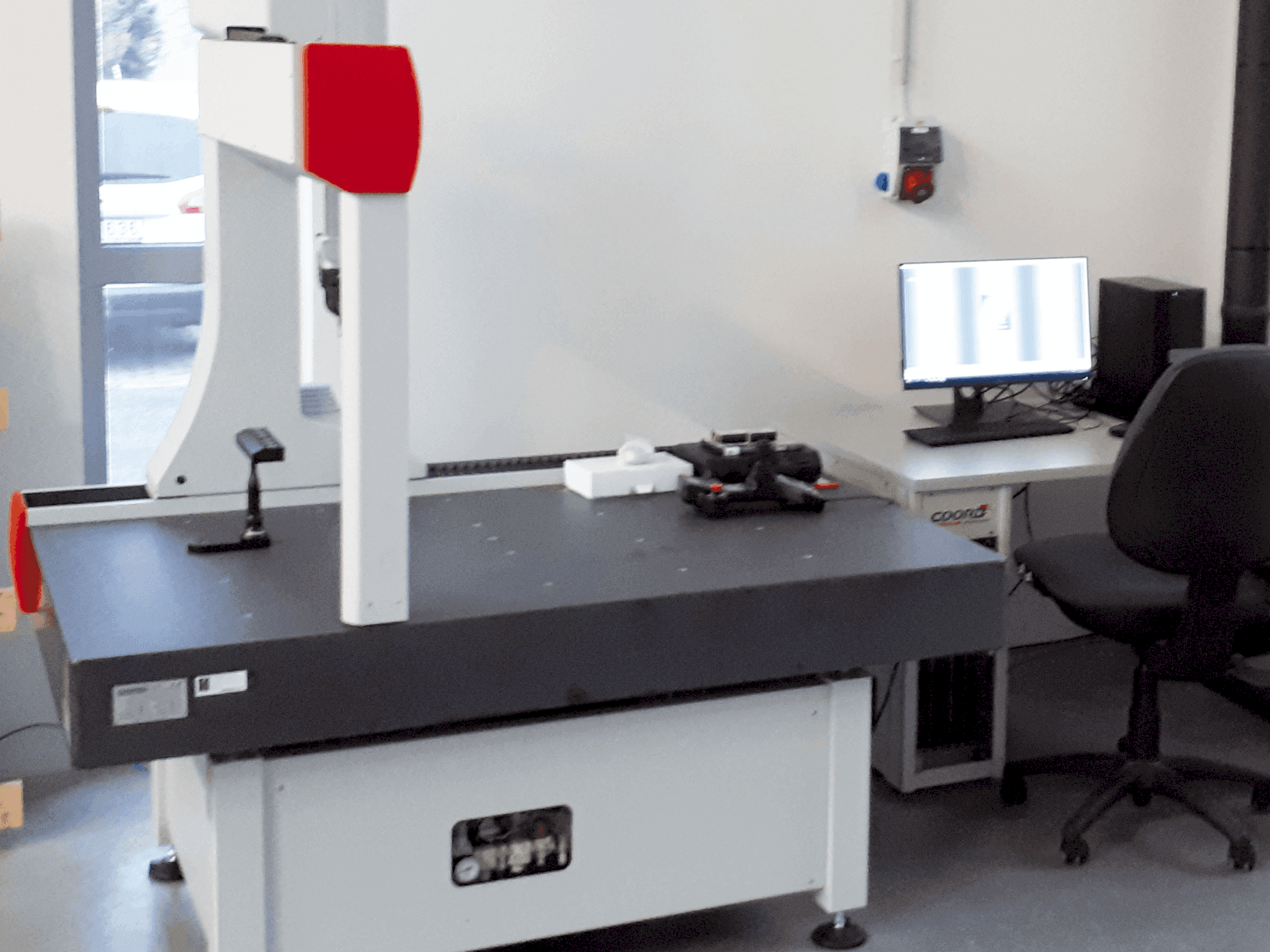

This 3-axis Coord3 ARES NT-L 10.7.5 CNC was manufactured in 2018. It features a high-precision RENISHAW PH20 motorized indexing probe head, RENISHAW UCC controller, and a robust aluminum alloy frame. The machine includes a black granite worktable with threaded holes for secure workpiece fixation. Ideal for detailed 3D measurements with a maximum speed of 500 mm/sec and acceleration of 1700 mm/sec². Contact us for further details regarding this machine.
Overview
- brand: Coord3
- year: 2018
- MODEL: ARES NT-L 10.7.5 CNC
- application type: Measuring
- Location: Hungary
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - Coord3 ARES NT-L 10.7.5 CNC
Movement
- Number of Axes: 3
Additional Information
Additional equipment
- Air-cooled drying system
- CE compliance certification
- Equipped with an air filter and regulator system
- High-precision RSF optical scales and sensors
Machine Benefits
Technical Machine Benefits
- Air cushion bearings for structure support and increased measurement accuracy
- Pneumatic counterbalance for the vertical probe holder
- Automatic fall protection for head in case of air outage
- All geometric and measurement checks executed under stable temperature conditions (20°c) as per iso 10360/2 standards
- Resolution: 0. 0001 mm
- Measurement accuracy: iso 10360/2 mpee = 2. 1 + 3. 0l/1000 μm
- Maximum speed in 3d measurement: 500 mm/sec
- Acceleration in 3d measurement: 1700 mm/sec²
Extra Information
Control Unit RENISHAW UCC controller kit TouchDMIS measurement software DELL AIO computer with 24” LCD TouchScreen monitor Tools RENISHAW PH20 motorized probe head 3 RENISHAW TP20 magnetic probe modules RENISHAW TCR20 probe changer RENISHAW 23-piece stylus kit 25 mm diameter ceramic calibration sphere with certification Mount Position (Assembly) Machine frame made from aluminum alloy Slide surfaces hardened with a special process Black granite worktable with high wear resistance and threaded holes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
