MAHR - MarSurf CD 140HU-MEA-MAH-2022-00001

Rs. 5,361,792
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

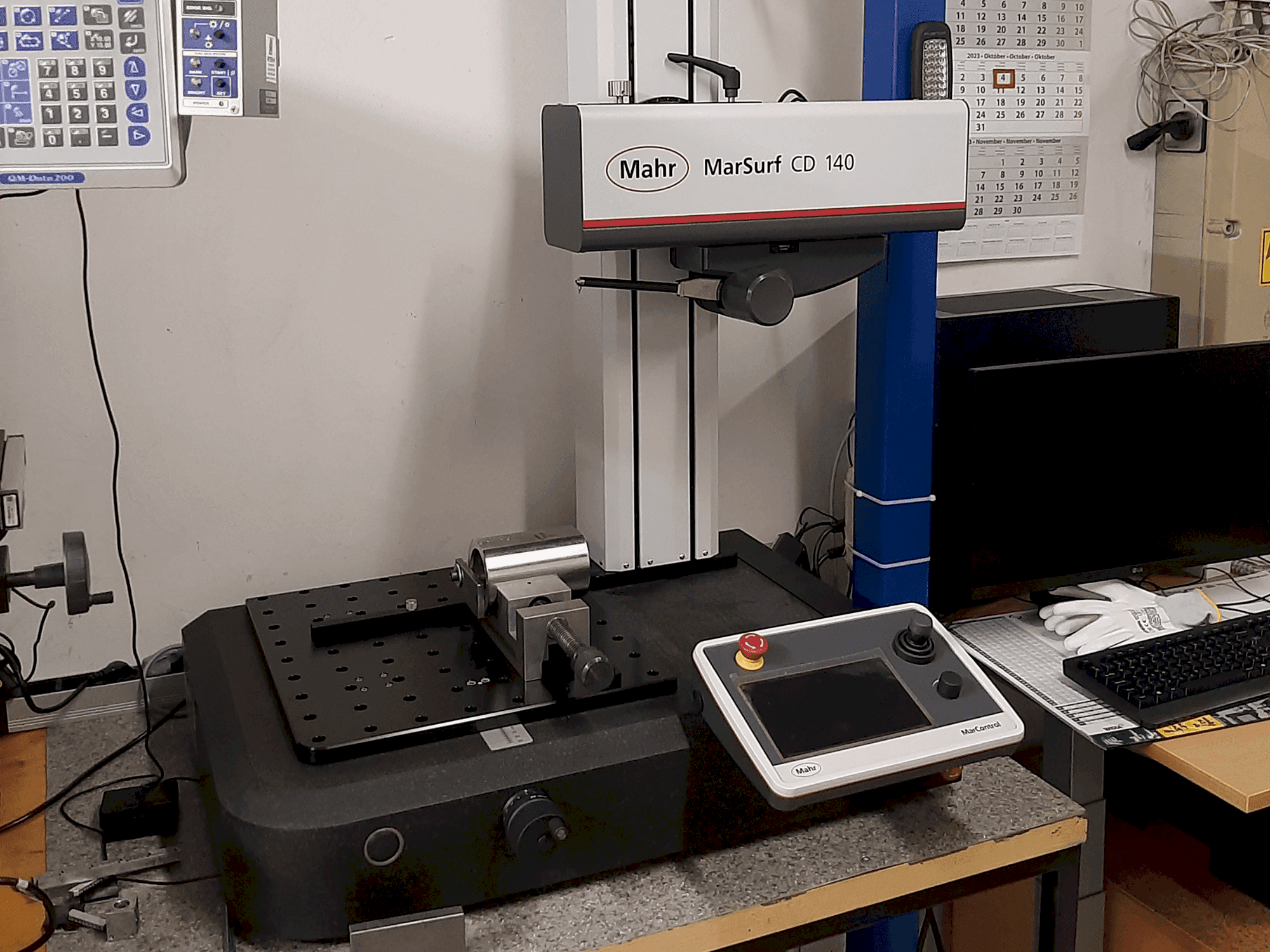

This 3-axis MAHR MarSurf CD 140 CMM machine was manufactured in 2022. It features a contour probe system with a resolution of up to 6 nm and a traversing length from 0.1 mm to 140 mm. The machine supports a workpiece weight of up to 90 kg and offers adjustable measuring forces from 4 mN to 30 mN. If you are looking to get high-quality contour measuring capabilities, consider the MAHR MarSurf CD 140 machine we have for sale. Contact us for more information.

Overview

  • brand: MAHR
  • year: 2022
  • MODEL: MarSurf CD 140
  • application type: Measuring
  • Location: Hungary
  • machine type: Coordinate Measuring Machine (CMM)

Technical Information - MAHR MarSurf CD 140

Dimensions

  • Machine Weight: 200 kg

Movement

  • Number of Axes: 3

Additional Information

Machine Benefits

Technical Machine Benefits

  • X-axis: start of traversing length 0. 1 mm, end of traversing length 140. 0 mm positioning speed x-axis: 0. 02 - 200 mm/s
  • Z-axis: positioning speed z-axis: 0. 02 - 50 mm/s
  • Resolution max. 6 nm (with 210 mm probe arm)
  • Guide deviation 0. 35 μm / 60 mm, 0. 40 μm / 140 mm
  • Measuring force (n) 4 mn to 30 mn, adjustable via software
  • Measuring speed 0. 02 mm/s to 10 mm/s
  • Probe contour probe system
  • Probe arm length 210 mm; 350 mm; 490 mm
  • Measuring range mm 70 mm with probe arm 350 mm long, max. 100 mm with 490 mm long probe arm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
