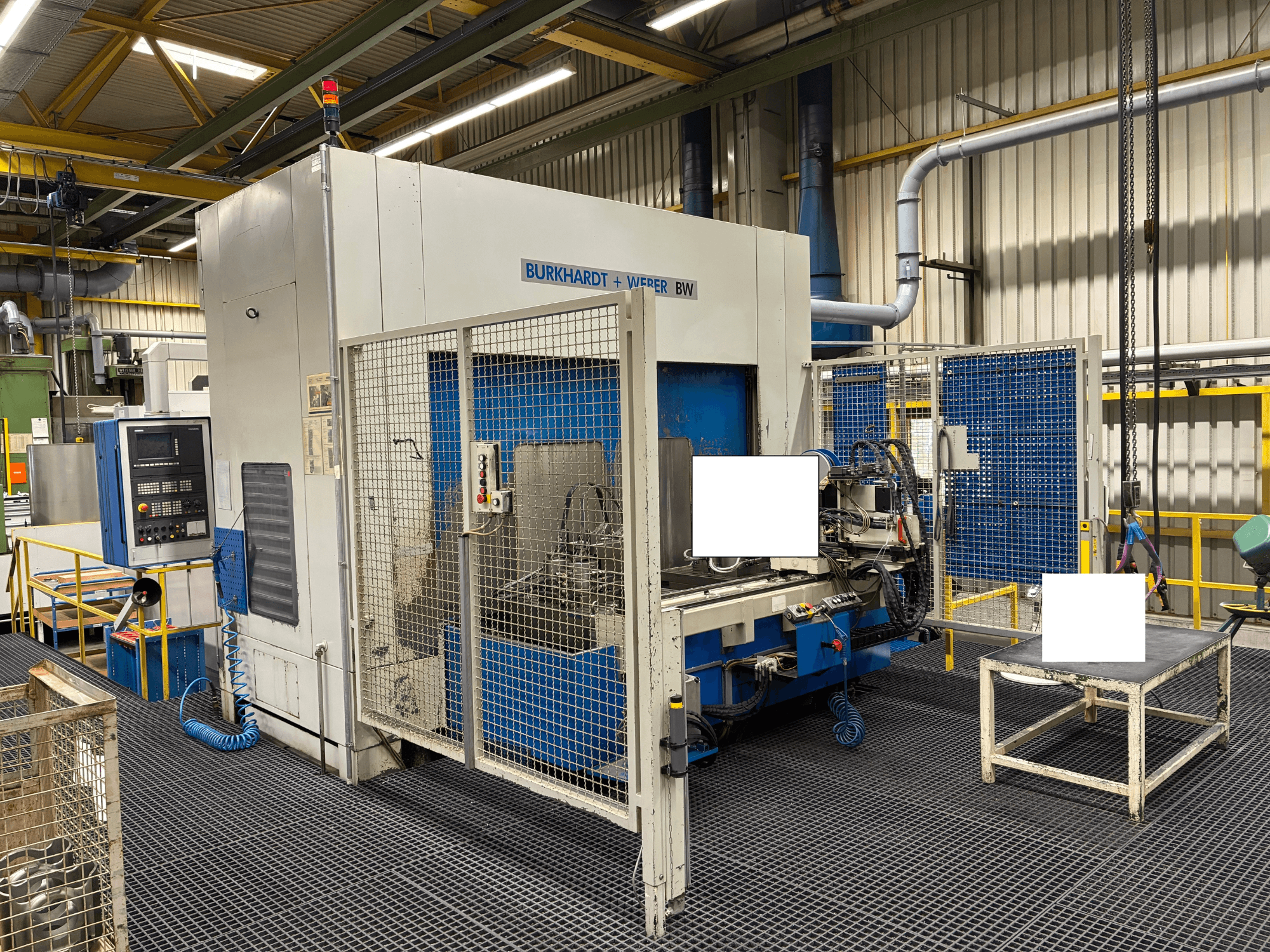

Burkhardt + Weber BW machining center, front view, features control panel and safety enclosure, located in industrial setting.
Burkhardt + Weber BW machining center, front view, features control panel and safety enclosure, located in industrial setting.

Burkhardt-Weber - MC 80DE-MIL-BUR-1998-00001

Rs. 1,131,931
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Burkhardt-Weber MC 80 was manufactured in 1998. It features a spindle speed of 6,000 rpm, a maximum feed rate of 25 m/min, and a tool capacity of 80 with SK50 adapters. The CNC Siemens Sinumerik 840C control system enhances its precision. Consider the opportunity to buy this Burkhardt-Weber MC 80 horizontal machining centre. Contact us for more information.

Overview

  • brand: Burkhardt-Weber
  • year: 1998
  • MODEL: MC 80
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • control unit brand: SIEMENS

Technical Information - Burkhardt-Weber MC 80

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik 840C

Movement

  • X-axis Travel: 1200 mm
  • Y-axis Travel: 800 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Spindle Speed: 6000 RPM

Additional Information

  • Max. feed: 25 m/min

  • Tool capacity: 80

  • Control system: Siemens Sinumerik 840C (CNC)

  • Rotary table:

    • B-axis: 360° with 0.001° indexing

  • Number of pallets: 2

  • V-axis (cross slide)

Additional equipment (robots, automation, chip conveyor, bar feeder, etc.)

  • Link chain for counterweight

  • Chain lock for counterweight

  • Drive pinion

  • Drive pinion D119 x 37 x 38

  • Drive pinion D177 x 45 x 88

  • Tool change gripper

  • Clamping bolt

  • Service motor

  • Motor (x3)

  • Motor hydraulics

  • Z-axis telescopic cover 800 mm

  • Z-axis feed screw spare parts package

  • X-axis telescopic cover

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
